SELECT A DIAGRAM

01 - Cover Sheet


02 - Burner Box And Grill Parts

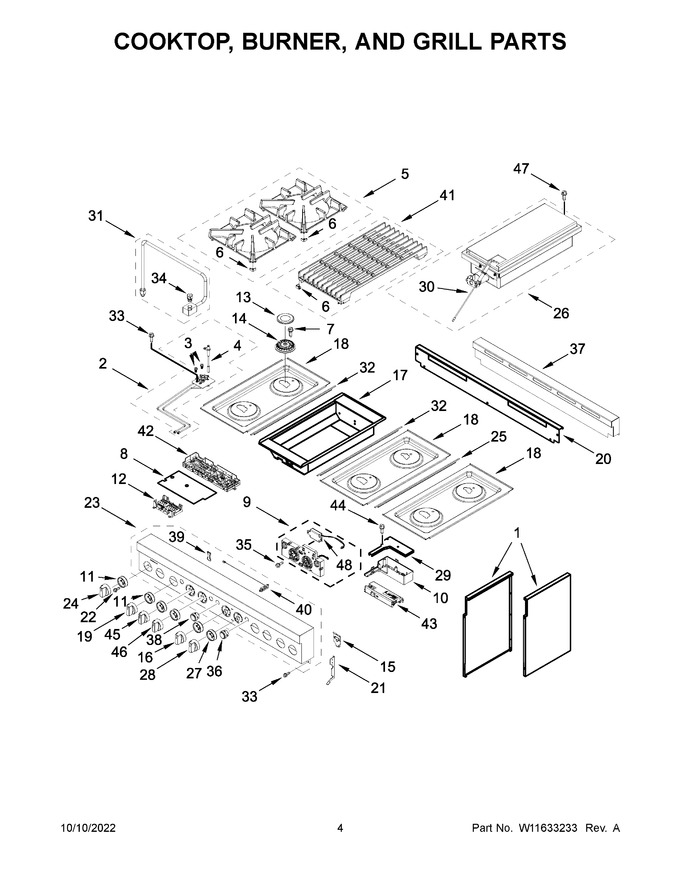

03 - Cooktop, Burner, And Grill Parts


04 - 48-in Chassis Parts


05 - 30-in Oven Parts


06 - 18-in Oven Parts


07 - Venting Parts


08 - 30-in Oven Door Parts


09 - 18-in Oven Door Parts


10 - 30-in Internal Oven Parts


11 - 18-in Internal Oven Parts


12 - Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W11321067		Panel, Cabinet Side (left)   (Replaces: W11111429)				$ 439.37
2	W11319741		Assembly, Orifice Holder (left Front)   (Replaces: W10892807)				$ 121.66
3	W11643164		Orifice, Main (17.4k) (left Front, Right Front)   (Replaces: W10892422)			Immediately	$ 60.97
4	W11573760		Igniter (left Front, Right Front)   (Replaces: W11238757)			Immediately	$ 23.48
5	W11515370		Assembly, Grate (black (set Of 2))   (Replaces: W11291176)				$ 394.33
6	W11550692		Bumper, Grate   (Replaces: W11042504)			Immediately	$ 12.57
7	W11766499		Screw   (Replaces: W11323260)			Immediately	$ 12.72
8	W11320149		Barrier, Appliance Manager   (Replaces: W11281269)				$ 130.57
9	W11492275		Interface, User   (Replaces: W11436326)			Immediately	$ 573.94
10	W11320411		Cover, Wifi Outer   (Replaces: W11205795)		Appelez-nous	-
11	W11316873		Brass (for 4 Cooktop Burners And Grill)   (Replaces: W11090283)			Immediately	$ 49.29
12	W11355250		Manager, Appliance (expansion)   (Replaces: W10871065)				$ 451.62
13	W11319224		Cap, Burner (black (set Of 6))   (Replaces: W11121392)			Immediately	$ 252.20
14	W11319683		Spreader, Flame (high) (all But Right Center Rear)   (Replaces: W10891987)			Immediately	$ 250.69
15	W11318207		Spring Clip, Range   (Replaces: W11036559)				$ 12.88
16	W11574370		Knob, Oven Mode (stainless (for 30 In Oven))   (Replaces: W11496094)				$ 93.11
17	W11328566		Assembly, Grill Box   (Replaces: W11174429)		Appelez-nous	-
18	W11316696		Panel, Cooktop (black (left))   (Replaces: W10803515)				$ 513.23
19	W11620700		Knob, Grill (stainless)   (Replaces: W11496090)		Appelez-nous	-
20	W10323252		Trim, Island Insert				$ 207.83
21	W10130760		Bracket, Moving Console (left)				$ 75.94
22	W11509770		Screw   (Replaces: W11328357)				$ 14.23
23	W11444409		Panel, Console   (Replaces: W10878258)				$ 921.44
24	W11574368		Knob, Burner (for 4 Cooktop Burners) (stainless)   (Replaces: W11496088)			Immediately	$ 92.43
25	W10271524		Trim, T-strip (black)				$ 212.34
26	W11328568		Assembly, Grill Burner   (Replaces: W11120976)				$ 848.94
27	W11317499		Bezel, Oven (for 4 Oven Knobs) (stainless)   (Replaces: W10914998)				$ 28.02
28	W11574369		Knob, Oven Temperature (stainless (for 30 In Oven))   (Replaces: W11496091)				$ 118.01
29	W11320410		Cover, Wifi Inner   (Replaces: W11205794)		Appelez-nous	-
30	W11328571		Electrode, Grill   (Replaces: W11174598)		Appelez-nous	-
31	W11517686		Grill Orifice Holder Assembly (left Center)   (Replaces: W11419278)		Appelez-nous	-
32	W10291193		Trim, L-strip		Appelez-nous	-
33	7101P42660		Screw		Appelez-nous	-
34	W11419282		Orifice, Grill (18k) (left Center)		Appelez-nous	-
35	WP3400814		Screw   (Replaces: 3400814)				$ 4.62
36	W11319196		Button Assembly, Oven Start   (Replaces: W11090650)				$ 23.67
37	W11516014		Island Trim   (Replaces: W11476244)				$ 443.60
38	W11318857		Button Assembly, Oven Light   (Replaces: W11090651)				$ 23.81
39	W11318856		Assembly, Light Pipe   (Replaces: W10896369)				$ 109.35
40	W11318855		Antenna, Wifi   (Replaces: W11130078)				$ 228.92
41	W11515378		Grill Grate Assembly   (Replaces: W11291177)		Appelez-nous	-
42	W11620696		Manager, Powermax Appliance   (Replaces: W11543349)				$ 474.72
43	W11234290		Assembly, Wifi Module   (Replaces: W11110768)				$ 179.89
44	7101P62460		Screw		Appelez-nous	-
45	W11591511		Knob, Oven Mode (stainless (for 18 In Oven))   (Replaces: W11496095)				$ 113.64
46	W11620695		Knob, Oven Temperature (stainless (for 18 In Oven))   (Replaces: W11496096)		Appelez-nous	-
47	WP3196557		Screw   (Replaces: 3196537)			Immediately	$ 7.95
48	W11123146		Assembly, Speaker   (Replaces: W10568405)				$ 80.93
14A	W11319673		Spreader, Flame (low) (right Center Rear)   (Replaces: W10892022)			Immediately	$ 229.46
18A	W11316697		Panel, Cooktop (black (right Center))   (Replaces: W10803519)				$ 502.01
18B	W11328972		Panel, Cooktop (black (right))   (Replaces: W10804373)				$ 491.83
1A	W11320596		Panel, Cabinet Side (right)   (Replaces: W11111428)				$ 450.31
21A	W10130759		Bracket, Moving Console (right)				$ 75.94
2A	W11319746		Assembly, Orifice Holder (left Rear)   (Replaces: W10892495)				$ 123.91
2B	W11327979		Assembly, Orifice Holder (right Center Front)   (Replaces: W10892471)				$ 125.69
2C	W11327980		Assembly, Orifice Holder (right Center Rear)   (Replaces: W10892724)		Appelez-nous	-
2D	W11327981		Assembly, Orifice Holder (right Front)   (Replaces: W10892726)		Appelez-nous	-
2E	W11327982		Assembly, Orifice Holder (right Rear)   (Replaces: W10892474)		Appelez-nous	-
3A	W10892418		Orifice, Main (15.4k) (left Rear)			Immediately	$ 103.03
3B	W10892440		Orifice, Main (7.2k) (right Center Rear)				$ 99.86
3C	W11661909		Orifice, Simmer (2.6k) (left Front, Right Front)   (Replaces: W10892435)			Immediately	$ 74.14
3D	W10892429		Orifice, Simmer (2.0k) (right Center Rear)				$ 99.86
4A	W11238756		Igniter (right Center Rear)			Immediately	$ 67.96

    View Diagram in Separate Window       Print Part List
