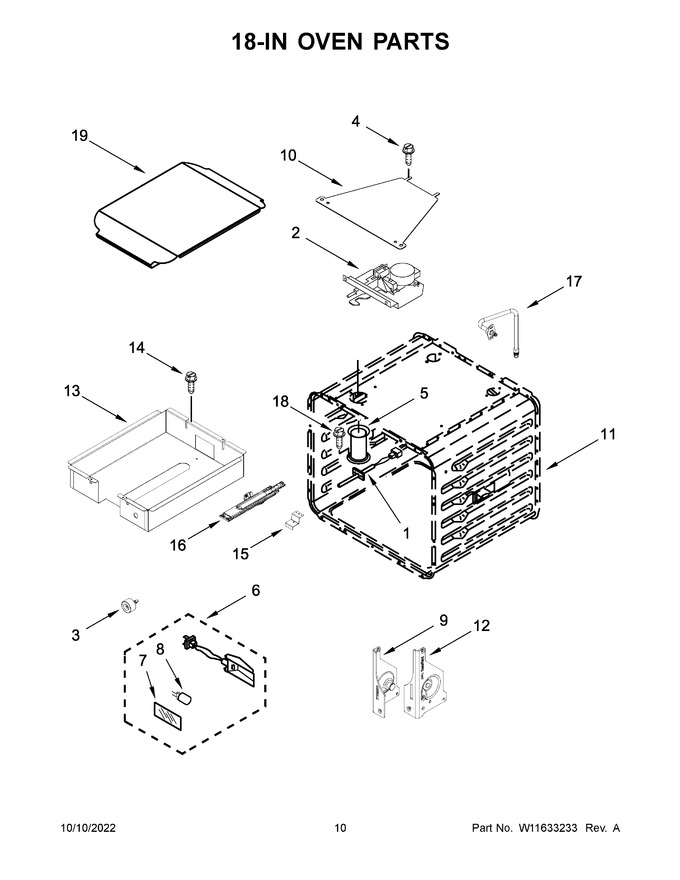

06 - 18-in Oven Parts


07 - Venting Parts


08 - 30-in Oven Door Parts


09 - 18-in Oven Door Parts


10 - 30-in Internal Oven Parts


11 - 18-in Internal Oven Parts


12 - Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10859573		Probe, Sensor   (Replaces: W10622170)			Immediately	$ 133.83
2	W11029221		Latch, Motorized   (Replaces: W10830016)			Immediately	$ 327.65
3	WPW10351278		Bumper And Screw   (Replaces: W10351278)				$ 11.01
4	7101P42660		Screw		Appelez-nous	-
5	W10145743		Tube, Vent		Appelez-nous	-
6	W11233684		Assembly, Oven Light   (Replaces: W11223932)				$ 111.33
7	W10169756		Lens, Light				$ 42.19
8	WPW10169757		Bulb, Light   (Replaces: W10169757)			Immediately	$ 47.38
9	W11096294		Receiver, Hinge (left)		Appelez-nous	-
10	W10160858		Cover, Latch				$ 76.94
11	NP		Cabinet (not A Servicable Part)		Appelez-nous	-
12	W11096293		Receiver, Hinge (right)		Appelez-nous	-
13	W10145651		Support, Bake Pan		Appelez-nous	-
14	WP12992902		Screw   (Replaces: 12992902)				$ 11.91
15	W10308041		Bracket, Bake Burner (18 In Cavity)		Appelez-nous	-
16	W10878505		Burner, Bake W/o Spreader			Immediately	$ 221.07
17	W10145706		Tube, Bake				$ 202.86
18	W11233072		Screw   (Replaces: 3196176)			Immediately	$ 14.72
19	W11504377		Cover, Bake   (Replaces: W11211936)				$ 218.40
NI	W11688581		Insulation, Bottom   (Replaces: W10299355)		Appelez-nous	-
NI	WP3400968		Nut   (Replaces: 3400968)			Immediately	$ 8.36
NI	W11688776		Insulation, Back, 18 In   (Replaces: W10299353)		Appelez-nous	-
NI	NP		Cabinet (not A Servicable Part)		Appelez-nous	-
NI	W11688744		Insulation, Wrap, 18 In   (Replaces: W10282820)		Appelez-nous	-
