View Diagram in Separate Window
Print Part List
SELECT A DIAGRAM
01 - Cover Sheet
02 - Cooktop Parts

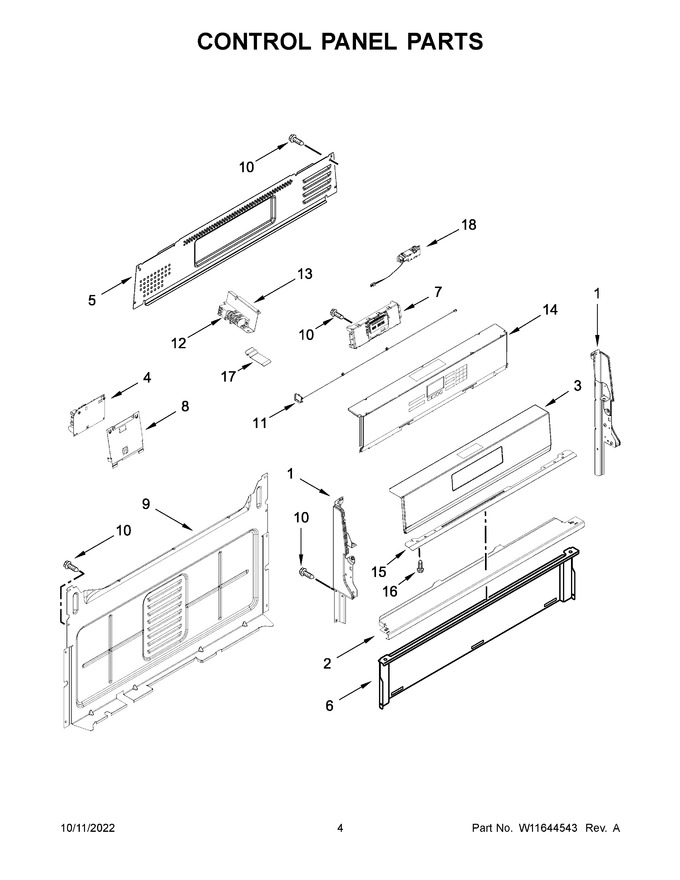

03 - Control Panel Parts
04 - Chassis Parts
05 - Manifold Parts
06 - Door Parts
07 - Drawer Parts
08 - Optional Parts (not Included)
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W11213290 | Endcap (black (left)) |
|
$ 347.77 | |||||
| 2 | W10516123 | Bracket, Console Mounting |
|
- | |||||
| 3 | W11165617 | Console (stainless) (Replaces: W10869991) |
|
$ 539.30 | |||||
| 4 | W11162730 | Module, Spark Dsi (Replaces: W10920631) |
|
Immediately | $ 218.43 | ||||
| 5 | W10198745 | Cover, Upper |
|
$ 128.90 | |||||
| 6 | W10192841 | Shield, Heat |
|
$ 106.69 | |||||
| 7 | W11620581 | Control, Electronic (maxwell) (Replaces: W11541197) |
|
- | |||||
| 8 | W10762981 | Bracket, Mounting |
|
$ 76.42 | |||||
| 9 | W10184251 | Cover, Back |
|
- | |||||
| 10 | W11233072 | Screw (Replaces: 3196178) |
|
Immediately | $ 14.72 | ||||
| 11 | W11594266 | Antenna (Replaces: W11516201) |
|
- | |||||
| 12 | WPW10475149 | Module, Spark (Replaces: W10475149) |
|
Immediately | $ 179.05 | ||||
| 13 | W10901176 | Bracket, Ignitor (Replaces: W10797001) |
|
- | |||||
| 14 | W11280096 | Bracket, Control (includes Overlay) (black) (Replaces: W10856354) |
|
$ 755.46 | |||||
| 15 | W11443964 | Bracket, Eye Brow (black) |
|
$ 222.43 | |||||
| 16 | WP3196557 | Screw (Replaces: 3196169) |
|
Immediately | $ 7.95 | ||||
| 17 | WPW10551614 | Spreader, Clip-spring (Replaces: W10551614) |
|
$ 13.73 | |||||
| 18 | W11165979 | Assembly, Wifi (Replaces: W10888670) |
|
$ 166.61 | |||||
| 1A | W11213292 | Endcap (black (right)) |
|
$ 71.65 | |||||
| 3A | W11165616 | Console (black Stainless) (Replaces: W10881625) |
|
$ 539.33 |
