SELECT A DIAGRAM

01 - Cover Sheet


02 - Cooktop Parts


03 - Control Panel Parts


04 - Chassis Parts


05 - Manifold Parts


06 - Door Parts


07 - Drawer Parts


08 - Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart

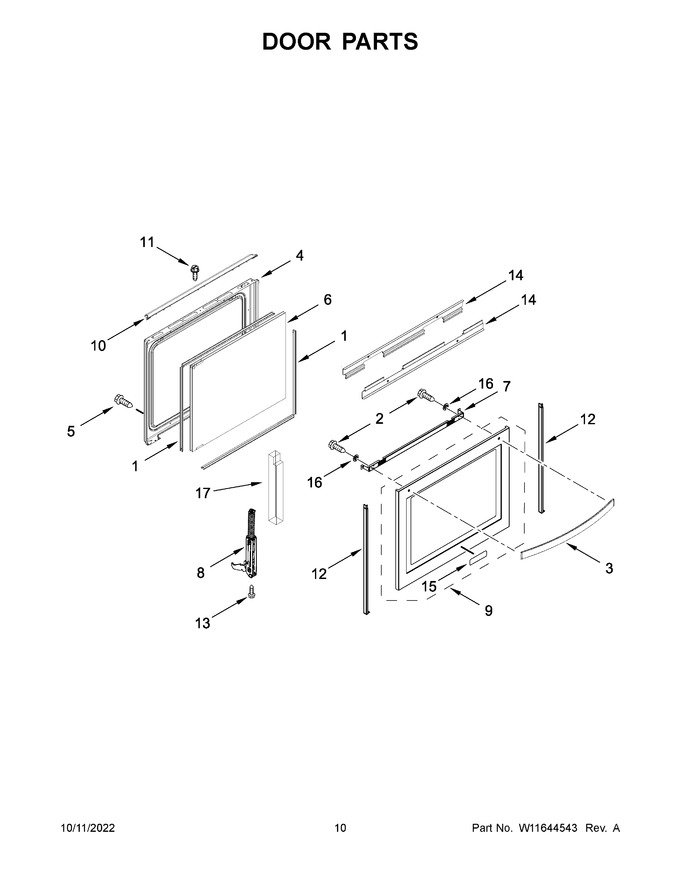

1	W11673273		Glass Spacer   (Replaces: W11379948)			Immediately	$ 31.04
2	WP8533988		Screw   (Replaces: W11091878)			Immediately	$ 8.78
3	W11107877		Handle, Door (stainless)   (Replaces: W10918786)			Immediately	$ 264.75
4	W10902192		Liner, Door   (Replaces: W10826568)				$ 335.04
5	WPW10031790		Screw   (Replaces: W10031790)			Immediately	$ 8.74
6	W11339500		Glass, Inner   (Replaces: W11223202)				$ 171.17
7	W10541911		Bracket, Glass Upper Handle			Immediately	$ 39.92
8	W11162113		Hinge, Door (active)   (Replaces: W10885519)			Immediately	$ 123.92
9	W11106273		Glass Assembly, Outer Door (stainless)   (Replaces: W10864214)				$ 517.73
10	W11182113		Vent, Trim (black)   (Replaces: W10887939)				$ 135.70
11	WP355214		Screw   (Replaces: W10327235)			Immediately	$ 8.80
12	W11744483		Rail, Vertical Support   (Replaces: W10813139)			Immediately	$ 76.19
13	W10777162		Screw   (Replaces: W10031780)			Immediately	$ 8.26
14	W10813140		Rail, Horizontal Support			Immediately	$ 177.21
15	W11178521		Badge   (Replaces: W10884775)			Immediately	$ 63.13
16	W11676355		Washer, Door   (Replaces: W10319024)			Immediately	$ 14.81
17	W11025151		Insulation, Door   (Replaces: W10766562)				$ 220.55
3A	W11110500		Handle, Door (black Stainless)   (Replaces: W10903342)				$ 195.52
9A	W11107401		Glass Assembly, Outer Door (black Stainless)   (Replaces: W10888239)				$ 612.73

    View Diagram in Separate Window       Print Part List
