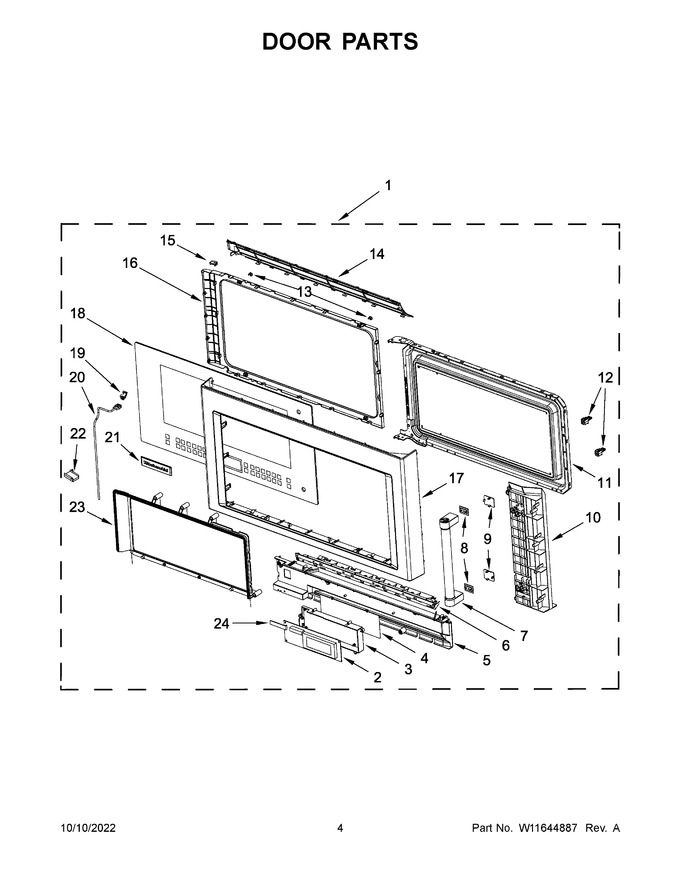

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W11643139		Door, Complete (stainless)			Immediately	$ 679.48
2	W11582286		Pcba, User Interface		Appelez-nous	-
3	W10770970		Tech Sheet		Appelez-nous	-
4	W10540298		Cover, Control (black)		Appelez-nous	-
5	W10617743		Duct, Cooling Front		Appelez-nous	-
6	W10476546		Background, Control		Appelez-nous	-
7	W10604264		Pcba, Appliance Control Unit				$ 293.41
8	W11590575		Seal, Control   (Replaces: W10540736)				$ 23.59
9	W10478657		Cover, Screw (black)			Immediately	$ 22.46
10	W11699920		Bracket, Outer Door (black)   (Replaces: W10734943)				$ 86.18
11	W11045518		Body, Door (with Glass)   (Replaces: W10891969)				$ 247.05
12	W10740455		Hooks, Door			Immediately	$ 56.20
13	W10542546		Cover, Screw				$ 88.82
14	W10476550		Frame, Back Decorating (black)		Appelez-nous	-
15	W10643448		Stopper, Door				$ 23.06
16	W10897612		Frame, Inner				$ 149.03
17	W11437820		Assembly, Outer Door (stainless)			Immediately	$ 460.30
18	W11602974		Glass, Door				$ 274.81
19	W10770972		Holder, Door Cable		Appelez-nous	-
20	W11320318		Cable, Door User Interface				$ 153.17
21	W10909682		Nameplate   (Replaces: W10754513)			Immediately	$ 76.20
22	W10770971		Bracket, Door Cable		Appelez-nous	-
23	W10478647		Plate, Steam Protection				$ 96.76
24	W10509362		Cable, Touch Sensor		Appelez-nous	-
17A	W10866701		Assembly, Outer Door (black Stainless)		Appelez-nous	-
1A	W11643171		Door, Complete (black Stainless)				$ 782.63
