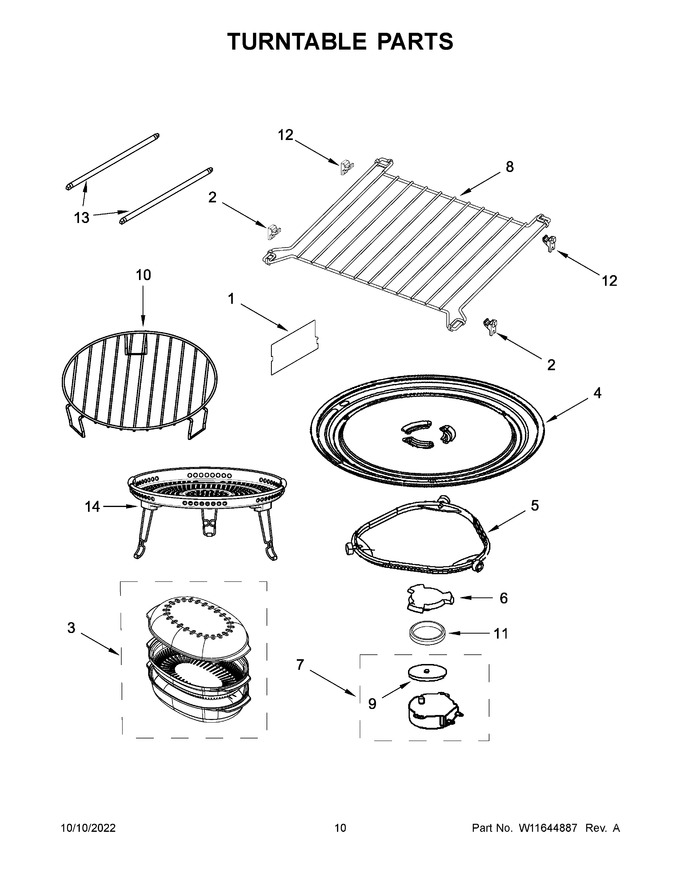

06 - Turntable Parts
07 - Cabinet And Installation Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W11662373 | Cover, Waveguide (Replaces: W11361167) |
|
$ 30.78 | |||||
| 2 | W10740485 | Hook, Microwave (left Front And Right Front) |
|
$ 22.37 | |||||
| 3 | W10660052 | Steamer (Replaces: W10857799) |
|
Immediately | $ 30.02 | ||||
| 4 | W11402532 | Turntable (Replaces: W11358813) |
|
Immediately | $ 65.40 | ||||
| 5 | W10679313 | Ring, Turntable |
|
$ 97.44 | |||||
| 6 | W10337248 | Driver, Turntable |
|
Immediately | $ 7.83 | ||||
| 7 | WPW10466420 | Motor, Turntable (Replaces: W10466420) |
|
Immediately | $ 45.71 | ||||
| 8 | W10249618 | Rack, Microwave |
|
$ 27.74 | |||||
| 9 | 8184109 | Seal, Waterproof |
|
$ 7.30 | |||||
| 10 | W10440082 | Rack, Convection |
|
$ 16.52 | |||||
| 11 | W10568148 | Seal, Turntable Block |
|
Immediately | $ 32.07 | ||||
| 12 | W10573936 | Hook, Microwave (left Rear & Right Rear) |
|
$ 29.70 | |||||
| 13 | W10510202 | Heater, Quartz Grill |
|
Immediately | $ 41.31 | ||||
| 14 | W11646741 | Basket, Air Fry (Replaces: W11613390) |
|
$ 86.43 |
