01 - Cover Sheet
02 - Cabinet Parts
03 - Liner Parts

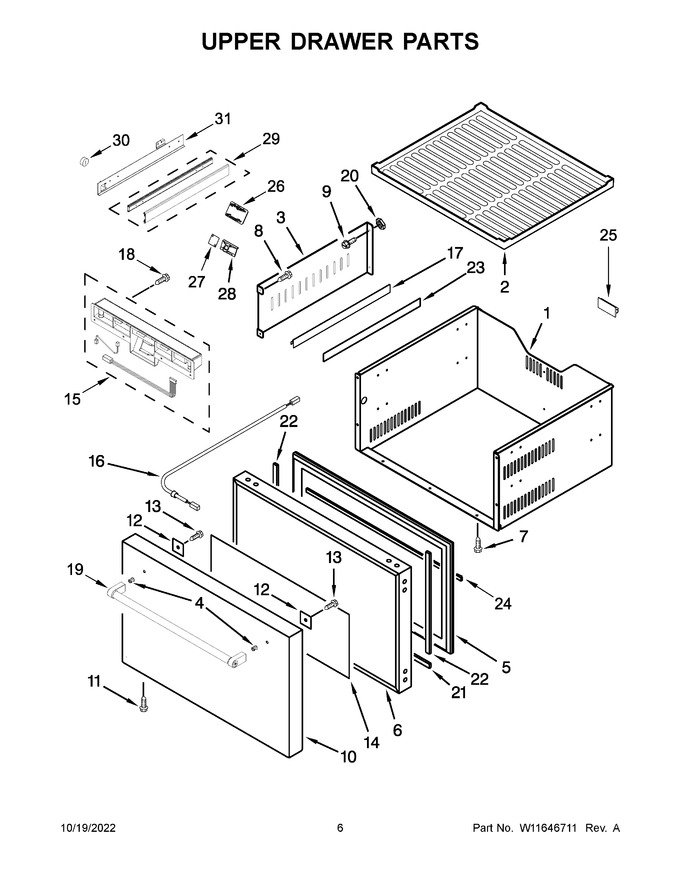

04 - Upper Drawer Parts
05 - Lower Drawer Parts
06 - Unit Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W11649784 | Drawer Box Assembly, Upper (Replaces: W11646492) |
|
- | |||||
| 2 | W11568835 | Mat, Upper Drawer |
|
- | |||||
| 3 | W11646438 | Drawer Partition |
|
- | |||||
| 4 | W11179356 | Stud, Mounting (Replaces: W10772902) |
|
$ 16.62 | |||||
| 5 | WPW10622006 | Gasket (Replaces: W10622006) |
|
Immediately | $ 183.09 | ||||
| 6 | W10789531 | Top Foamed Door Assembly |
|
$ 610.21 | |||||
| 7 | W10319183 | Screw |
|
- | |||||
| 8 | W10204809 | Screw |
|
- | |||||
| 9 | W10204810 | Screw |
|
- | |||||
| 10 | W10796876 | Wrap, Stainless |
|
$ 488.19 | |||||
| 11 | W11051564 | Screw (Replaces: W10796877) |
|
$ 15.53 | |||||
| 12 | W11263339 | Plate, Door Handle (Replaces: W10622815) |
|
$ 17.39 | |||||
| 13 | W10859467 | Screw, Handle (Replaces: W10204866) |
|
$ 80.23 | |||||
| 14 | W10204867 | Wrap Spacer |
|
- | |||||
| 15 | W11646471 | Control Panel Assembly |
|
$ 629.51 | |||||
| 16 | W10789534 | Harness, Display To Indicator |
|
Immediately | $ 150.63 | ||||
| 17 | W10622013 | Support, Lead Wire |
|
$ 28.70 | |||||
| 18 | W10204808 | Screw |
|
- | |||||
| 19 | W10708004 | Handle (Replaces: W11646480) |
|
Immediately | $ 141.35 | ||||
| 20 | W10204920 | Nut |
|
- | |||||
| 21 | W10204889 | Door Gasket, Long |
|
- | |||||
| 22 | W10204897 | Door Gasket, Short |
|
- | |||||
| 23 | W11442514 | Wire Support Tape |
|
- | |||||
| 24 | W10287957 | Seal, Cold Air |
|
- | |||||
| 25 | W10772901 | Support, Wire |
|
$ 19.56 | |||||
| 26 | W10204929 | Lamp Cover |
|
$ 89.18 | |||||
| 27 | W10204930 | Led Lamp |
|
$ 347.60 | |||||
| 28 | W10204931 | Lamp Holder |
|
$ 79.66 | |||||
| 29 | WPW10233777 | Rail Assembly (Replaces: W10233777) |
|
$ 349.36 | |||||
| 30 | W10624158 | Bumper Support |
|
$ 22.86 | |||||
| 31 | W10789525 | Support Shelf, Left Hand |
|
$ 294.81 | |||||
| 31A | W10789528 | Support Shelf, Right Hand |
|
$ 345.68 | |||||
| NI | W10788702 | Overlay Installation Kit |
|
$ 107.70 | |||||
| NI | NP | Box, Burner (not Serviced) |
|
- |
