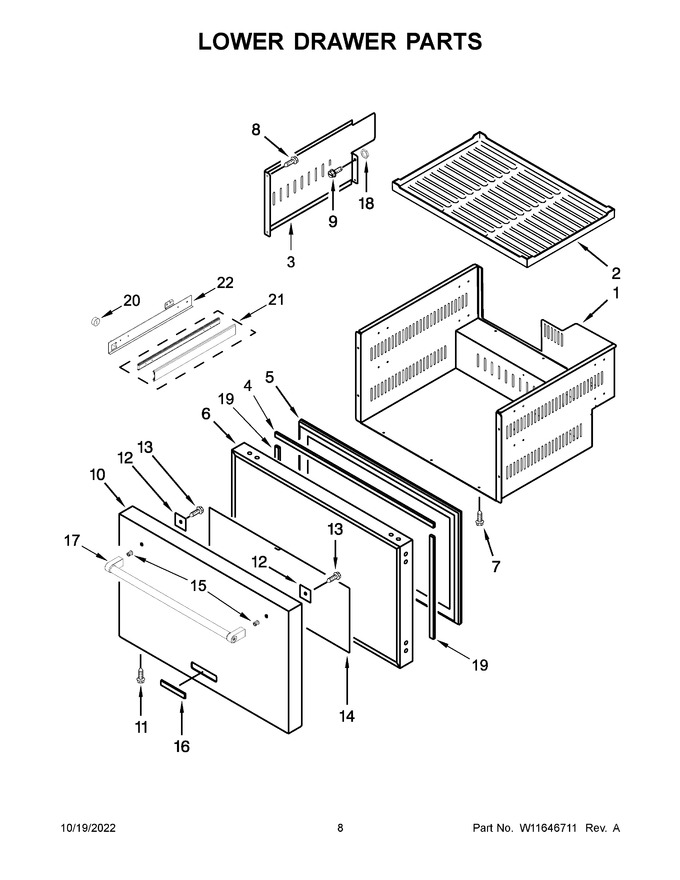

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W11646484		Drawer Box Assembly, Lower		Appelez-nous	-
2	W11568945		Mat, Lower Drawer		Appelez-nous	-
3	W10622024		Drawer Box Assembly, Lower		Appelez-nous	-
4	W10204889		Door Gasket, Long		Appelez-nous	-
5	WPW10622006		Gasket   (Replaces: W10622006)			Immediately	$ 183.09
6	W10789536		Bottom Foamed Door Assembly		Appelez-nous	-
7	W10319183		Screw		Appelez-nous	-
8	W10204809		Screw		Appelez-nous	-
9	W10204810		Screw		Appelez-nous	-
10	W10796876		Wrap, Stainless				$ 488.19
11	W11051564		Screw   (Replaces: W10796877)				$ 15.53
12	W11263339		Plate, Door Handle   (Replaces: W10622815)				$ 17.39
13	W10859467		Screw, Handle   (Replaces: W10204866)				$ 80.23
14	W10204867		Wrap Spacer		Appelez-nous	-
15	W11179356		Stud, Mounting   (Replaces: W10772902)				$ 16.62
16	W11179312		Nameplate   (Replaces: W10772910)				$ 93.49
17	W10708004		Handle   (Replaces: W11646480)			Immediately	$ 141.35
18	W10204920		Nut		Appelez-nous	-
19	W10204897		Door Gasket, Short		Appelez-nous	-
20	W10624158		Bumper Support				$ 22.86
21	WPW10233777		Rail Assembly   (Replaces: W10233777)				$ 349.36
22	W10789525		Support Shelf, Left Hand				$ 294.81
22A	W10789528		Support Shelf, Right Hand				$ 345.68
NI	W10788702		Overlay Installation Kit				$ 107.70
NI	NP		Box, Burner (not Serviced)		Appelez-nous	-
