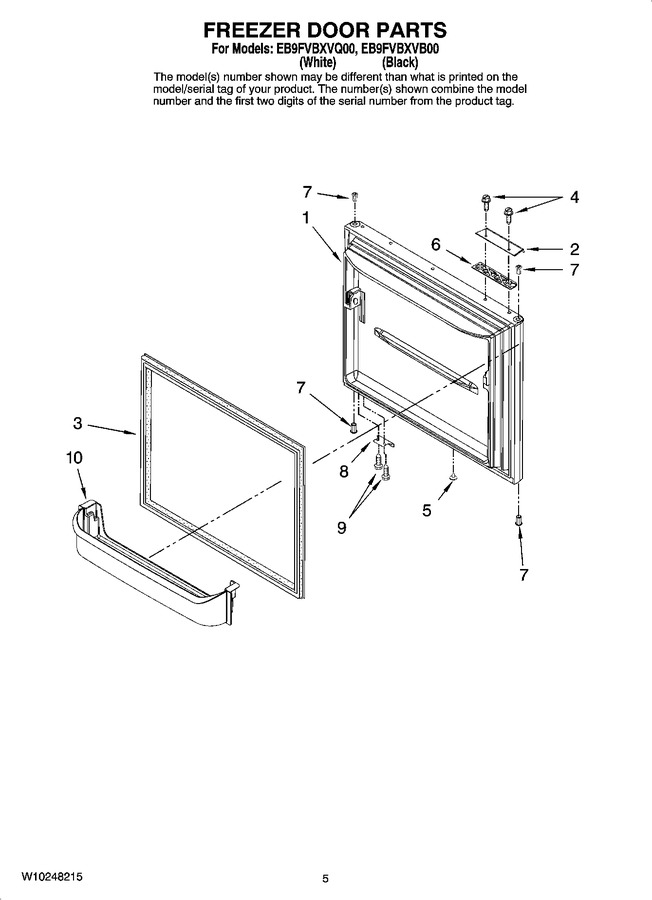

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 13024238WQ | Door, Freezer (white) |
|
$ 755.26 | |||||
| 1 | 13024238BQ | Door, Freezer (black) |
|
$ 714.07 | |||||
| 2 | W10738327 | Handle, Door (black) (Replaces: 12660007B) |
|
$ 122.84 | |||||
| 2 | W10738329 | Handle, Door (white) (Replaces: 12660007W) |
|
$ 138.79 | |||||
| 3 | WPW10436247 | Gasket, Door (black) (Replaces: W10164033) |
|
Immediately | $ 355.53 | ||||
| 3 | WPW10443311 | Gasket, Door (white) (Replaces: W10164032) |
|
Immediately | $ 255.76 | ||||
| 4 | 67006901 | Screw, Handle |
|
Immediately | $ 8.02 | ||||
| 5 | 67004838 | Plug, Button (2) (black) |
|
$ 10.68 | |||||
| 5 | A3076901 | Plug, Button (2) (white) |
|
$ 5.70 | |||||
| 6 | 12647901W | Spacer, Handle (white) |
|
$ 14.55 | |||||
| 6 | 12647901B | Spacer, Handle (black) |
|
$ 20.50 | |||||
| 7 | WP67004977 | Bushing (4) (white) (Replaces: 67004977) |
|
$ 7.81 | |||||
| 7 | 67004978 | Bushing (4) (black) |
|
$ 21.05 | |||||
| 8 | 12968202W | Stop, Door (white) (Replaces: 67003779) |
|
$ 65.99 | |||||
| 8 | W11708403 | Stop, Door (black) (Replaces: 67003780) |
|
Immediately | $ 14.05 | ||||
| 9 | WP98165 | Screw (Replaces: 67006287) |
|
$ 8.00 | |||||
| 10 | 67003397 | Retainer, Door Shelf |
|
$ 104.39 |
