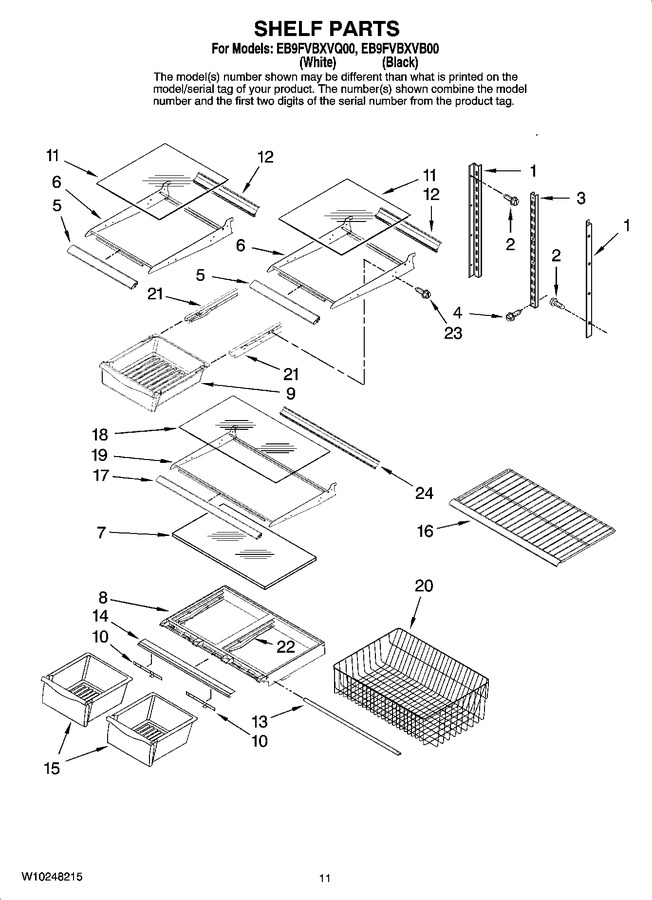

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 67001302 | Ladder, Side |
|
- | |||||
| 2 | 67006425 | Screw (6) (Replaces: 67006400) |
|
Immediately | $ 7.30 | ||||
| 3 | 67001073 | Ladder, Center |
|
$ 56.89 | |||||
| 4 | W10709795 | Screw (2) (Replaces: 67006360) |
|
$ 13.79 | |||||
| 5 | 10459930 | Trim, Front Deli (2) |
|
$ 42.17 | |||||
| 6 | 67003400 | Frame, Deli |
|
$ 33.00 | |||||
| 7 | WP67006877 | Glass, Crisper (Replaces: 67006877) |
|
Immediately | $ 209.75 | ||||
| 8 | WPW10671240 | Frame, Crisper (Replaces: 67001153) |
|
Immediately | $ 138.10 | ||||
| 9 | WP67001308 | Pan, Deli (Replaces: 67001308) |
|
Immediately | $ 138.10 | ||||
| 10 | WP67005864 | Slide, Humidity (Replaces: 67005864) |
|
Immediately | $ 8.20 | ||||
| 11 | 12204808 | Glass, Deli Shelf (2) |
|
$ 27.75 | |||||
| 12 | 10946012 | Trim, Rear (2) Deli, Shelf |
|
- | |||||
| 13 | WP12227302WD | Brace Crisper Frame (Replaces: 67001155) |
|
$ 111.60 | |||||
| 14 | WPW10231481 | Trim, Crisper (Replaces: 67003927) |
|
$ 117.42 | |||||
| 15 | W10833528 | Pan, Crisper (2) (Replaces: 67002569) |
|
Immediately | $ 139.95 | ||||
| 16 | 67001164 | Shelf-freezer |
|
$ 67.44 | |||||
| 17 | 10459931 | Trim, Front Full Shelf |
|
- | |||||
| 18 | WP12204809 | Glass, Full Shelf (Replaces: 12204809) |
|
$ 251.22 | |||||
| 19 | W10840992 | Frame, Full Shelf (Replaces: 10460115) |
|
$ 226.38 | |||||
| 20 | WP12754803 | Basket, Freezer (Replaces: W10143565) |
|
$ 267.02 | |||||
| 21 | WP67001053 | Glide-deli (right) (Replaces: 67001053) |
|
Immediately | $ 9.24 | ||||
| 21 | WP67001054 | Glide, Deli (left) (Replaces: 67001054) |
|
Immediately | $ 8.82 | ||||
| 22 | WPW10671238 | Rail, Center (Replaces: 67001057) |
|
Immediately | $ 118.46 | ||||
| 23 | W11233072 | Screw (4) (Replaces: 67006626) |
|
Immediately | $ 14.72 | ||||
| 24 | WP10946013 | Trim, Rear Full Shelf (Replaces: 10946013) |
|
$ 131.84 | |||||
| 31462 | Cleaner, 10 Oz. Stainless Steel |
|
- | ||||||
| 1117510 | Torx Key |
|
$ 5.84 | ||||||
| 350930 | Paint, Pressurized Spray (12 Oz.) White |
|
Immediately | $ 40.12 | |||||
| 285006 | Paint, Pressurized Spray (12 Oz.) (black) (Replaces: 350939) |
|
$ 59.89 | ||||||
| 4392900 | Paint, Bulk (1 Qt.) (biscuit) (uncut) |
|
- | ||||||
| 212643 | Sealer, Gum (4 Feet) |
|
Immediately | $ 82.13 | |||||
| 479502 | Tape, Vinyl 3/4 X 108``) |
|
$ 66.77 | ||||||
| 799833 | Kit, Evaporator Repair (aluminum Epoxy) |
|
- | ||||||
| 833938 | Kit, Terminal Connector |
|
$ 8.47 | ||||||
| 4396418 | Complete Icemaker (Replaces: 67001740) |
|
$ 340.53 | ||||||
| 799344 | Paint, Bulk (1 Qt.) (black) (uncut) |
|
$ 237.46 | ||||||
| 542639 | Cement, Alumilastic 1-1/4 Oz.) |
|
- | ||||||
| WP542638 | Grease, Silicone (1/2 Oz.) (Replaces: 542638) |
|
Immediately | $ 12.78 | |||||
| WP503695 | Cork, Sealer 1/4 Pound) (Replaces: 503695) |
|
$ 123.84 | ||||||
| WP505587 | Sealer, Mastic (1 Qt.). (Replaces: 505587) |
|
Immediately | $ 182.65 | |||||
| 4392901 | Paint, Pressurized Spray (12oz.) (biscuit) |
|
- | ||||||
| 72032 | Paint, Touch-up 1/2 Oz. (black) |
|
Immediately | $ 18.69 | |||||
| 72017 | Paint, Touch-up 1/2 Oz. (white) |
|
Immediately | $ 12.30 | |||||
| 350942 | Paint, Pressurized Spray (12 Oz.) (primer, White) |
|
$ 94.14 |
