Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 W11426601 Owner's Manual Appelez-nous -
2 WPW10299236 Kit, Burner Cap (black)   (Replaces: W10299236) In-Stock Immediately $ 225.49

3 W10336331 Cooktop (white)   (Replaces: W10260170) Special Order $ 418.08

4 WPW10406878 Head, Burner (17.5k) (left Front)   (Replaces: W10406878) Special Order $ 107.48

5 W11030413 Knob, Control (stainless)   (Replaces: W10643306) In-Stock Immediately $ 76.20

6 W10518258 Bracket, Cooktop Support Appelez-nous -
7 W10432544 Griddle In-Stock Immediately $ 56.67

8 W11673268 Grate Kit (includes 2 Grates)   (Replaces: W11241660) Special Order $ 365.59

9 W10919249 Grate, Bumper   (Replaces: W10465081) In-Stock Immediately $ 13.18

10 WPW10333445 Base, Burner (fish Burner Only)   (Replaces: W10333445) Special Order $ 110.05

11 WPW10171140 Kit, Burner Cap (fish Burner Only) (black)   (Replaces: W10171140) Special Order $ 168.47

12 8016P02260 Glide, Main Top Appelez-nous -
13 W10719580 Endcap, Manifold (white (left)) Appelez-nous -
14 W10491985 Screw   (Replaces: 3196160) In-Stock Immediately $ 7.55

15 W10814133 Bezel (stainless (kit Of 5))   (Replaces: W10785119) In-Stock Immediately $ 113.38

16 W10708334 Panel, Manifold (white) Appelez-nous -
17 WP3368921 Screw   (Replaces: 3368921) In-Stock Immediately $ 8.56

18 7101P37660 Screw Appelez-nous -
13A W10719579 Endcap, Manifold (white (right)) Appelez-nous -
13B W10772020 Endcap, Manifold (stainless (left)) Appelez-nous -
13C W10772019 Endcap, Manifold (stainless (right)) Appelez-nous -
16A W11228125 Panel, Manifold (stainless)   (Replaces: W10711043) In-Stock Immediately $ 272.93

1A W11430266 Quick Start Guide Appelez-nous -
1B W11565449 Tech Sheet Appelez-nous -
3A W10401393 Cooktop (stainless)   (Replaces: W10330921) Special Order $ 437.46

4A WPW10406243 Head, Burner (6k) (left Rear And Right Rear)   (Replaces: W10406243) In-Stock Immediately $ 39.08

4B WPW10406797 Head, Burner (12.5k) (right Front)   (Replaces: W10406797) Special Order $ 92.91

4C WPW10336094 Head, Burner (center)   (Replaces: W10336094) Special Order $ 227.81

NI 7109P03660 Washer Appelez-nous -
NI W11172531 Harness, Sensor & Locks Special Order $ 119.20

NI W11172428 Harness, Eol (dofsr) Appelez-nous -
NI W11448060 Harness, Main Appelez-nous -
NI NP Gearcase Motor Housing (refer To Color Variation Parts Page) Appelez-nous -
NI 7111P01760 Clamp, Wire Appelez-nous -
NI 8019P02660 Clip, Wire-wrap Nylon Appelez-nous -
NI 7101P02760 Screw, Ground Appelez-nous -
NI W10408058 Harness, Spark Special Order $ 77.20

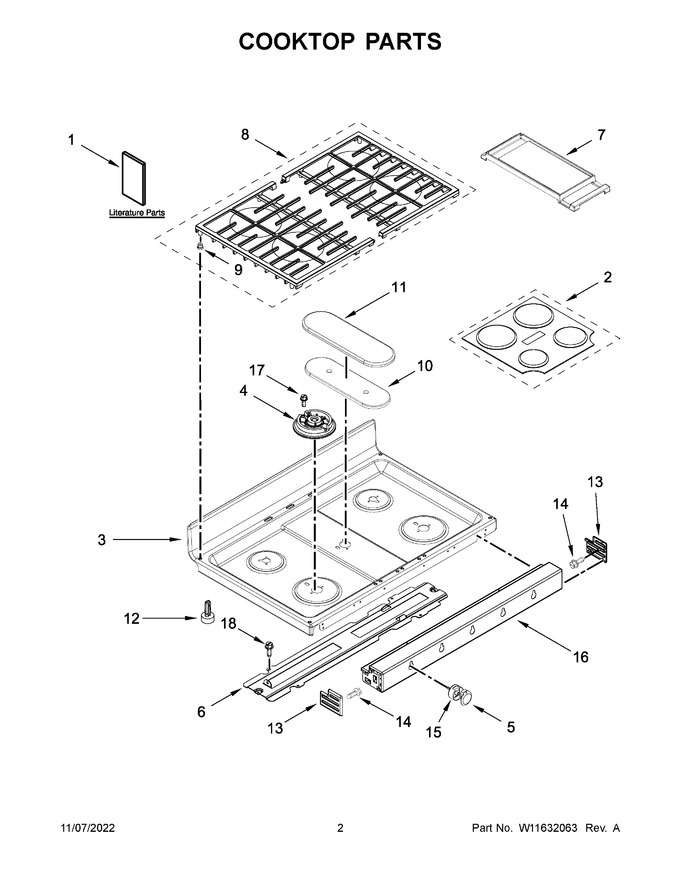

    View Diagram in Separate Window     Print Icon   Print Part List
