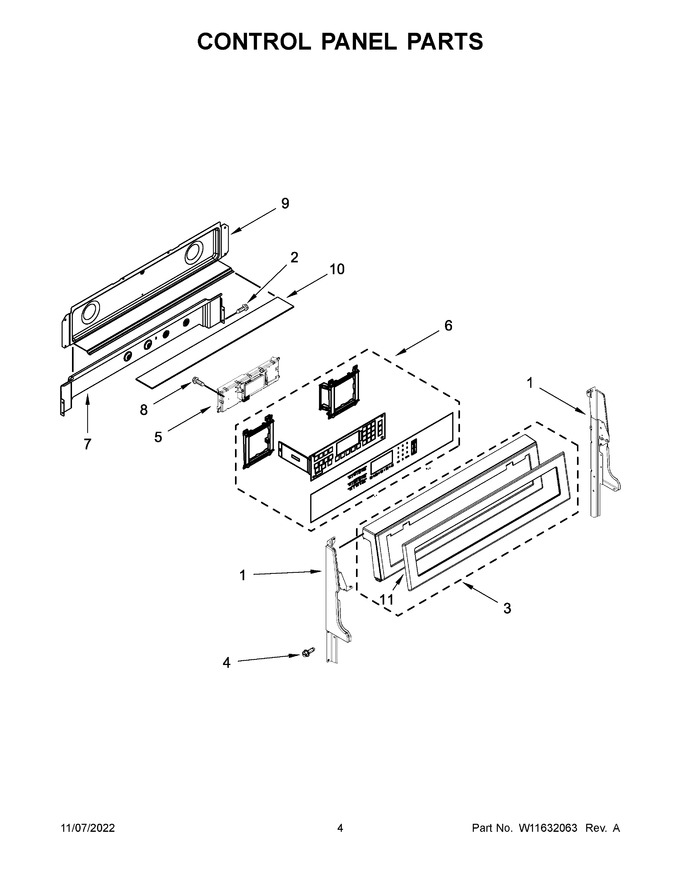

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10319110		Support, Backguard (white (left))				$ 95.95
2	7101P42660		Screw		Appelez-nous	-
3	W10645847		Console (white)				$ 313.67
4	7101P63460		Screw		Appelez-nous	-
5	W11620682		Control, Maxwell Electronic   (Replaces: W11541198)				$ 475.15
6	W11430948		Assembly, User Interface (includes Light Feature) (white)   (Replaces: W10692424)		Appelez-nous	-
7	W10278697		Shield, Vent			Immediately	$ 183.33
8	W11245710		Screw   (Replaces: 9780274)			Immediately	$ 14.75
9	W10776098		Cover, Backguard				$ 135.81
10	W11684874		Insulation, Wire Cover   (Replaces: W10309232)				$ 35.56
11	NP		Gearcase Motor Housing (refer To Color Variation Parts Page)		Appelez-nous	-
1A	W10319112		Support, Backguard (white (right))				$ 93.79
1B	W10319109		Support, Backguard (black (left))				$ 92.84
1C	W10319111		Support, Backguard (black (right) (for Stainless Model Only)				$ 43.80
3A	W11164063		Console (stainless)   (Replaces: W10645848)			Immediately	$ 518.62
6A	W11430942		Assembly, User Interface (includes Light Feature) (black (for Stainless Model Only))   (Replaces: W10619109)				$ 858.61
