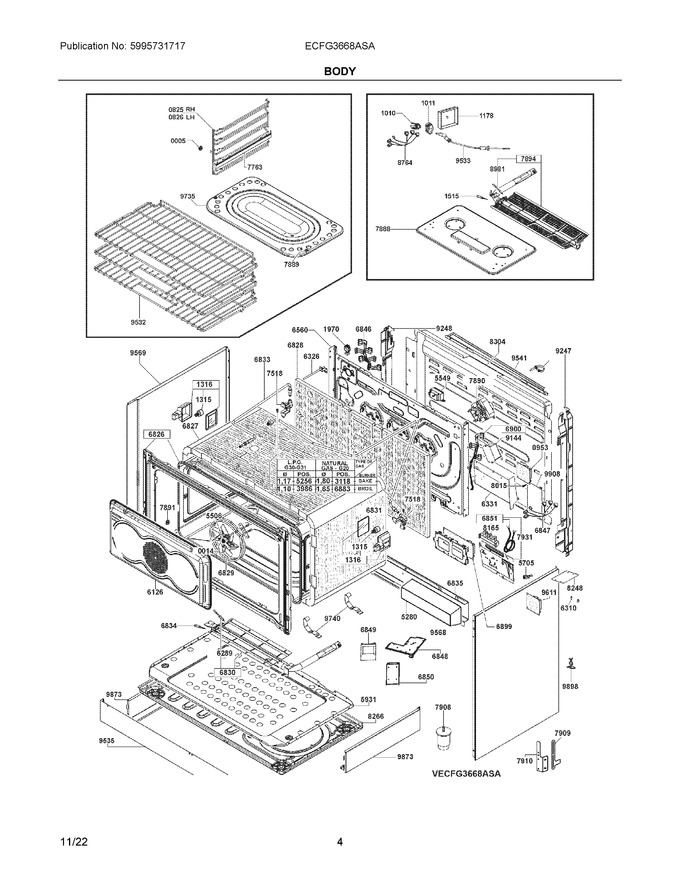

03 - Body
04 - Main Top
05 - Door / Cooling-venting
06 - Wiring Assembly Diagram
07 - Wiring Diagram
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 5 | 5304527453 | Bushing, Rack Support |
|
- | |||||
| 14 | 5304527454 | Blade, Fan, Convection, 7 Vane |
|
$ 71.39 | |||||
| 825 | 5304531576 | Glide Rail, Rack, Rh |
|
- | |||||
| 826 | 5304531577 | Glide Rail, Rack, Lh |
|
- | |||||
| 953 | 5304532685 | Pc Board, Electronic Unit, Valve |
|
$ 430.41 | |||||
| 1010 | 4056034681 | Receptacle, Meat Probe (Replaces: 5304527481) |
|
- | |||||
| 1011 | 5304527482 | Cover, Receptacle, Meat Probe |
|
- | |||||
| 1178 | 5304531579 | Housing, Probe Shield |
|
- | |||||
| 1315 | 318946400 | Bulb, Oven Lamp, Halogen, 40w, 120v, (2) (Replaces: 5304527465) |
|
Immediately | $ 49.32 | ||||
| 1316 | 5304527466 | Lamp Assembly, Halogen, Oven, 40w, 120v, (2), W/bulb |
|
$ 145.80 | |||||
| 1515 | 5304532733 | Thermocouple, Broil Burner |
|
Immediately | $ 155.21 | ||||
| 1970 | 5304527468 | Clamp, Cable, (6) |
|
- | |||||
| 3118 | 5304527435 | Orifice, Natural Gas, D.1, 80-18k Btu, External, (2), Dual Burner |
|
Immediately | $ 32.91 | ||||
| 3986 | 5304532725 | Orifice, Lp Gas, 1.10, Broil Burner |
|
- | |||||
| 5256 | 5304532679 | Orifice, Lp Gas, 1.17, Oven Burner |
|
- | |||||
| 5280 | 5304527475 | Counterweight, (2) |
|
- | |||||
| 5506 | 5304527436 | Nut, Fan Blade, Convection |
|
$ 75.08 | |||||
| 5549 | 5304532682 | Thermostat, Double, 220 Deg C |
|
- | |||||
| 5705 | 5304532678 | Clamp, Wiring |
|
- | |||||
| 5931 | 5304532734 | Shield, Oven Burner, Lower |
|
- | |||||
| 6126 | 5304532732 | Cover, Convection Fan |
|
- | |||||
| 6289 | 5304532740 | Ignitor, Oven Burner |
|
$ 129.58 | |||||
| 6310 | 5304527491 | Spacer, (4) |
|
- | |||||
| 6326 | 5304527492 | Probe, Oven Temp, Pt1000 Ul |
|
Immediately | $ 210.47 | ||||
| 6331 | 5304527494 | Power Electronic, Unit |
|
$ 331.44 | |||||
| 6560 | 5304532741 | Panel, Oven Back |
|
- | |||||
| 6826 | 5304532742 | Liner Assembly, Oven, W/front Frame |
|
- | |||||
| 6827 | 5304532743 | Insulation, Oven Wrapper |
|
- | |||||
| 6828 | 5304532744 | Insulation, Oven Rear |
|
- | |||||
| 6829 | 5304532700 | Element, Convection |
|
- | |||||
| 6830 | 5304532745 | Bake Burner, Assembly, W/ignitor |
|
Immediately | $ 162.65 | ||||
| 6831 | 5304532746 | Tube, Oven Burner, Supply |
|
- | |||||
| 6833 | 5304532748 | Tube, Broil Burner, Supply |
|
- | |||||
| 6834 | 5304532749 | Thermocouple, Oven Burner |
|
$ 169.32 | |||||
| 6835 | 5304532750 | Support Bracket, Weight |
|
- | |||||
| 6846 | 5304532701 | Harness, Wiring, Lh Side |
|
- | |||||
| 6847 | 5304532702 | Harness, Wiring |
|
- | |||||
| 6848 | 5304532757 | Support |
|
- | |||||
| 6849 | 5304532758 | Support |
|
- | |||||
| 6850 | 5304532759 | Support |
|
- | |||||
| 6851 | 5304532760 | Power Cord, Electric Servc |
|
- | |||||
| 6883 | 5304532724 | Orifice, Natural Gas, 1.65, Broil Burner |
|
$ 36.67 | |||||
| 6899 | 5304532764 | Control Board, Main, Power |
|
Immediately | $ 637.26 | ||||
| 6900 | 4056033683 | Harness, Wiring, Main (Replaces: 5304532765) |
|
- | |||||
| 7518 | 5304532673 | Nozzle, Support, Burner |
|
- | |||||
| 7763 | 5304527498 | Glide Kit, Oven Rack, Rh And Lh, Telescopic |
|
$ 240.61 | |||||
| 7888 | 5304532735 | Shield, Broil Burner, Upper |
|
- | |||||
| 7889 | 5304532736 | Spacer, Oven Bottom |
|
- | |||||
| 7890 | 5304527722 | Motor, Convection Fan, (2) |
|
Immediately | $ 237.12 | ||||
| 7891 | 5304531574 | Washer |
|
- | |||||
| 7894 | 5304532737 | Broil Burner, Assembly, W/ignitor |
|
- | |||||
| 7908 | 5304527725 | Foot Assembly, Cabinet, (4), Adjustable |
|
$ 97.37 | |||||
| 7909 | 5304527501 | Hook, Attachment |
|
- | |||||
| 7910 | 5304527502 | Support, Attachment Hook |
|
- | |||||
| 7931 | 5304532738 | Junction Box, Main Wiring, W/terminal Blk |
|
- | |||||
| 8015 | 5304527772 | Spacer, Electronic Unit |
|
- | |||||
| 8165 | 5304527478 | Terminal Block, Electrical |
|
- | |||||
| 8248 | 5304527524 | Shield, Feeder Board |
|
- | |||||
| 8266 | 5304527703 | Base, Oven Bottom |
|
$ 225.33 | |||||
| 8304 | 5304532726 | Panel, Main Back |
|
Immediately | $ 168.12 | ||||
| 8764 | 5304527530 | Harness, Wiring, Meat Probe |
|
$ 146.01 | |||||
| 8981 | 5304532727 | Ignitor, Broil Burner |
|
- | |||||
| 9144 | 5304527783 | Filter, Electrical |
|
$ 203.44 | |||||
| 9247 | 5304527457 | Brace, Oven, Rh Rear |
|
- | |||||
| 9248 | 5304527458 | Brace, Oven, Lh Rear |
|
- | |||||
| 9532 | 5304527737 | Rack, Oven, (3), Handled |
|
- | |||||
| 9533 | 5304527535 | Probe, Meat Temp |
|
$ 181.40 | |||||
| 9535 | 5304527738 | Plinth, Front, Lower |
|
$ 226.95 | |||||
| 9541 | 5304527740 | Tray, Drip, Rear |
|
$ 167.98 | |||||
| 9568 | 5304527744 | Panel, Body Side, Stainless, Rh |
|
Immediately | $ 246.31 | ||||
| 9569 | 5304527745 | Panel, Body Side, Stainless, Lh |
|
$ 246.31 | |||||
| 9611 | 5304527540 | Pc Board, Feeder, 120v-12/5v |
|
Immediately | $ 364.53 | ||||
| 9735 | 5304532729 | Panel, Oven Bottom |
|
Immediately | $ 156.49 | ||||
| 9740 | 5304532681 | Clip, Insulation |
|
- | |||||
| 9771 | 5304532731 | Chimney, Oven Vent |
|
- | |||||
| 9873 | 5304527771 | Plinth Kit, Assembly, Lh And Rh Side |
|
$ 257.14 | |||||
| 9898 | 5304527444 | Clip, Cable, Stringing |
|
- | |||||
| 9908 | 5304527568 | Shield, Protection |
|
- |
