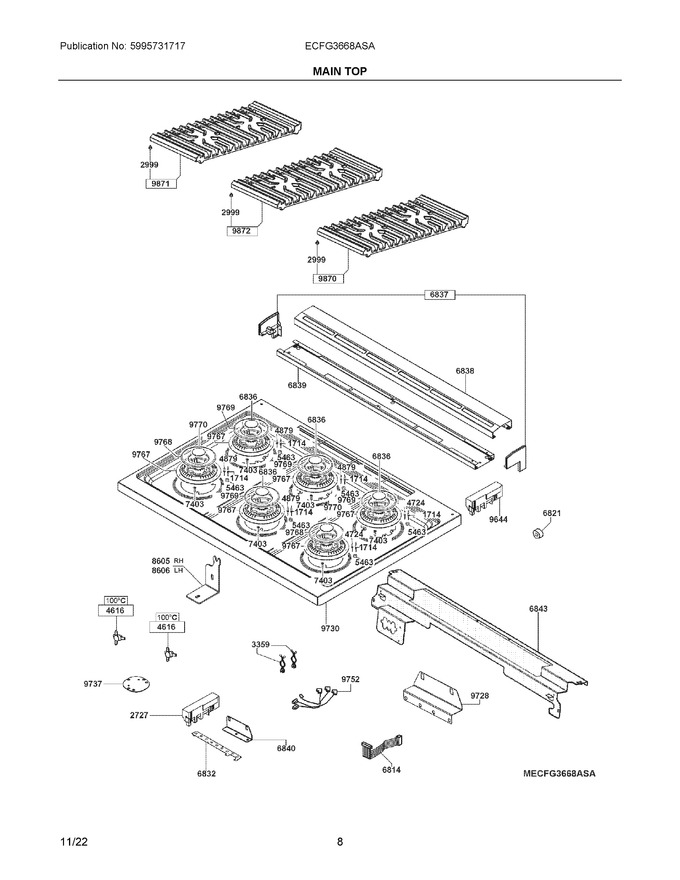

04 - Main Top
05 - Door / Cooling-venting
06 - Wiring Assembly Diagram
07 - Wiring Diagram
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1714 | 5304527484 | Thermocouple, +or Mm600 |
|
Immediately | $ 116.13 | ||||
| 2727 | 5304532680 | Module, Ignitor Spark |
|
Immediately | $ 142.77 | ||||
| 2999 | 5304531583 | Foot, Grate, Rubber |
|
Immediately | $ 31.86 | ||||
| 3359 | 5304527470 | Clip, Wiring, Spark Ignitor |
|
- | |||||
| 4616 | 5304532672 | Thermostat, Safety, 100 Deg C |
|
Immediately | $ 69.62 | ||||
| 4724 | 5304531588 | Ignitor, Spark, Top Burner |
|
Immediately | $ 75.83 | ||||
| 4879 | 5304531597 | Ignitor, Spark, Top Burner |
|
Immediately | $ 86.30 | ||||
| 5463 | 5304527445 | Nut, Thermocouple, Top Burner |
|
$ 21.99 | |||||
| 6814 | 5304532699 | Harness, Wiring, Communication |
|
- | |||||
| 6821 | 5304527440 | Spacer, Frame, Rear, (2) |
|
$ 23.51 | |||||
| 6832 | 5304532747 | Bracket, Module |
|
- | |||||
| 6836 | 5304527495 | Cap, Dual Burner, 12k, Black, Internal |
|
Immediately | $ 74.93 | ||||
| 6837 | 5304532751 | Side Bracket, Assembly, Rear Trim |
|
$ 192.47 | |||||
| 6838 | 5304532752 | Trim, Top Rear, Stainless |
|
$ 230.64 | |||||
| 6839 | 5304532753 | Bracket, Rear Trim |
|
$ 209.21 | |||||
| 6840 | 5304532754 | Bracket |
|
- | |||||
| 6843 | 5304532756 | Support, Back Panel |
|
- | |||||
| 7403 | 5304527460 | Screw, Burner, M4 X 8 |
|
- | |||||
| 8605 | 5304527728 | Bracket, Rh |
|
$ 37.99 | |||||
| 8606 | 5304527729 | Bracket, Lh |
|
$ 37.99 | |||||
| 9644 | 5304527443 | Module, Spark Ignitor, (2) |
|
Immediately | $ 184.94 | ||||
| 9728 | 5304527543 | Bracket, Support, (2) |
|
$ 32.96 | |||||
| 9730 | 5304527748 | Maintop, Top Burners, Stainless |
|
$ 561.13 | |||||
| 9737 | 5304527547 | Plate, Cook Top, (2) |
|
- | |||||
| 9752 | 5304527548 | Harness, Wiring, Thermostats |
|
Immediately | $ 103.90 | ||||
| 9767 | 5304527550 | Burner, Support, Cook Top, Flame Spreader |
|
$ 132.51 | |||||
| 9768 | 5304527551 | Burner Cap, Flame Spreader, 18k, Brass, Lh/rh Front, (2) |
|
$ 215.48 | |||||
| 9769 | 5304527552 | Burner Cap, Flame Spreader, Black |
|
$ 231.51 | |||||
| 9770 | 5304527553 | Cap, Dual Burner, 18k, Brass, Lh/rh Front, (2) |
|
$ 118.46 | |||||
| 9870 | 5304527768 | Grate, Top Burner, Black, Rh, W/bumpers |
|
$ 464.53 | |||||
| 9871 | 5304527769 | Grate, Top Burner, Black, Lh, W/bumpers |
|
$ 294.25 | |||||
| 9872 | 5304527770 | Grate, Top Burner, Black, Center, W/bumpers |
|
$ 284.39 |
