SELECT A DIAGRAM

01 - Cover Sheet

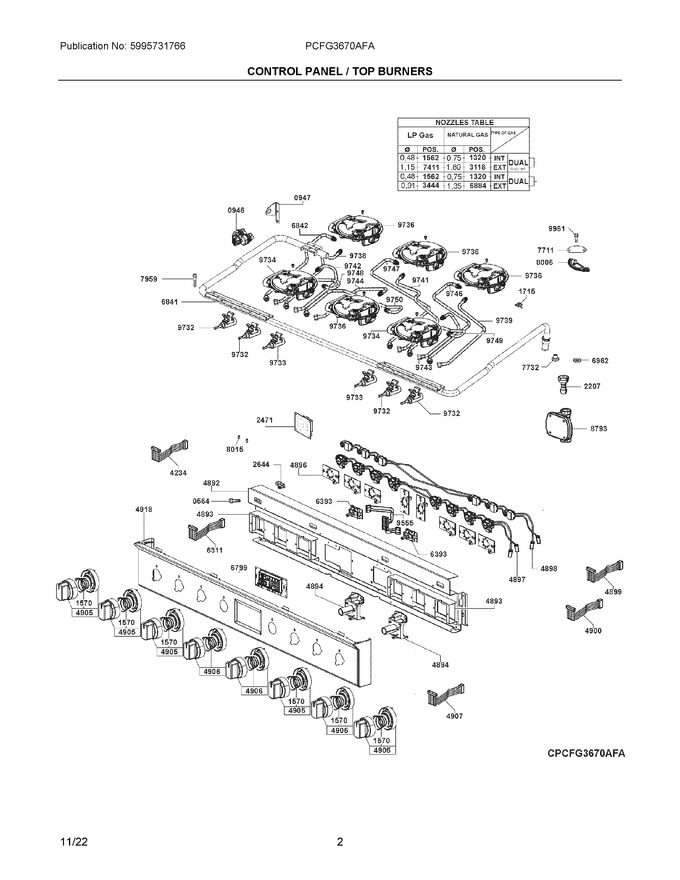

02 - Control Panel / Top Burners


03 - Body


04 - Main Top


05 - Door / Cooling - Venting


06 - Wiring Assembly Diagram


07 - Wiring Diagram


08 - Knob Wiring Diagrams


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
564	5304529223		Screw, Bracket, (10), Control Panel		Appelez-nous	-
946	5304532683		Valve, Solenoid, 2 Way				$ 407.15
947	5304532684		Bracket, Valve Support		Appelez-nous	-
1320	5304527459		Orifice, Natural Gas, D.0, 75-750btu, Internal, Dual Burner			Immediately	$ 32.96
1562	5304527467		Orifice, Lp Gas, D.0, 48-750 Btu, Internal, Dual Burner			Immediately	$ 36.60
1570	5304527483		Spring, Knob				$ 17.75
1715	5304527485		Spring Clip, Burner				$ 16.69
2207	5304529231		Connector, Manifold Tube		Appelez-nous	-
2471	5304529252		Pc Board, Control				$ 219.96
2644	5304527708		Clamp, Cable, (2)		Appelez-nous	-
3118	5304527435		Orifice, Natural Gas, D.1, 80-18k Btu, External, (2), Dual Burner			Immediately	$ 32.91
3444	5304527696		Orifice, Lp Gas, D.0, 91-12k Btu, External, (4), Dual Burner				$ 25.63
4234	5304527487		Harness, Wiring, Communication, Flat		Appelez-nous	-
4892	5304531610		Support, Front Panel		Appelez-nous	-
4893	5304531611		Support, Control Valves				$ 72.20
4894	5304531612		Support, Potentiometer				$ 26.80
4896	5304531614		Pc Board, Power Module, Burner Knob				$ 87.81
4897	5304531615		Micro Switch, Assembly, 8 Switches, W/wiring			Immediately	$ 163.96
4898	5304531616		Micro Switch, Assembly, 6 Switches, W/wiring			Immediately	$ 163.85
4899	5304531617		Cable, Communication			Immediately	$ 84.72
4900	5304531618		Cable, Communication			Immediately	$ 78.44
4905	5304531619		Knob Assembly, Top Burner, Stainless, W/spring		Appelez-nous	-
4906	5304531620		Knob Assembly, Oven Control, Stainless, W/spring			Immediately	$ 205.78
4907	5304531621		Cable, Lighting				$ 154.65
4918	5304531629		Control Panel, Stainless, 4918				$ 384.45
6311	5304532116		Harness, Wiring, Connection, Display				$ 118.26
6393	5304527476		Switch, Potentiometer, (2)				$ 125.13
6799	4056066766		Controller, Electronic, Oven   (Replaces: 5304534038)			Immediately	$ 232.67
6841	5304534040		Manifold, Assembly, Top Burners		Appelez-nous	-
6842	5304532755		Tube, Burner, Lh Rear, Side		Appelez-nous	-
6884	5304527695		Orifice, Natural Gas, D.1, 35-12k Btu, External, (4), Dual Burner			Immediately	$ 59.55
6962	5304527447		Seal, Gas, (2)				$ 31.39
7411	5304527438		Orifice, Lp Gas, D.1, 15-18k Btu, External, (2), Dual Burner				$ 28.76
7711	5304527497		Plate, Burner		Appelez-nous	-
7732	5304527461		Cap, Gas Pipe				$ 12.13
7959	5304527504		Screw, Burner Valve, (12)		Appelez-nous	-
8006	5304527505		Gasket, Burner, Auxiliary		Appelez-nous	-
8015	5304527772		Spacer, Electronic Unit		Appelez-nous	-
8793	5304527531		Regulator, Gas Stabilizer				$ 270.68
9555	5304527536		Harness, Wiring, Potentiometers				$ 209.66
9732	5304527750		Valve, Dual Burner, (4)				$ 220.94
9733	5304527544		Valve, Dual Burner, (2)				$ 210.83
9734	5304527545		Holder Assembly, Dual Burner, 750/18000 Btu, (2), D.1, 80 + D.0, 75				$ 191.11
9736	5304527751		Holder Assembly, Dual Burner, 750/12000 Btu, (4), D.1, 35 + D.0, 75				$ 192.07
9738	5304527752		Tube, Burner, 750/12k Btu, Lh Rear, Front Connect		Appelez-nous	-
9739	5304527753		Tube, Burner, 750/12k Btu, Rh Rear, Front Connect		Appelez-nous	-
9741	5304527754		Tube, Burner, 750/12k Btu, Center Rear, Front Connect		Appelez-nous	-
9742	5304527755		Tube, Burner, 750/18k Btu, Lh Front, Rear Connect		Appelez-nous	-
9743	5304527756		Tube, Burner, 750/18k Btu, Rh Front, Rear Connect		Appelez-nous	-
9744	5304527757		Tube, Burner, 750/12k Btu, Center Front, Rear Connect		Appelez-nous	-
9746	5304527759		Tube, Burner, 750/12k Btu, Rh Rear, Side Connect		Appelez-nous	-
9747	5304527760		Tube, Burner, 750/12k Btu, Center Rear, Side Connect		Appelez-nous	-
9748	5304527761		Tube, Burner, 750/18k Btu, Lh Front, Side Connect		Appelez-nous	-
9749	5304527762		Tube, Burner, 750/18k Btu, Rh Front, Side Connect		Appelez-nous	-
9750	5304527763		Tube, Burner, 750/12k Btu, Center Front, Side Connect		Appelez-nous	-
9961	5304527449		Screw, Burner		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
