Diagram # Part Number Description Series Availability Ships Price Add to Cart
956 5304527463 Hook, Door Hinge, Oven, (2) Appelez-nous -
1043 5304531573 Hinge, Door Appelez-nous -
1190 5304527705 Bracket, Column, Lh Front Special Order $ 136.08

1191 5304527706 Bracket, Column, Rh Front Special Order $ 138.35

1256 5304527707 Bumper, Rubber, Rear, (2), Air Duct Appelez-nous -
1343 5304527456 Switch, Micro, Door, 16a, 220v Special Order $ 79.13

2639 5304527469 Bracket, Microswitch, Door Appelez-nous -
3360 5304527471 Bumper, Door, (2) Appelez-nous -
3361 5304527709 Gasket, Oven Door Special Order $ 186.96

3564 5304527717 Frame, Inner Door Appelez-nous -
3566 5304527718 Glass, Door, Middle In-Stock Immediately $ 220.33

3627 5304531586 Spacer, Door, Inner Appelez-nous -
4570 5304527488 Heater, Ceramic, 60 Ohm, 50w In-Stock Immediately $ 178.93

4680 5304527473 Lever, Microswitch Special Order $ 17.44

4874 5304531592 Guide Pin, Handle Appelez-nous -
6161 5304527446 Spring, Pivot Fixing, Door Appelez-nous -
6583 5304527452 Screw, Tsc Zinc, M5 X 45, (2), Door Handle Appelez-nous -
6797 5304534036 Handle, Door, Stainless Special Order $ 234.61

6798 5304534037 Door Assembly, Outer, Stainless, W/badge Special Order $ 600.51

6836 5304534039 Panel, Service, Lower Special Order $ 153.80

7042 5304527713 Trim Assembly, Door, Upper Appelez-nous -
7695 5304527721 Door Glass, Assembly, Internal Special Order $ 320.89

7829 5304527499 Shock Absorber, Assembly, Door-rh, W/bracket Special Order $ 205.54

7830 5304527500 Shock Absorber, Assembly, Door-lh, W/bracket Special Order $ 205.54

8028 5304527714 Grommet, Stopper, Middle Glass, (4) Appelez-nous -
8276 5304527464 Catch, Door Latch, Inner Appelez-nous -
9317 5304532728 Air Duct, Assembly, Cooling Fan Appelez-nous -
9540 5304527739 Extension, Air Duct Special Order $ 146.01

9654 5304527448 Bumper, Rubber Appelez-nous -
9724 5304527542 Support, Assembly, Cooling Motor Special Order $ 114.52

9758 5304532730 Air Duct, Cooling Motor, Upper Appelez-nous -
9771 5304532731 Chimney, Oven Vent Appelez-nous -
9782 5304527479 Blower, Motor, Cooling Fan In-Stock Immediately $ 292.22


    View Diagram in Separate Window     Print Icon   Print Part List

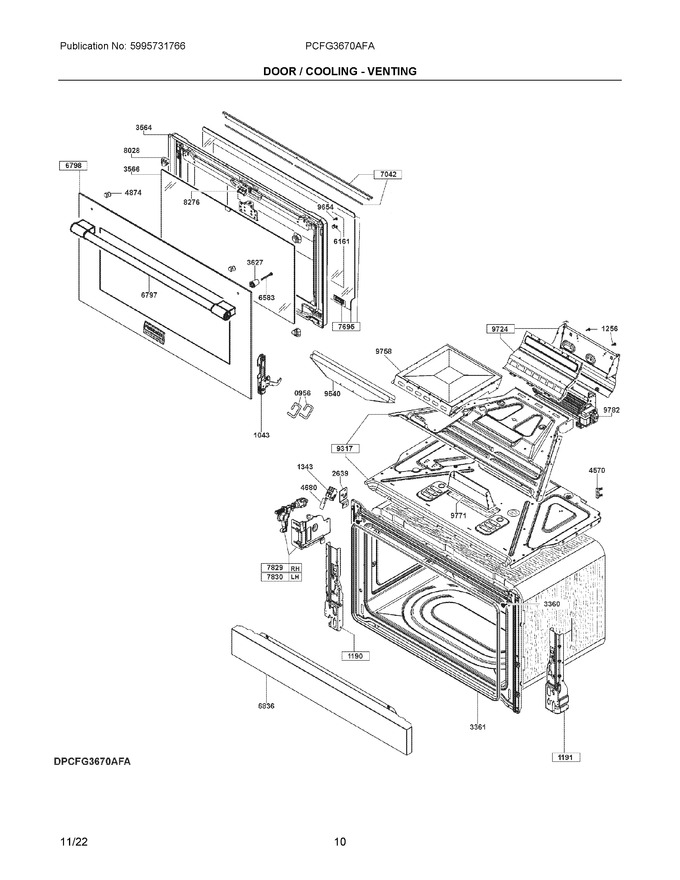

Diagram for PCFG3670AFA
