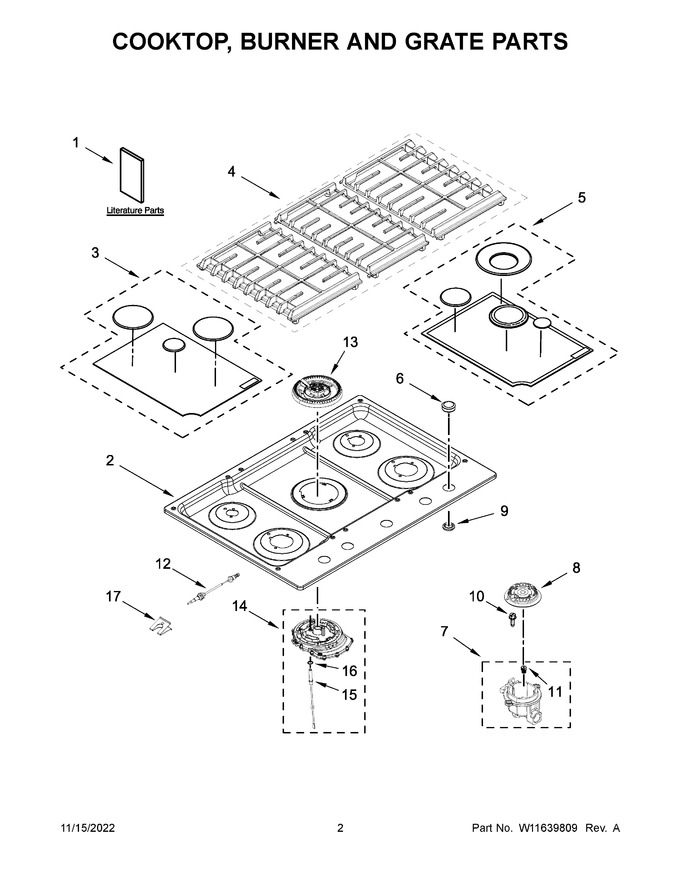

02 - Cooktop, Burner And Grate Parts
03 - Burner Box, Gas Valves And Switch Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10672375 | Instructions, Undercounter Install |
|
- | |||||
| 2 | W11639794 | Cooktop (stainless) (Replaces: W10722085) |
|
Immediately | $ 631.63 | ||||
| 3 | W10814915 | Kit, Burner Cap (black) (Replaces: W10617345) |
|
$ 103.82 | |||||
| 4 | W11503036 | Grate Assembly (includes Three Grates) (black) (Replaces: W11108271) |
|
Immediately | $ 406.17 | ||||
| 5 | W10811958 | Kit, Burner Cap (black (includes Melt Cap)) (Replaces: W10635600) |
|
Immediately | $ 160.07 | ||||
| 6 | WPW10545849 | Knobs, Cooktop (stainless) (Replaces: W10545849) |
|
Immediately | $ 88.62 | ||||
| 7 | W10674920 | Holder, Orifice (10k) (left Front And Right Front) |
|
$ 40.45 | |||||
| 8 | WP8286815 | Head, Burner (left Front) (Replaces: 8286815) |
|
Immediately | $ 74.38 | ||||
| 9 | W10853046 | Bezel (stainless) (Replaces: W10593536) |
|
Immediately | $ 74.53 | ||||
| 10 | W11676349 | Screw, Burner Rail (m4) (Replaces: 8286921) |
|
Immediately | $ 14.76 | ||||
| 11 | W10674732 | Orifice (10k) (left Front And Right Front) |
|
$ 20.64 | |||||
| 12 | W11507531 | Wiring, Electrode (left Front, Left Rear, & Right Front) (Replaces: W11439331) |
|
$ 60.82 | |||||
| 13 | W10836409 | Spreader, Burner (center) (Replaces: W10808715) |
|
Immediately | $ 136.94 | ||||
| 14 | WPW10639175 | Assembly, Burner Base (20k) (center) (Replaces: W10639175) |
|
$ 292.64 | |||||
| 15 | W11610134 | Electrode, Burner (center) (Replaces: W10657994) |
|
Immediately | $ 31.24 | ||||
| 16 | W10416057 | O-ring |
|
$ 78.13 | |||||
| 17 | 8286863 | Spring, Electrode |
|
$ 76.92 | |||||
| 11A | W10151353 | Orifice (left Rear) |
|
- | |||||
| 11B | W11727825 | Orifice (right Rear) (Replaces: W10674728) |
|
$ 33.22 | |||||
| 12A | W11507532 | Wiring, Electrode (left Rear) (Replaces: W11439332) |
|
Immediately | $ 60.89 | ||||
| 1A | W11468901 | Owner's Manual |
|
- | |||||
| 1B | W11466943 | Quick Start Guide |
|
- | |||||
| 7A | W10674918 | Holder, Orifice (6k) (left Rear) |
|
Immediately | $ 32.69 | ||||
| 7B | W10674919 | Holder, Orifice (7k) (right Rear) |
|
$ 35.09 | |||||
| 8A | WP8286813 | Head, Burner (left Rear) (Replaces: 8286813) |
|
$ 95.00 | |||||
| 8B | WP8286814 | Head, Burner (right Rear) (Replaces: 8286814) |
|
$ 124.59 | |||||
| NI | 7101P06260 | Screw (used For Tie Down Bracket) |
|
- | |||||
| NI | W10617401 | Insulation, Cooktop |
|
- | |||||
| NI | W10392003 | Cord, Power |
|
$ 161.67 | |||||
| NI | W10132200 | Relief, Strain |
|
- | |||||
| NI | 3801F93551 | Bracket, Tie Down |
|
- | |||||
| NI | WP3400015 | Screw, Grounding (Replaces: 3400015) |
|
$ 7.55 | |||||
| NI | W11561449 | Harness, Main (switch) (Replaces: W10889267) |
|
$ 64.02 | |||||
| NI | W11637584 | Harness, Spark Module (Replaces: W10878749) |
|
$ 33.34 | |||||
| NI | 7208P02460 | Seal, Manifold Pipe Inlet |
|
- | |||||
| NI | NP | Tub Assembly (not Serviced) |
|
- | |||||
| NI | W10853432 | Kit, Lp Conversion (Replaces: W10676662) |
|
Immediately | $ 86.57 |
