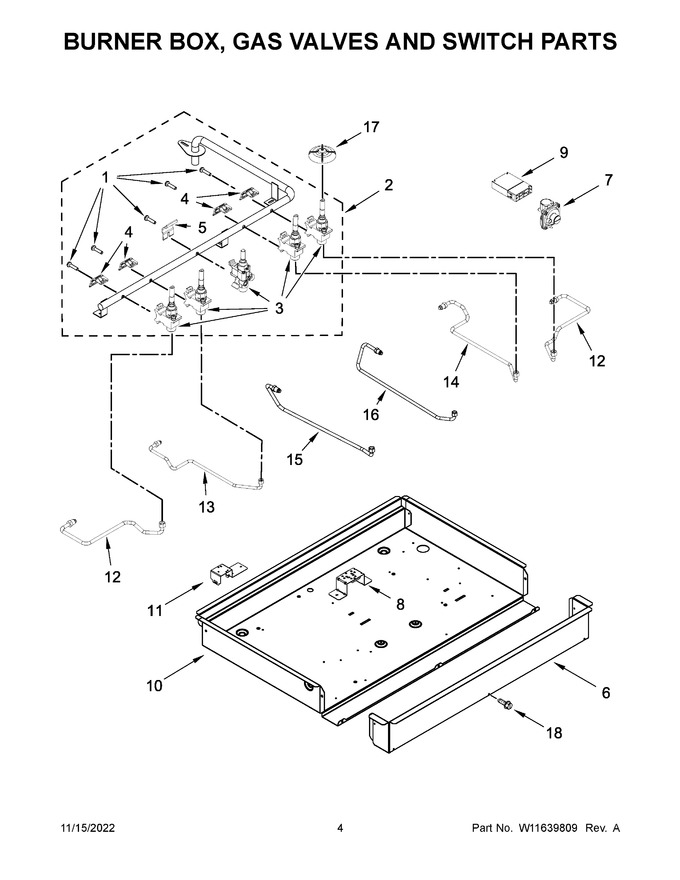

03 - Burner Box, Gas Valves And Switch Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	8287057		Screw   (Replaces: W10743274)				$ 11.84
2	W10682073		Assembly, Pipe Manifold				$ 378.05
3	W11209791		Valve, Single (left Front)   (Replaces: W10717630)			Immediately	$ 275.34
4	8287055		Bracket, Single Valve				$ 76.46
5	8287056		Bracket, Dual Valve		Appelez-nous	-
6	W10716840		Panel, Front   (Replaces: W10705475)		Appelez-nous	-
7	W11087445		Regulator, Pressure   (Replaces: W10449143)			Immediately	$ 197.04
8	W10594429		Bracket, Orifice Holder				$ 23.33
9	WPW10475149		Module, Spark   (Replaces: W10475149)			Immediately	$ 179.05
10	W10710917		Box, Burner		Appelez-nous	-
11	W10545802		Bracket, Dual Burner				$ 22.50
12	W10545796		Tubing, Gas Burner (left Front)				$ 82.66
13	W10545797		Tubing, Gas Burner (left Rear)				$ 82.08
14	W10545798		Tubing, Gas Burner (right Rear)				$ 87.36
15	W10545801		Tubing, Gas Burner (center, Main)				$ 83.19
16	W10545800		Tubing, Gas Burner (center, Simmer)				$ 83.18
17	W11768651		Seal, Switch Shaft   (Replaces: W11507167)				$ 20.30
18	WP3196557		Screw   (Replaces: 3196537)			Immediately	$ 7.95
3A	W10617357		Valve, Single (left Rear)				$ 83.59
3B	W10717628		Valve, Single (right Rear)				$ 263.64
3C	W11199023		Valve, Dual (right Front And Center)   (Replaces: W10717629)				$ 156.61
NI	W11042467		Accessories, Spray, Stainless Steel Cleaning		Appelez-nous	-
