01 - Cover Sheet

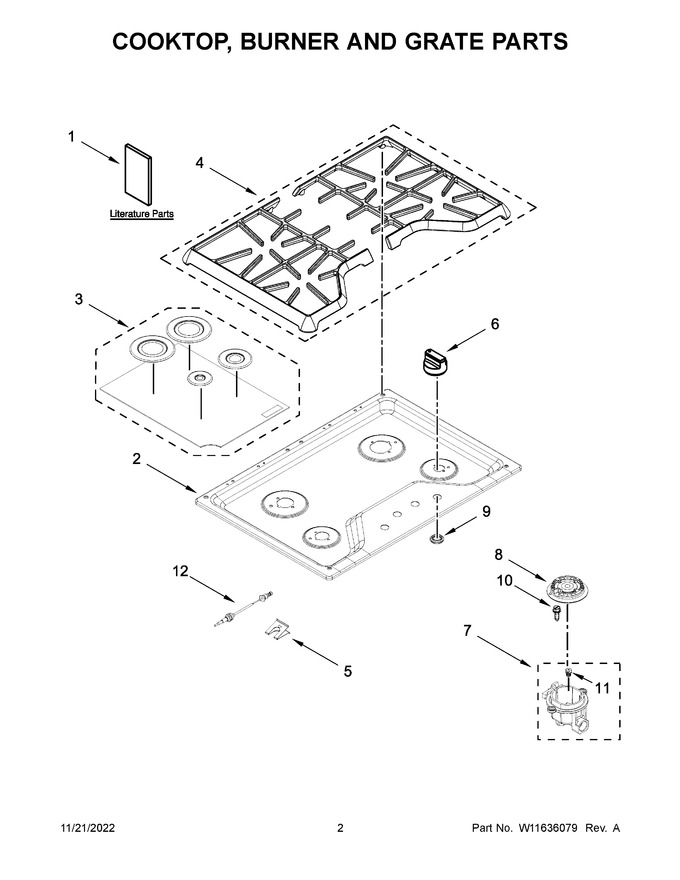

02 - Cooktop, Burner And Grate Parts


03 - Burner Box, Gas Valves And Switch Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W11468901		Owner's Manual		Appelez-nous	-
2	W10597073		Cooktop (stainless)				$ 422.79
3	WPW10597129		Kit, Burner Cap (black)   (Replaces: W10597129)				$ 127.34
4	W11413073		Grate Assembly Includes Both Grates) (black)   (Replaces: W11241677)				$ 375.81
5	8286863		Spring, Electrode				$ 76.92
6	W11729014		Knobs, Cooktop (stainless)   (Replaces: W10853672)				$ 66.21
7	W10594399		Holder, Orifice (5k) (right Rear)				$ 38.81
8	WP8286813		Head, Burner (left Rear)   (Replaces: 8286813)				$ 100.24
9	W11206740		Grommet (black)   (Replaces: W10625915)				$ 9.10
10	W11676349		Screw, Burner Rail (m4)   (Replaces: 8286921)			Immediately	$ 14.76
11	W10791082		Orifice (right Rear)   (Replaces: W10652711)				$ 90.30
12	W11507531		Wiring, Electrode (left Front, Left Rear, & Right Front)   (Replaces: W11439331)				$ 60.82
11A	W10791073		Orifice (center)   (Replaces: W10609592)				$ 93.46
11B	W10791079		Orifice (left Front)   (Replaces: W10409144)				$ 93.46
11C	W10652710		Orifice (left Front & Left Rear)				$ 27.27
12A	W11507532		Wiring, Electrode (left Rear)   (Replaces: W11439332)			Immediately	$ 60.89
1A	W11466946		Quick Start Guide		Appelez-nous	-
7A	W10609591		Holder, Orifice (15k) (center)				$ 72.37
7B	W10597159		Holder, Orifice (12k) (right Front)				$ 72.45
7C	W10594402		Holder,orifice (9.1k) (right Rear)				$ 72.06
8A	WP8286815		Head, Burner (left Front)   (Replaces: 8286815)			Immediately	$ 124.59
8B	WP8286814		Head, Burner (right Rear)   (Replaces: 8286814)			Immediately	$ 124.59
