SELECT A DIAGRAM

01 - Cover Sheet


02 - Cooktop, Burner And Grate Parts

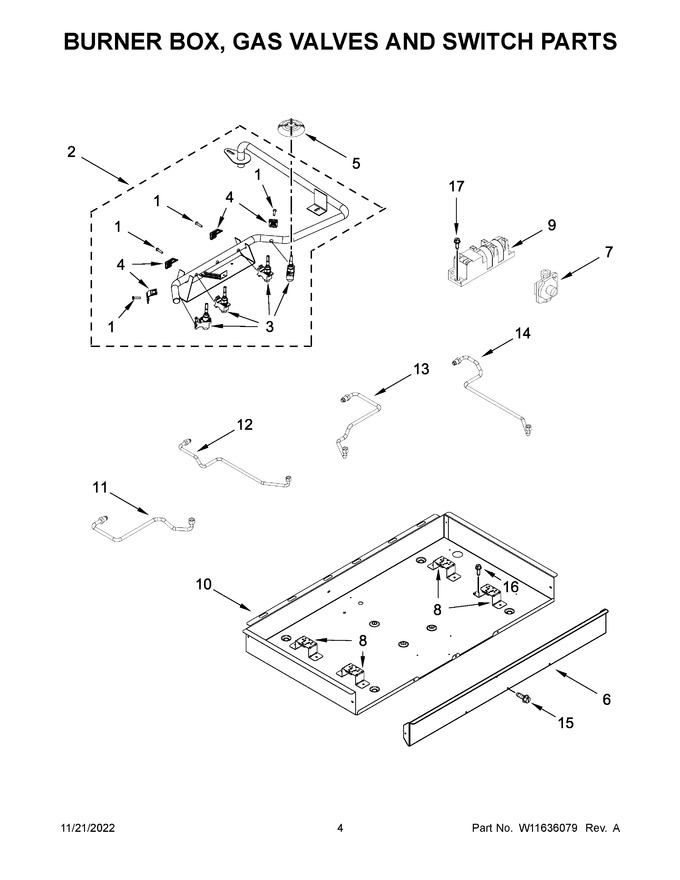

03 - Burner Box, Gas Valves And Switch Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	8287057		Screw   (Replaces: W10743274)				$ 11.84
2	W10594394		Assembly,manifold				$ 318.78
3	W10597157		Valve, Single (left Front)				$ 263.49
4	8287055		Bracket, Single Valve				$ 76.46
5	W11768651		Seal, Switch Shaft   (Replaces: W11507167)				$ 20.30
6	W10721889		Panel, Front   (Replaces: W10614950)		Appelez-nous	-
7	W11087445		Regulator, Pressure   (Replaces: W10449143)			Immediately	$ 211.40
8	W10594429		Bracket, Orifice Holder				$ 23.33
9	W11693498		Module, Spark   (Replaces: W10475148)			Immediately	$ 105.71
10	NP		Tub Assembly (not Serviced)		Appelez-nous	-
11	W10566287		Tubing, Gas Burner (left Front)		Appelez-nous	-
12	W10566288		Tubing, Gas Burner (left Rear)		Appelez-nous	-
13	W10566290		Tubing, Gas Burner (right Front)		Appelez-nous	-
14	W10566289		Tubing, Gas Burner (right Rear)		Appelez-nous	-
15	WP3196557		Screw   (Replaces: 3196537)			Immediately	$ 7.95
16	W10443110		Screw			Immediately	$ 15.25
17	7101P42660		Screw		Appelez-nous	-
3A	W11256503		Valve, Single (left Rear And Center)   (Replaces: W10594391)			Immediately	$ 275.34
3B	W10859922		Valve, Single (right Front)   (Replaces: W10594393)				$ 80.97
NI	7101P06260		Screw (used For Tie Down Bracket)		Appelez-nous	-
NI	W11561439		Harness (switch), Main   (Replaces: W10889264)				$ 61.14
NI	W11042467		Accessories, Spray, Stainless Steel Cleaning		Appelez-nous	-
NI	W10676661		Kit, Lp Conversion				$ 42.13
NI	W10392003		Cord, Power				$ 161.67
NI	W10132200		Relief, Strain		Appelez-nous	-
NI	3801F93551		Bracket, Tie Down		Appelez-nous	-
NI	WP3400015		Screw, Grounding   (Replaces: 3400015)				$ 7.55
NI	16515		Clip, Harness   (Replaces: 313438)				$ 20.53
NI	NP		Tub Assembly (not Serviced)		Appelez-nous	-
NI	W11637584		Harness, Spark Module   (Replaces: W10878749)				$ 33.34

    View Diagram in Separate Window       Print Part List
