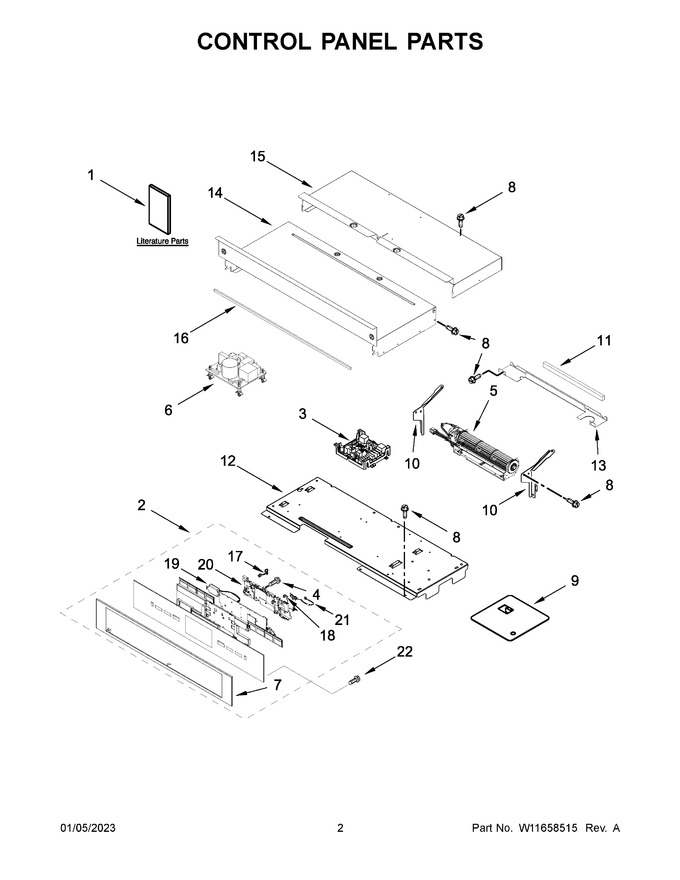

02 - Control Panel Parts


03 - Oven Parts


04 - Oven Door Parts


05 - Internal Oven Parts


06 - Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W11340513		Owner's Manual		Appelez-nous	-
2	W11598153		Assembly, Control Panel (stainless)   (Replaces: W11301912)				$ 1,734.62
3	W11448962		Appliance Manager, Copernicus   (Replaces: W11249218)			Immediately	$ 325.47
4	W10489172		Screw				$ 11.98
5	W11598119		Blower   (Replaces: W11397930)			Immediately	$ 388.25
6	WPW10260060		Board, Power Supply   (Replaces: W10260060)			Immediately	$ 317.35
7	W11197499		Skin, Control Panel (stainless)			Immediately	$ 361.78
8	7101P42660		Screw		Appelez-nous	-
9	W11819353		Cover, Wifi   (Replaces: W11308343)		Appelez-nous	-
10	W10655463		Bracket, Blower (left)		Appelez-nous	-
11	W10491987		Block, Foam   (Replaces: 4451758)			Immediately	$ 8.14
12	W11179509		Tray, Electronic		Appelez-nous	-
13	W11166802		Divider, Chassis Back		Appelez-nous	-
14	W11244465		Chassis, Cover Top Front 27		Appelez-nous	-
15	W11244459		Cover, Top Back 27 In Chassis		Appelez-nous	-
16	W10728475		Gasket, Rubber				$ 38.13
17	W10566973		Harness, Keypad (left To Center)				$ 82.19
18	W10524350		Harness, Keypad (right To Center)				$ 78.21
19	W11123146		Assembly, Speaker   (Replaces: W10568405)				$ 80.93
20	W10668510		Housing				$ 105.17
21	W10575307		Jumper Harness, Power Supply			Immediately	$ 173.84
22	W11602625		Screw (black)   (Replaces: W11339492)				$ 14.72
10A	W10655462		Bracket, Blower (right)		Appelez-nous	-
1A	W11423731		Quick Start Guide		Appelez-nous	-
1B	W11382345		Tech Sheet		Appelez-nous	-
NI	NP		Accessory Parts, Xhp1000xw White 10" Pedestal		Appelez-nous	-
NI	W11245662		Harness, Main				$ 190.04
NI	W11727826		Harness, Door Latch   (Replaces: W11264646)				$ 61.80
NI	W11249914		Harness, Signal		Appelez-nous	-
NI	W11132988		Strap, Lead Ground		Appelez-nous	-
NI	W11699910		Harness, Eol   (Replaces: W10562910)			Immediately	$ 32.95
NI	W10655464		Bracket, Harness				$ 40.71
NI	W10487999		Clip, Harness				$ 21.12
NI	4448664		Clamp, Conduit				$ 21.41
NI	4450800		Screw, Grounding				$ 13.47
NI	W11607072		Bag, Hardware   (Replaces: W11547720)			Immediately	$ 15.39
