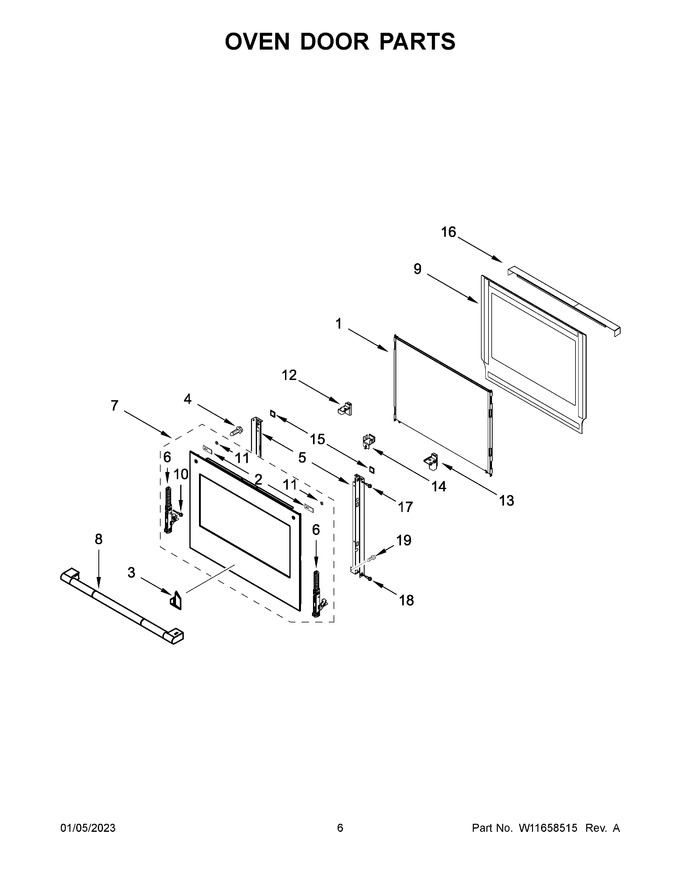

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W11602513		Air Divider Assembly   (Replaces: W11304276)		Appelez-nous	-
2	W10650497		Spacer, Handle		Appelez-nous	-
3	W11320231		Nameplate (stainless)   (Replaces: W11238657)				$ 110.78
4	W11602624		Screw (black)   (Replaces: W11317731)			Immediately	$ 14.75
5	W11598126		Rail, Door (left)   (Replaces: W11302773)				$ 43.61
6	W11394209		Hinge, Door (left)		Appelez-nous	-
7	W11602615		Door Assembly (includes Hinges) (stainless)   (Replaces: W11296089)				$ 1,212.68
8	W11349396		Assembly, Handle (stainless)   (Replaces: W11251201)		Appelez-nous	-
9	W11602631		Glass Cavity Assembly   (Replaces: W11260099)				$ 593.07
10	WP3196183		Screw   (Replaces: 3196183)			Immediately	$ 8.18
11	W11676355		Washer, Door   (Replaces: W10319024)			Immediately	$ 14.81
12	W11598130		Bracket, Glass (left)   (Replaces: W11302803)				$ 46.95
13	W11598128		Bracket, Glass (right)   (Replaces: W11302802)				$ 46.95
14	W11598131		Bracket, Glass Reinforcement   (Replaces: W11302954)				$ 13.72
15	WPW10517428		Spacer, Vent   (Replaces: W10517428)			Immediately	$ 12.44
16	W11597416		Top Vent Trim Assembly		Appelez-nous	-
17	WP694091		Screw   (Replaces: 694091)				$ 7.55
18	W11617225		Screw   (Replaces: W11290045)				$ 14.77
19	W10443110		Screw			Immediately	$ 15.25
5A	W11598127		Rail, Door (right)   (Replaces: W11302780)				$ 43.61
6A	W11394210		Hinge, Door (right)		Appelez-nous	-
