SELECT A DIAGRAM

01 - Cover Sheet

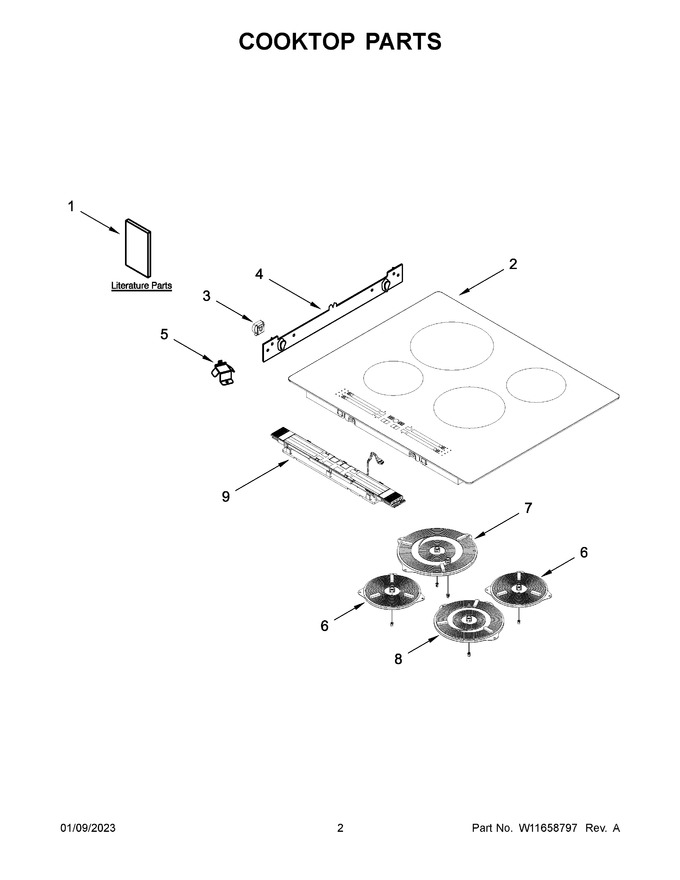

02 - Cooktop Parts


03 - Interior Parts


04 - Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W11362912		Installation Instructions		Appelez-nous	-
2	W11495303		Cooktop, Glass   (Replaces: W11267467)				$ 638.48
3	W11495019		Cooktop Spring   (Replaces: W11279477)			Immediately	$ 40.26
4	W11495626		Cooktop Support Bracket   (Replaces: W11279478)			Immediately	$ 85.59
5	W11302457		Filter Support		Appelez-nous	-
6	W11560534		Element (6 Inch) (left Front And Right Rear)   (Replaces: W11429950)			Immediately	$ 198.51
7	W11586461		Element (8 Inch) (left Rear)   (Replaces: W11429952)			Immediately	$ 225.06
8	W11560536		Element (7 Inch) (right Front)   (Replaces: W11429951)			Immediately	$ 200.09
9	W11595237		Hmi Board   (Replaces: W11524571)				$ 412.05
1A	W11245478		Instructions, Undercounter Installation		Appelez-nous	-
1B	W11213196		Owner's Manual		Appelez-nous	-
1C	W11202274		Wiring Diagram		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
