SELECT A DIAGRAM

01 - Cover Sheet


02 - Cooktop Parts

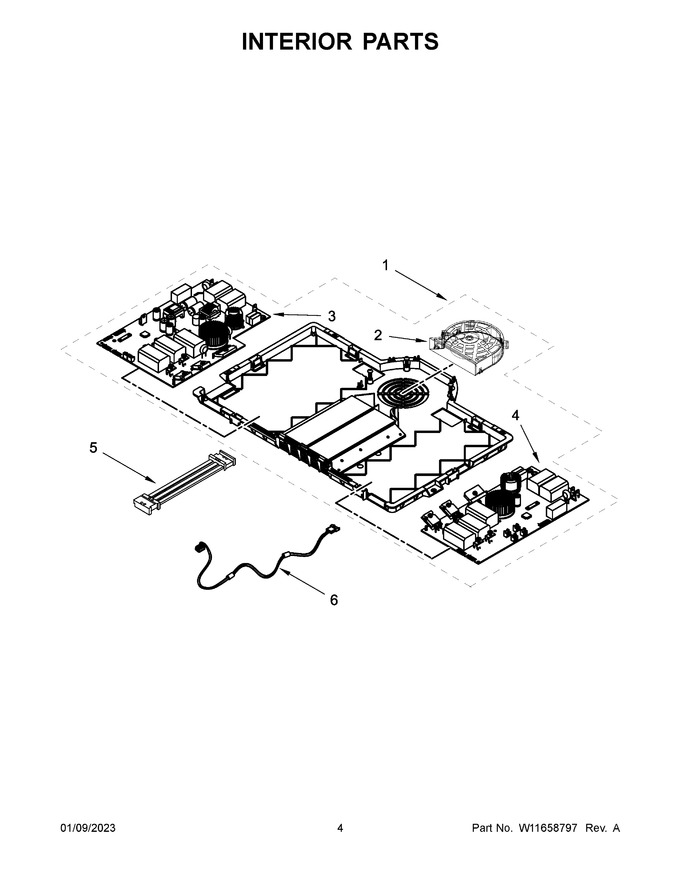

03 - Interior Parts


04 - Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W11814882		Module Assembly   (Replaces: W11470113)				$ 706.62
2	W11246545		Blower Assembly			Immediately	$ 310.94
3	W11591149		Power Board (ascari)   (Replaces: W11474692)				$ 387.77
4	W11595239		Power Board (farina)   (Replaces: W11470136)		Appelez-nous	-
5	W11249830		Communication Harness (ipc1 To Ipc2)				$ 52.94
6	W11347982		Jumper Harness (hmi To Ipc)			Immediately	$ 59.90

    View Diagram in Separate Window       Print Part List
