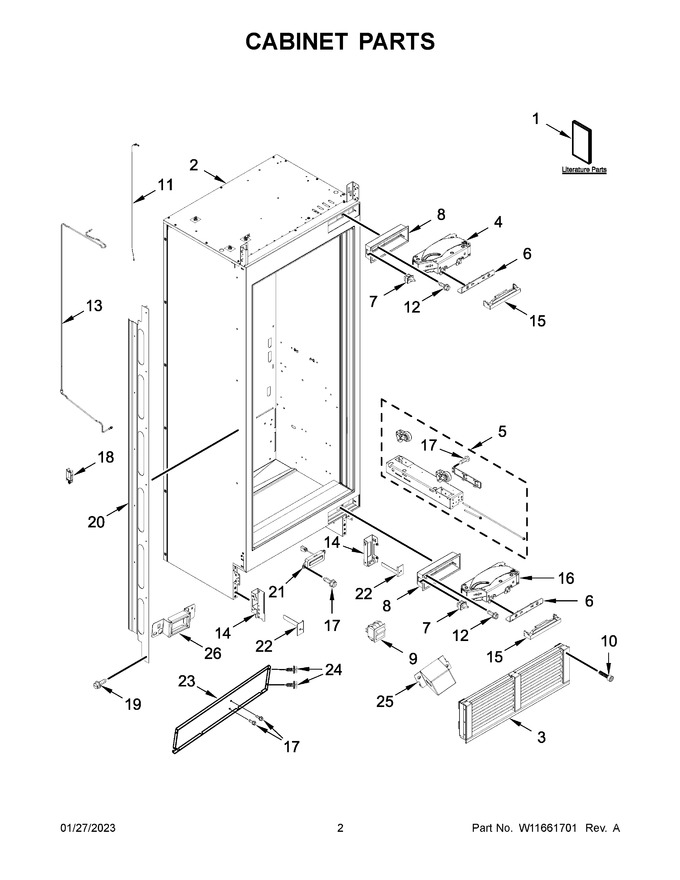

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W11362247		Use And Care Guide		Appelez-nous	-
2	NP		(parts Not Shown)		Appelez-nous	-
3	W11233347		Grille (charcoal Sparkle)   (Replaces: W10823625)				$ 435.95
4	W11233362		Hinge, Top (charcoal Sparkle)   (Replaces: W11036483)			Immediately	$ 389.71
5	W11233365		Assembly, Roller Base (left Hand)   (Replaces: W10761654)			Immediately	$ 305.74
6	W11234860		Bracket, Hinge Attach   (Replaces: W10891495)		Appelez-nous	-
7	W11642199		Switch, Light   (Replaces: W11560149)				$ 39.51
8	W11234282		Trim, Hinge (charcoal Sparkle)   (Replaces: W10900024)		Appelez-nous	-
9	W11623128		Switch, Power Disconnect   (Replaces: W11311927)				$ 125.83
10	W11247538		Screw   (Replaces: W10882791)			Immediately	$ 14.75
11	W10897083		Harness, Antenna		Appelez-nous	-
12	W10678210		Screw (black)				$ 19.80
13	W11233369		Tube, Water (also Order 2300868 - 5/16" Water Connector)   (Replaces: W11227357)				$ 132.27
14	W11028834		Assemby, Grille Mount (includes Nut) (left Hand)				$ 85.05
15	W11235093		Cover, Hinge Bracket   (Replaces: W10895127)			Immediately	$ 112.47
16	W11233372		Hinge, Bottom (charcoal Sparkle)   (Replaces: W11036493)				$ 389.71
17	WPW10141625		Screw   (Replaces: W10141625)				$ 22.22
18	W11233386		Clip, Wire   (Replaces: W10604160)		Appelez-nous	-
19	WPW10141645		Screw   (Replaces: W10141645)				$ 8.05
20	W11233379		Trim, Cabinet Side (ebony (right Hand))   (Replaces: W11111407)				$ 187.76
21	W11234285		Module, Wifi   (Replaces: W10861217)				$ 181.84
22	W10848725		Assembly, Adjustable Toekick (left Hand)				$ 164.99
23	W11618048		Panel, Mc Rear   (Replaces: W10772058)				$ 151.32
24	WP489069		Screw   (Replaces: 1157158)			Immediately	$ 8.40
25	W11415331		Cover, Power Switch		Appelez-nous	-
26	W11356980		Cover, Safety Switch		Appelez-nous	-
14A	W11028835		Assemby, Grille Mount (includes Nut) (right Hand)				$ 97.05
1A	W10898665		Energy Guide		Appelez-nous	-
1B	W11362249		Installation Instructions		Appelez-nous	-
1C	W11362242		Tech Sheet		Appelez-nous	-
20A	W11233378		Trim, Side (ebony (non-hinge Side))   (Replaces: W11111409)		Appelez-nous	-
22A	W10848724		Assembly, Adjustable Toekick (right Hand)		Appelez-nous	-
5A	W11233364		Assembly, Roller Base (right Hand)   (Replaces: W10761653)			Immediately	$ 305.83
