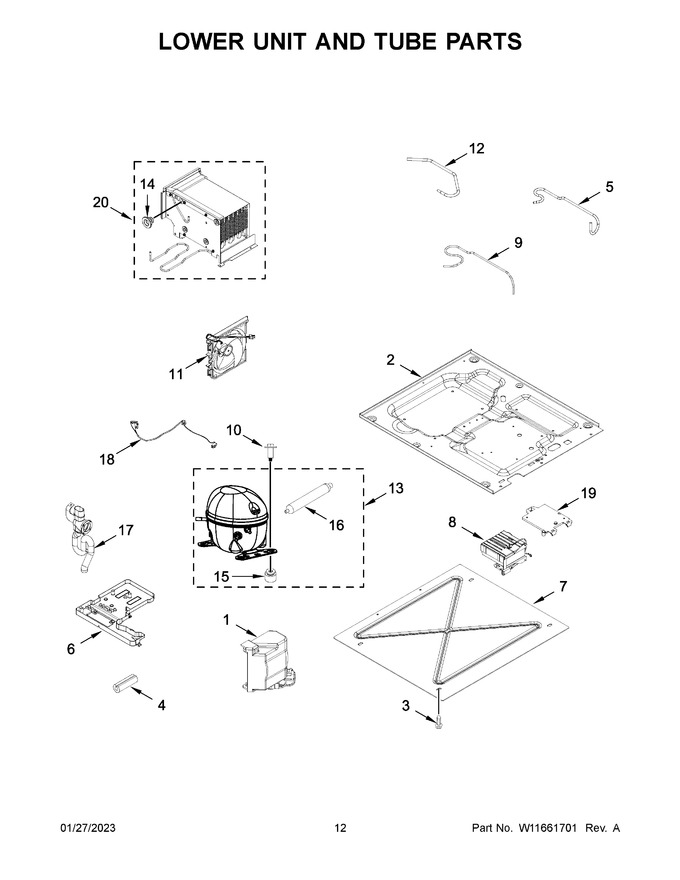

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W11247667 | Assembly, Compressor Cover (Replaces: W11235263) |
|
$ 115.24 | |||||
| 2 | W11234853 | Pan, Base (Replaces: W10761666) |
|
- | |||||
| 3 | WPW10141625 | Screw (Replaces: W10141625) |
|
$ 22.22 | |||||
| 4 | W11233644 | Grommet, Evaporator Tray (Replaces: W10886557) |
|
- | |||||
| 5 | W11644177 | Tube, Suction (Replaces: W11495450) |
|
$ 68.10 | |||||
| 6 | W11234855 | Tray, Evaporator Drain (Replaces: W10801047) |
|
- | |||||
| 7 | W11234818 | Plate, Bottom (Replaces: W10834246) |
|
- | |||||
| 8 | W11642201 | Assembly, Inverter Box (Replaces: W11346984) |
|
Immediately | $ 490.48 | ||||
| 9 | W11644175 | Tube, Discharge (Replaces: W11297133) |
|
$ 31.40 | |||||
| 10 | W11661574 | Screw (Replaces: 489473) |
|
$ 14.29 | |||||
| 11 | W11233637 | Assembly, Condenser Fan Shroud (Replaces: W10801052) |
|
Immediately | $ 315.38 | ||||
| 12 | W11646198 | Tube, Process (Replaces: W11517921) |
|
$ 39.81 | |||||
| 13 | W11557671 | Compressor (also Order The Following Lokring Parts) (Replaces: W11332037) |
|
Immediately | $ 728.13 | ||||
| 14 | W10587113 | Grommet |
|
- | |||||
| 15 | W11661108 | Grommet (Replaces: 2183042) |
|
$ 15.21 | |||||
| 16 | W11109499 | Drier (service Drier Without Dye) (also Order The Following Lokring Parts) (Replaces: W10805035) |
|
Immediately | $ 39.12 | ||||
| 17 | W11232777 | Assembly, Drain Tube (Replaces: W10781987) |
|
- | |||||
| 18 | W11644174 | Harness, Compressor (Replaces: W11411189) |
|
$ 31.59 | |||||
| 19 | W11233633 | Bracket, Inverter Mounting (Replaces: W10663674) |
|
- | |||||
| 20 | W11233634 | Condenser (includes Drain Pan Heater) (also Order The Following Lokring Parts) (Replaces: W10762098) |
|
$ 332.69 | |||||
| 13A | W11504415 | 8.5/8 Nr Ms 00 (suction Line To Evaporator) |
|
Immediately | $ 25.89 | ||||
| 13B | W11504421 | (8/5 Nr Ms 00) (high Pressure Side To Compressor) |
|
Immediately | $ 25.88 | ||||
| 13C | W11504416 | 8.5/6 Nr Ms 00 (suction Tube To Compressor) |
|
Immediately | $ 27.51 | ||||
| 16A | W11504445 | 5/4 Nr Ms 00 (heat Loop To Drier) |
|
Immediately | $ 28.92 | ||||
| 16B | W11504447 | 5/1.8 Nr Ms 00 (capillary Tube To Drier) |
|
Immediately | $ 43.90 | ||||
| 20A | W11504445 | 5/4 Nr Ms 00 (heat Loop To Drier) |
|
Immediately | $ 28.92 | ||||
| 20B | W11506623 | 5 Nk Ms 00 (discharge Tube To Condenser) |
|
Immediately | $ 22.00 | ||||
| NI | NP | (parts Not Shown) |
|
- |
