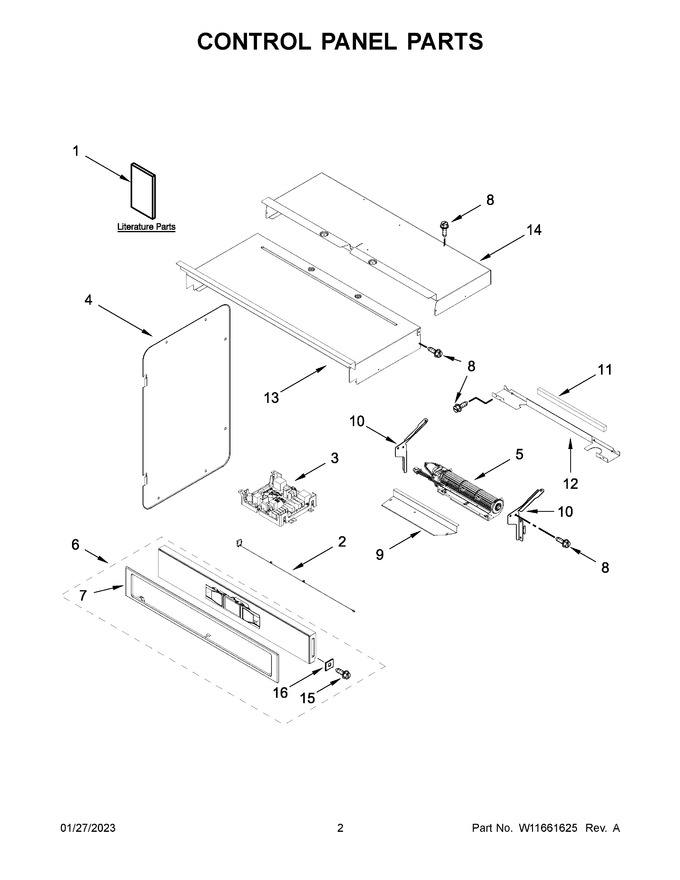

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W11382204 | Owner's Manual |
|
- | |||||
| 2 | W11537624 | Antenna (Replaces: W11409842) |
|
$ 95.45 | |||||
| 3 | W11261165 | Appliance Manager, Copernicus (with Power Supply) (Replaces: W11253186) |
|
Immediately | $ 444.58 | ||||
| 4 | W10655467 | Chassis, Combo Side |
|
$ 74.72 | |||||
| 5 | W11598119 | Blower (Replaces: W11397930) |
|
Immediately | $ 349.43 | ||||
| 6 | W11616685 | Assembly, Control Panel (includes Overlay) (stainless) (Replaces: W11304462) |
|
- | |||||
| 7 | W11112611 | Skin, Control Panel (stainless) (Replaces: W10899876) |
|
- | |||||
| 8 | 7101P42660 | Screw |
|
- | |||||
| 9 | W10681157 | Cover, Combo Blower |
|
- | |||||
| 10 | W10655463 | Bracket, Blower (left) |
|
- | |||||
| 11 | W10491987 | Block, Foam (Replaces: 4451758) |
|
Immediately | $ 7.33 | ||||
| 12 | W11166802 | Divider, Chassis Back |
|
- | |||||
| 13 | W10318159 | Chassis, Cover Top Front 27 In |
|
- | |||||
| 14 | W11037652 | Chassis, Cover Top Back 27 In Wifi |
|
- | |||||
| 15 | W11602625 | Screw (black) (Replaces: W11339492) |
|
$ 13.25 | |||||
| 16 | WP4450118 | Nut (Replaces: 4450118) |
|
$ 7.90 | |||||
| 10A | W10655462 | Bracket, Blower (right) |
|
- | |||||
| 1A | W11419188 | Quick Start Guide |
|
- | |||||
| 1B | W11416504 | Tech Sheet |
|
- | |||||
| NI | NP | (parts Not Shown) |
|
- | |||||
| NI | W11602626 | Bag, Hardware (Replaces: W11394923) |
|
$ 21.12 | |||||
| NI | W11727826 | Harness, Door Latch (Replaces: W11264646) |
|
$ 55.62 | |||||
| NI | W11256629 | Harness, Signal |
|
- | |||||
| NI | W11659369 | Harness, Main (Replaces: W11245667) |
|
$ 323.93 | |||||
| NI | W11555848 | Harness, Input |
|
- | |||||
| NI | W11797348 | Harness, Interlock (Replaces: W11555169) |
|
$ 116.76 | |||||
| NI | W11578580 | Jumper Harness, Communication (Replaces: W11539527) |
|
$ 27.22 | |||||
| NI | W11539494 | Harness, Inverter |
|
$ 39.05 | |||||
| NI | W11546965 | Harness, Fan And Turntable (Replaces: W11454022) |
|
$ 70.99 | |||||
| NI | W11356991 | Harness, Ground Console Combo |
|
- | |||||
| NI | W11356990 | Harness, Communication |
|
$ 201.99 | |||||
| NI | 4448664 | Clamp, Conduit |
|
$ 19.27 | |||||
| NI | 4450800 | Screw, Grounding |
|
$ 12.12 | |||||
| NI | 16515 | Clip, Harness (Replaces: 313438) |
|
$ 18.48 |
