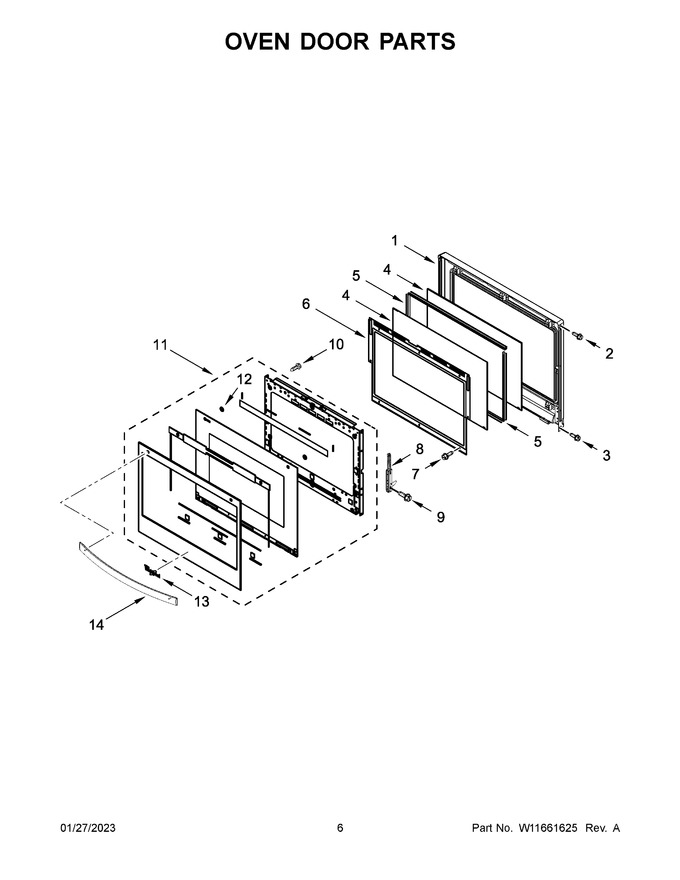

04 - Oven Door Parts


05 - Internal Oven Parts


06 - Cabinet And Stirrer Parts


07 - Internal Microwave Parts


08 - Top Venting Parts


09 - Microwave Door Parts


10 - Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W11598186		Liner Assembly   (Replaces: W11302593)				$ 371.00
2	7101P37560		Screw		Appelez-nous	-
3	WPY706189		Screw   (Replaces: W11249635)			Immediately	$ 7.55
4	WPW10284902		Glass, Inner   (Replaces: W10618123)				$ 229.81
5	W11736672		Spacer, Air Divider   (Replaces: W11302731)			Immediately	$ 54.06
6	W11598188		Retainer, Air Divider Glass   (Replaces: W11204277)				$ 81.84
7	7101P42660		Screw		Appelez-nous	-
8	W11296098		Hinge, Door (left)				$ 140.68
9	WP3196183		Screw   (Replaces: 3196183)			Immediately	$ 8.18
10	W11602624		Screw (black)   (Replaces: W11317731)			Immediately	$ 14.75
11	W11600331		Door Assembly (stainless)   (Replaces: W11296060)				$ 513.79
12	W11676355		Washer, Door   (Replaces: W10319024)			Immediately	$ 14.81
13	W11178521		Badge   (Replaces: W10884775)			Immediately	$ 63.13
14	W11113204		Handle Assembly (stainless)   (Replaces: W10880280)				$ 188.91
8A	W11296099		Hinge, Door (right)			Immediately	$ 131.04
