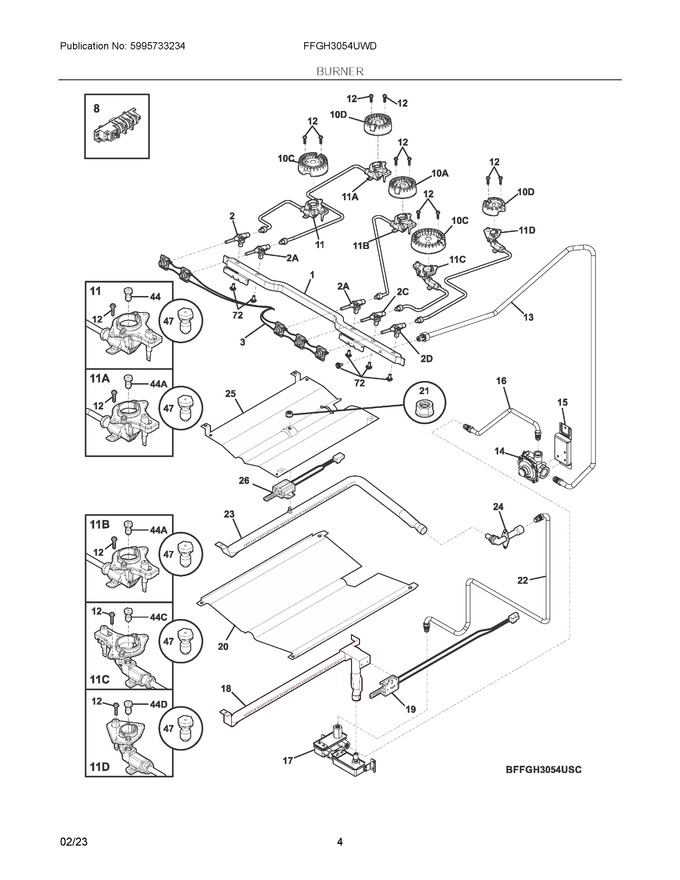

03 - Burner


04 - Body


05 - Top/drawer


06 - Door


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	5304514134		Manifold, Pipe				$ 88.99
2	5304507282		Valve, Top Burner, White Stem, 1500btu   (Replaces: 5304506550)			Immediately	$ 59.83
3	5304528832		Harness, Ignition			Immediately	$ 124.34
8	808608804		Spark Module			Immediately	$ 84.51
11	5304520384		Ignitor/orifice Assembly, 12k, Left Front, Assembly				$ 97.74
12	316540900		Screw, Burner, Head Mtg, (8)			Immediately	$ 16.85
13	5304514135		Tube, Manifold Supply		Appelez-nous	-
14	316091711		Regulator, Pressure   (Replaces: 5304498819)			Immediately	$ 100.03
15	316603300		Bracket, Regulator				$ 25.28
16	5304514182		Tube, Safety Valve		Appelez-nous	-
17	316031501		Valve, Safety			Immediately	$ 329.18
18	316404400		Burner, Oven				$ 121.22
19	316489403		Ignitor, Bake   (Replaces: 5304508786)			Immediately	$ 125.72
20	5304519024		Baffle, Oven Burner			Immediately	$ 89.32
21	154079601		Nut, Hex Head Sems   (Replaces: 5303013272)				$ 0.46
22	5304514183		Tube, Safety Valve, To Mixer		Appelez-nous	-
23	316404302		Burner, Broiler				$ 115.76
24	5304516894		Elbow, Mixer				$ 96.90
25	5304497666		Baffle, Broiler				$ 104.49
26	5304506545		Ignitor, Broiler			Immediately	$ 104.68
35	5304508440		Bushing, Insulating			Immediately	$ 12.64
47	GRLP4		Lp Conversion Kit, W/instructions, Optional, Accessory			Immediately	$ 63.00
72	316215600		Screw, Valve Mtg., 1/4 - 20			Immediately	$ 15.75
10A	5304520368		Burner, Crown, Medium, Aft				$ 27.80
10C	5304520369		Burner, Crown, Large, Aft			Immediately	$ 40.56
10D	5304520367		Burner, Crown, Small, Aft			Immediately	$ 22.75
11A	5304520385		Ignitor/orifice Assembly, 9.5k, Left Rear, Assembly				$ 93.53
11B	5304520922		Ignitor/orifice Assy., Top Burner, Center, 9.5k, W/holder, Tube				$ 91.84
11C	5304520923		Ignitor/orifice Assy., Top Burner, Rh Front, 17k, W/holder, Tube				$ 98.65
11D	5304520921		Ignitor/orifice Assy., Top Burner, Rh Rear, 5k, W/holder, Tube				$ 109.55
2A	5304506547		Valve, Top Burner, Black Stem, 500btu				$ 76.68
2B	5304506549		Valve, Top Burner, Blue Stem, 1125btu			Immediately	$ 69.27
2C	5304506548		Valve, Top Burner, Green Stem, 850btu			Immediately	$ 91.84
NI	241500305		Screw, Self Pierce, #8, 18x.63   (Replaces: 297174300)				$ 3.37
NI	316001017		Screw, Ground Wire   (Replaces: 316001003)				$ 3.37
NI	316498100		Shield, Wire, Safety Valve				$ 16.85
NI	316021104		Screw, Hex, 8-18 X 3/8, Nick, (3), Regulator Brkt				$ 8.66
NI	316021109		Screw, Hex Head Cup Pt, 8-18 X 0.375, Black   (Replaces: 316021105)			Immediately	$ 30.55
NI	316089500		Screw, 10-16 X .486				$ 14.96
NIA	5304505563		Wire, Ground, Spark Module, W/connector			Immediately	$ 18.03
NIA	316401500		Cover, Broil Ignitor				$ 14.32
