SELECT A DIAGRAM

01 - Cover Sheet


02 - Backguard


03 - Burner


04 - Body


05 - Top/drawer


06 - Door

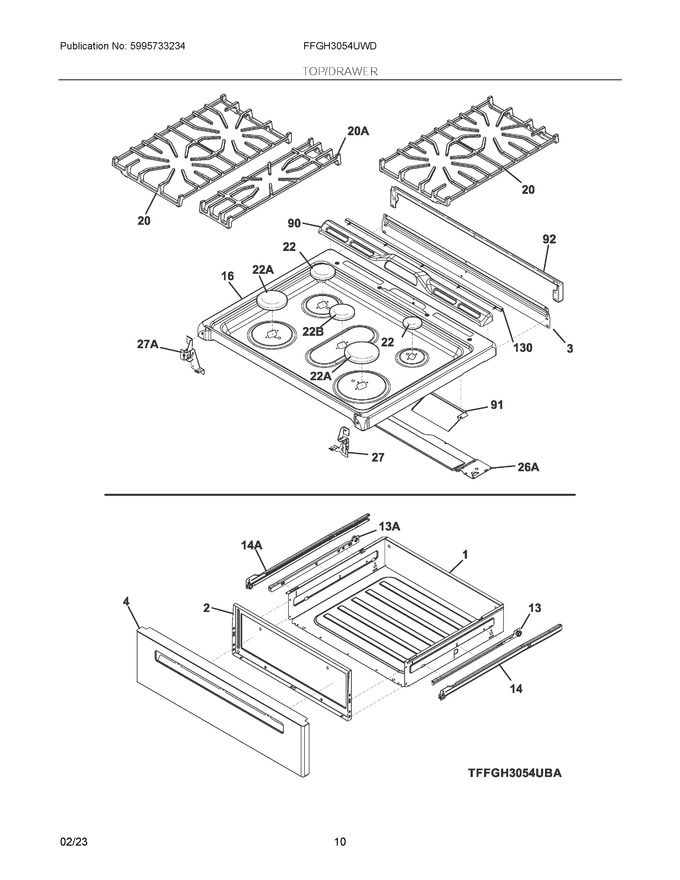

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	316408706		Drawer, Utility			Immediately	$ 122.90
2	5304527988		Liner, Drawer			Immediately	$ 29.49
3	5304514133		Shield, Rear Wall, Upper				$ 38.77
4	5304513124		Panel, Drawer, White				$ 100.95
13	5304517905		Glide, Drawer, Black, Rh Inner				$ 18.54
14	5304517904		Glide, Drawer, Black, Rh Outer			Immediately	$ 28.65
16	5304521980		Maintop, Assembly, White				$ 200.03
20	5304518358		Grate, Burner, Black, Side, (2)				$ 131.45
22	5304520370		Cap, Burner, Small, Black			Immediately	$ 17.36
27	5304514123		Bracket, Mounting, Rh, Cooktop				$ 15.17
90	5304521979		Trim Vent, Vent, White, Rear		Appelez-nous	-
91	5304514181		Deflector, Moisture, (2)				$ 11.81
92	5304520261		Rear Filler Kit, Fcfs Range, Black			Immediately	$ 182.01
130	808931802		Seal, Maintop, Silicone, Rear				$ 44.66
13A	5304517903		Glide, Drawer, Black, Lh Inner				$ 32.19
14A	5304517902		Glide, Drawer, Black, Lh Outer			Immediately	$ 53.31
20A	5304518359		Grate, Burner, Black, Center				$ 133.14
22A	5304520371		Cap, Burner, Medium, Black			Immediately	$ 21.91
22B	5304520372		Cap, Burner, Large, Black			Immediately	$ 25.28
26A	5304514126		Bracket, Support, Rear, Chassis		Appelez-nous	-
27A	5304514124		Bracket, Mounting, Lh, Cooktop				$ 15.17
NI	316021109		Screw, 8-18 X 0.5, Chrome			Immediately	$ 30.55
NI	316089500		Screw, 10-16 X .486				$ 14.96
NI	316021109		Screw, Hex Head Cup Pt, 8-18 X 0.375, Black   (Replaces: 316021105)			Immediately	$ 30.55

    View Diagram in Separate Window       Print Part List
