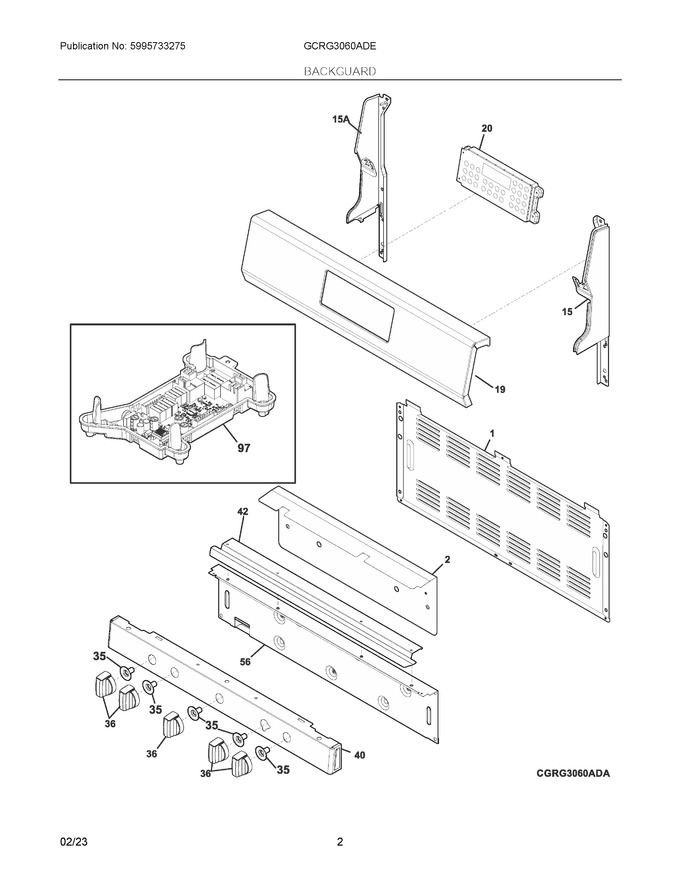

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	316281802		Shield, Backguard, Rear Wall				$ 64.04
2	5304508980		Shield, Backguard, Inner		Appelez-nous	-
15	5304493644		Cap, End, Black, Rh				$ 74.15
19	5304509142		Panel, Backguard, Black Stainless				$ 242.90
20	5304523299		Control, Electronic, Voltron			Immediately	$ 325.10
35	316354300		Shield, Heat, Knob				$ 11.81
36	5304509240		Knob, Top Valve, Black Stainless				$ 78.75
40	316606127		Panel-manifold, Black Stainless		Appelez-nous	-
42	808754601		Deflector, Backguard				$ 86.63
56	316230708		Shield, Backguard, Inner				$ 68.51
97	5304516862		Board, Pc, Oven Relay			Immediately	$ 367.41
15A	5304493646		Cap, End, Black, Lh			Immediately	$ 74.15
NI	316021109		Screw, Hex Head Cup Pt, 8-18 X 0.375, Black   (Replaces: 316021105)			Immediately	$ 30.55
NI	5304523296		Harness, Communication				$ 31.17
NI	316457000		Retainer, Wire, P-lock, Stick On		Appelez-nous	-
NI	316021109		Screw, 8-18 X 0.5, Chrome			Immediately	$ 30.55
NI	316089500		Screw, 10-16 X .486				$ 14.96
NI	316519700		Screw, Cup Pt, 8-18 X 0.375, Chrome   (Replaces: 316021108)				$ 11.13
NI	5304522013		Harness, Ovc3				$ 57.30
