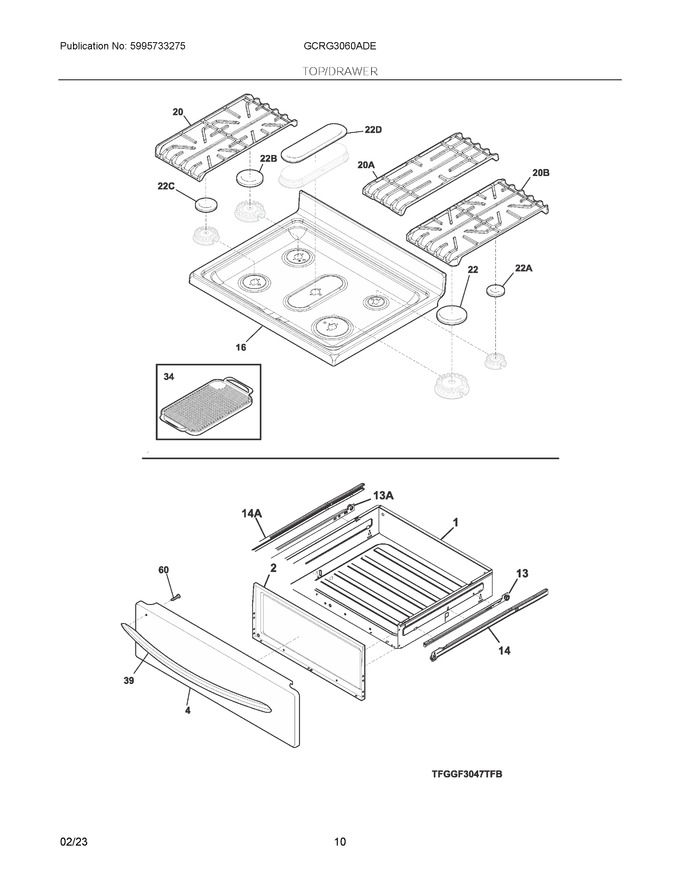

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	316408706		Drawer, Utility			Immediately	$ 122.90
2	5304527988		Liner, Drawer			Immediately	$ 29.49
4	5304517133		Panel, Drawer, Black Stainless				$ 215.54
13	5304517905		Glide, Drawer, Black, Rh Inner				$ 18.54
14	5304517904		Glide, Drawer, Black, Rh Outer			Immediately	$ 28.65
16	316610014		Main Top, Black			Immediately	$ 281.14
20	808754701		Grate, Black, Lh				$ 214.99
22	5304527846		Cap-burner, 17k, Black, Matte, 3mm				$ 31.17
34	5304495353		Griddle			Immediately	$ 185.38
39	316554009		Handle, Door/drawer, Black Stainless, W/spacers				$ 210.45
60	5303288572		Screw-handle Mtg		Appelez-nous	-
13A	5304517903		Glide, Drawer, Black, Lh Inner				$ 32.19
14A	5304517902		Glide, Drawer, Black, Lh Outer			Immediately	$ 53.31
20A	808754801		Grate, Black, Center				$ 218.93
20B	808754702		Grate, Black, Rh				$ 214.99
22A	5304524590		Cap-burner, 5a, Black, Matte, 3mm				$ 21.06
22B	5304527845		Cap-burner, 14k, Black, Matte, 3mm				$ 25.28
22C	5304508442		Cap-burner, 9.5k, Black, Matte, 3mm   (Replaces: 5304527843)			Immediately	$ 40.61
22D	316559604		Cap, 9.5k Burner, Black, Oval				$ 80.33
NI	316021109		Screw, 8-18 X 0.5, Chrome			Immediately	$ 30.55
NI	316089500		Screw, 10-16 X .486				$ 14.96
NI	316519700		Screw, Cup Pt, 8-18 X 0.375, Chrome   (Replaces: 316021108)				$ 11.13
NI	316021109		Screw, Hex Head Cup Pt, 8-18 X 0.375, Black   (Replaces: 316021105)			Immediately	$ 30.55
