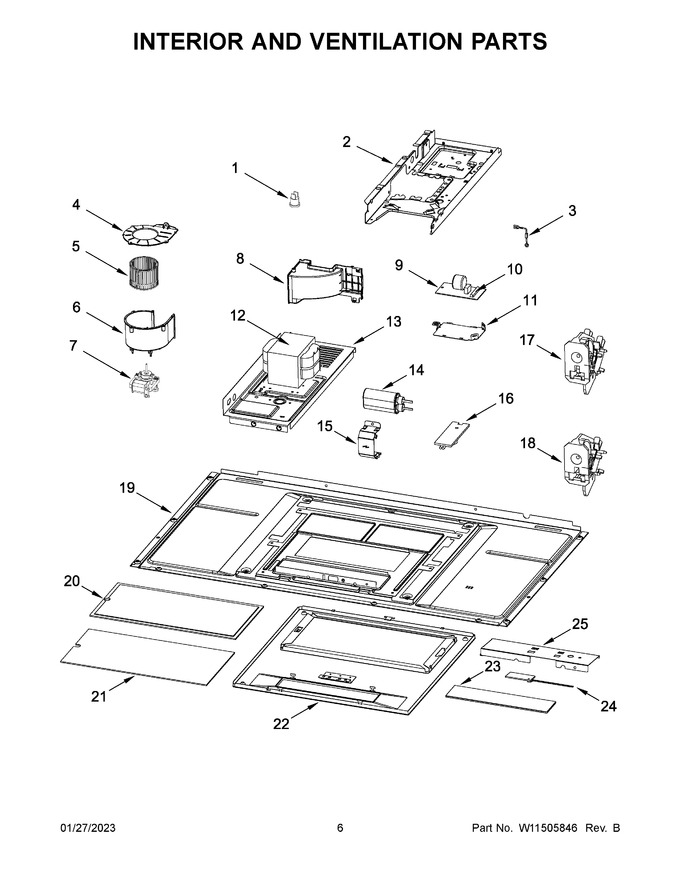

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W11378281		Thermostat, Cavity				$ 37.39
2	W11440761		Plate, Chassis		Appelez-nous	-
3	W11817793		Diode, High Voltage   (Replaces: W10492278)		Appelez-nous	-
4	W11752349		Cover, Cooling Fan   (Replaces: W11088345)				$ 28.34
5	W11088354		Wheel, Cooling Fan			Immediately	$ 100.03
6	W11213349		Housing, Cooling Fan   (Replaces: W11088352)				$ 81.13
7	W11443135		Motor, Cooling Fan   (Replaces: W11425919)				$ 93.39
8	W11088358		Air Guide, Magnetron		Appelez-nous	-
9	WPW10531156		Board, Filter   (Replaces: W10531156)			Immediately	$ 56.88
10	W11707984		Fuse   (Replaces: W10138793)			Immediately	$ 45.85
11	W10313274		Bracket, Noise Filter				$ 32.32
12	W11440448		Transformer, High Voltage				$ 271.96
13	W11164809		Chassis, Transformer				$ 130.06
14	W11213318		Capacitor, High Voltage   (Replaces: W11196080)				$ 192.01
15	W11095808		Bracket, Capacitor		Appelez-nous	-
16	W10536989		Thermistor, Pcba			Immediately	$ 38.68
17	W11551558		Assembly, Interlock (includes Switches)   (Replaces: W11433682)			Immediately	$ 33.70
18	W11443129		Assembly, Lower Interlock (includes Switches)   (Replaces: W11439341)			Immediately	$ 38.86
19	W11404327		Plate, Bottom		Appelez-nous	-
20	W11383755		Filter, Grease   (Replaces: W11371546)			Immediately	$ 16.82
21	W11443141		Filter, Charcoal   (Replaces: W11330263)			Immediately	$ 17.66
22	W11443140		Cover, Lighting Glass   (Replaces: W11404381)		Appelez-nous	-
23	WPW10210875		Glass, Lamp   (Replaces: W10210875)				$ 350.94
24	W11443139		Lamp, Led   (Replaces: W11384716)				$ 84.81
25	W11086295		Reflector, Lamp				$ 78.51

    View Diagram in Separate Window       Print Part List
