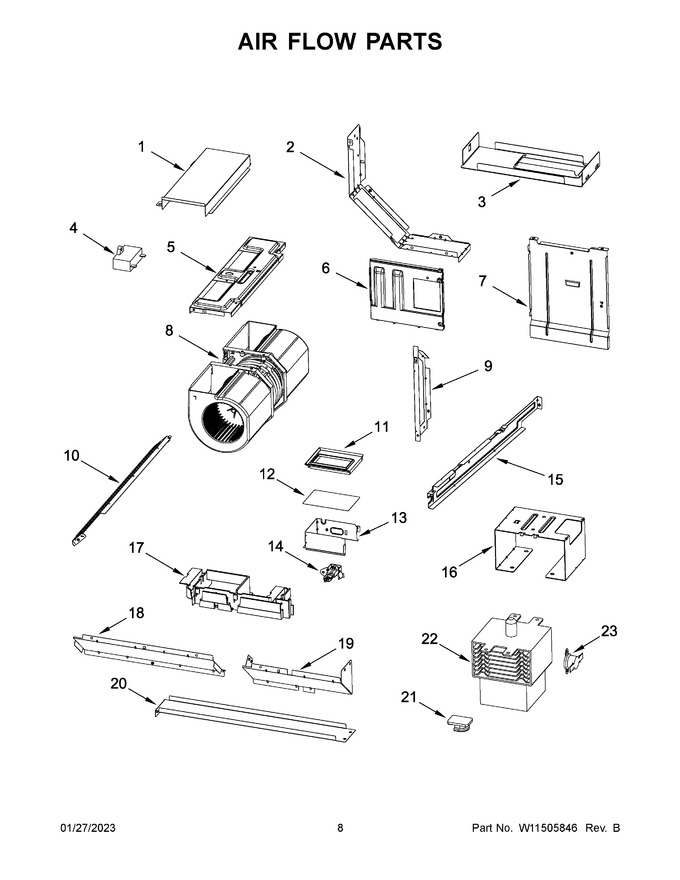

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W11108230		Outlet, Cavity (back)		Appelez-nous	-
2	W11332408		Air Deflector, Right		Appelez-nous	-
3	W11096347		Seal, Waterproof				$ 15.06
4	W11405831		Capacitor, Motor				$ 44.36
5	W11086272		Chassis, Fan		Appelez-nous	-
6	W11095794		Deflector, Cooling Fan		Appelez-nous	-
7	W11095804		Hood Deflector, Right		Appelez-nous	-
8	W11373008		Motor, Hood (400 Cfm)				$ 200.38
9	W11333183		Hood Deflector, Left		Appelez-nous	-
10	W11095830		Air Guide, Left		Appelez-nous	-
11	W11178702		Seal, Lighting		Appelez-nous	-
12	W11186948		Foil, Lamp				$ 78.81
13	W11086300		Housing, Cavity Lighting		Appelez-nous	-
14	W10709921		Lamp, Halogen			Immediately	$ 21.22
15	W11329307		Divider, Air		Appelez-nous	-
16	W11323215		Housing, Tranformer		Appelez-nous	-
17	W11099491		Holder, Wire		Appelez-nous	-
18	W11095828		Channel, Hood Back		Appelez-nous	-
19	W11320082		Air Guide, Right		Appelez-nous	-
20	W11320075		Air Guide, Bottom		Appelez-nous	-
21	W11126543		Seal, Rubber		Appelez-nous	-
22	W11652048		Magnetron   (Replaces: W11334527)			Immediately	$ 128.60
23	W11443128		Thermostat, Magnetron   (Replaces: W11378280)				$ 19.60
