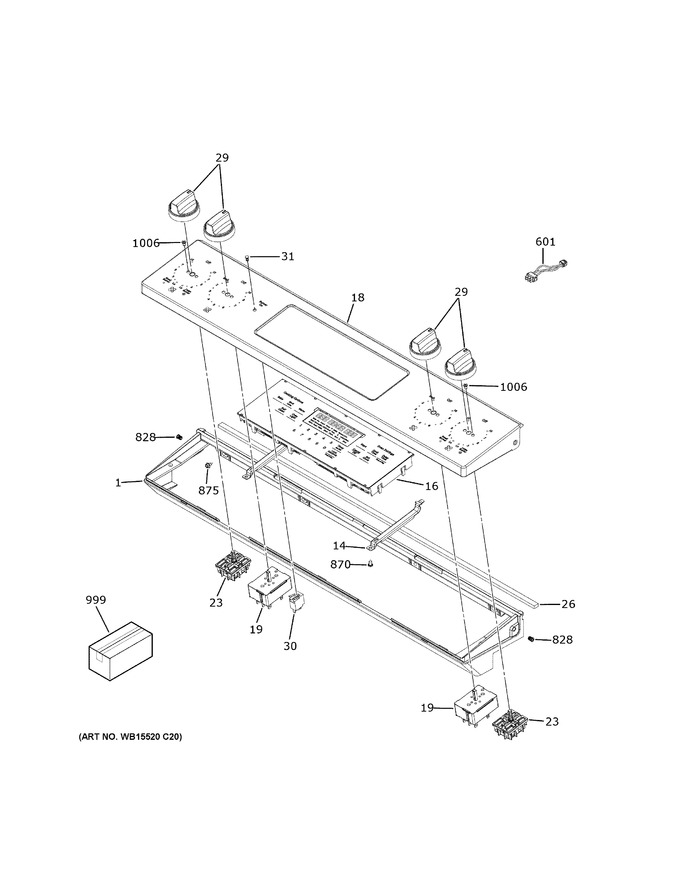

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | WB07X29081 | Control Panel Trim Asm |
|
- | |||||
| 14 | WB34X29472 | Control Bracket |
|
- | |||||
| 16 | WB27X38678 | Oven Control & Faceplate |
|
- | |||||
| 18 | WB07X30058 | Control Panel Overlay Asm |
|
- | |||||
| 19 | WB24T10022 | Inf Switch Control 1250w |
|
$ 48.75 | |||||
| 23 | WB24X25013 | Switch Infinite Control |
|
- | |||||
| 26 | WB35X29473 | Control Panel Gasket |
|
- | |||||
| 29 | WB03X34871 | Stainless Infinite Knob |
|
- | |||||
| 30 | WB25X20005 | Light Indicator Pilot |
|
- | |||||
| 31 | WB25X24023 | Lens |
|
- | |||||
| 601 | WB18X30745 | Lead Wire 14 Ga Gn |
|
- | |||||
| 828 | WB01X29474 | Insert Plug |
|
- | |||||
| 870 | WB1X5904 | Scr 8-18 Ba Por 3/4 Sn |
|
- | |||||
| 875 | WG04A00781 | Screw 8-18 Ab Hxw 3/8 (Replaces: WH2X930) |
|
Immediately | $ 3.57 | ||||
| 999 | 31-10781 | Pm Install Instructions |
|
- | |||||
| 999 | 31-10617 | Instruction Install |
|
- | |||||
| 999 | 49-2000997 | Pm Owners Manual |
|
- | |||||
| 999 | 31-11105 | Pm Instructions Install |
|
- | |||||
| 1006 | WB01X23501 | Scr 8-32 Tt Flp .270 |
|
- |
