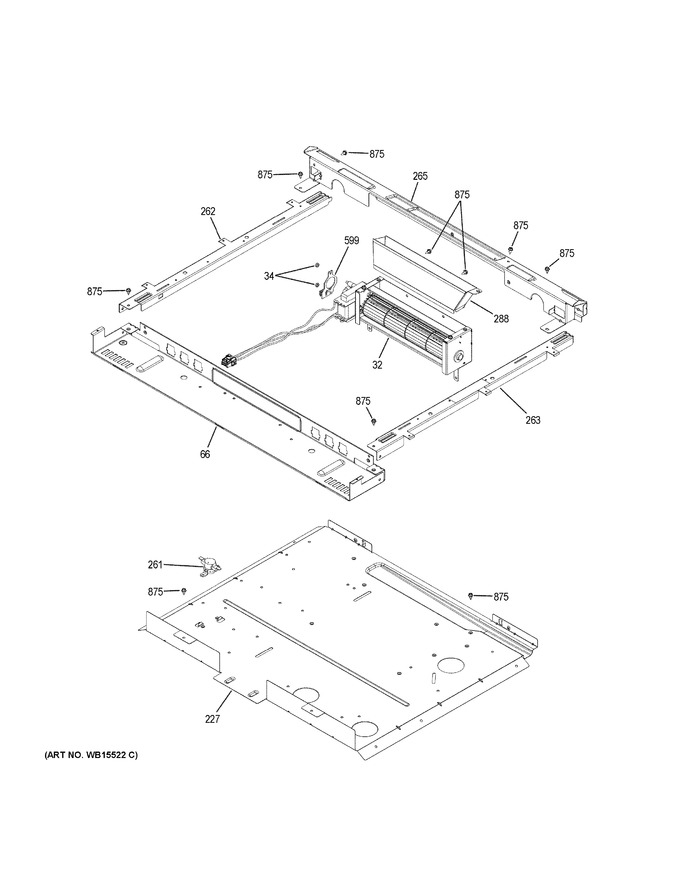

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 32 | WB26X29468 | Cooling Fan Asm |
|
- | |||||
| 34 | WB01T10133 | Nut Hex M4-.7 Thread |
|
- | |||||
| 66 | WB34X29190 | Enclosure Control |
|
- | |||||
| 227 | WB34X32516 | Top Insulation Retainer |
|
- | |||||
| 261 | WB24X29064 | Switch High Limit |
|
- | |||||
| 262 | WB07X33023 | Chassis Brace Lt |
|
- | |||||
| 263 | WB07X29079 | Chassis Brace Rt |
|
- | |||||
| 265 | WB07X29632 | Rear Trim Support |
|
- | |||||
| 288 | WB34X29483 | Cooling Fan Duct |
|
- | |||||
| 599 | WB27X28659 | Board Sensor |
|
- | |||||
| 875 | WG04A00781 | Screw 8-18 Ab Hxw 3/8 (Replaces: WH2X930) |
|
Immediately | $ 3.57 |
