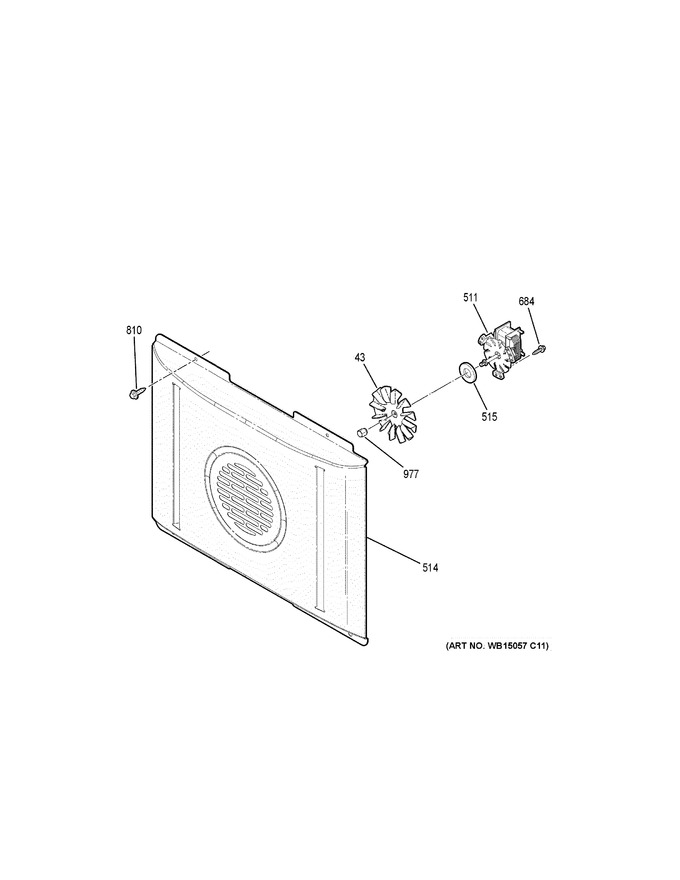

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 43 | WB02X26501 | Convection Fan Blade |
|
- | |||||
| 511 | WB26X26500 | Motor Convx |
|
- | |||||
| 514 | WB34X31766 | Black Convection Fan Cover |
|
- | |||||
| 515 | WB02T10514 | Gasket Conv Fan |
|
- | |||||
| 684 | WH00X278 | Screw |
|
- | |||||
| 810 | WB01M10002 | Screw |
|
- | |||||
| 977 | WB01X26247 | Nut |
|
- |
