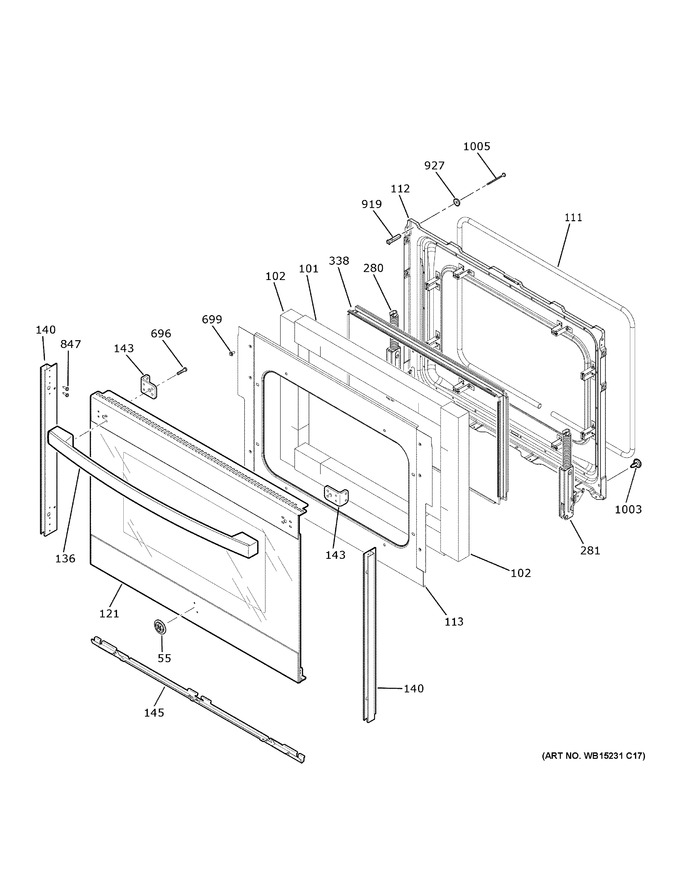

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
55	WB02X29479		Flat Badge Asm		Appelez-nous	-
101	WB35X30053		Oven Door Insulation Side		Appelez-nous	-
102	WB35X30053		Oven Door Insulation Side		Appelez-nous	-
111	WB04T10076		Gasket Ovn Dr		Appelez-nous	-
112	WB63X32774		Oven Door Liner Asm		Appelez-nous	-
113	WB02T10371		Retainer Insln Ovn Dr		Appelez-nous	-
121	WB56X43433		Lower Outer Door-stainless		Appelez-nous	-
136	WB15X42631		Handle & Endcap Asm (ss)		Appelez-nous	-
140	WB56X36308		Frame Lower Door Side		Appelez-nous	-
143	WB34X25638		Bracket Door Handle (bk)		Appelez-nous	-
145	WB07X42994		Door Gap Filler		Appelez-nous	-
280	WB10X30491		Door Hinge Lt		Appelez-nous	-
281	WB10X30492		Door Hinge Rt		Appelez-nous	-
338	WB56X22160		Window Pack Asm		Appelez-nous	-
696	WG02A00792		Screw   (Replaces: WB1K5157)				$ 3.57
699	WB1K5150		Screw St10-16 X 7/16"		Appelez-nous	-
847	WB01T10046		Wz4x245d		Appelez-nous	-
919	WB02X25272		Spacer Door		Appelez-nous	-
927	WB0X6723		Washer		Appelez-nous	-
1003	WS01A01018		Screw 10-32 Tr T   (Replaces: WB01T10008)			Immediately	$ 3.57
1005	WB01X21650		Scr 8-18 Ab Trt20nbs 5/8		Appelez-nous	-
