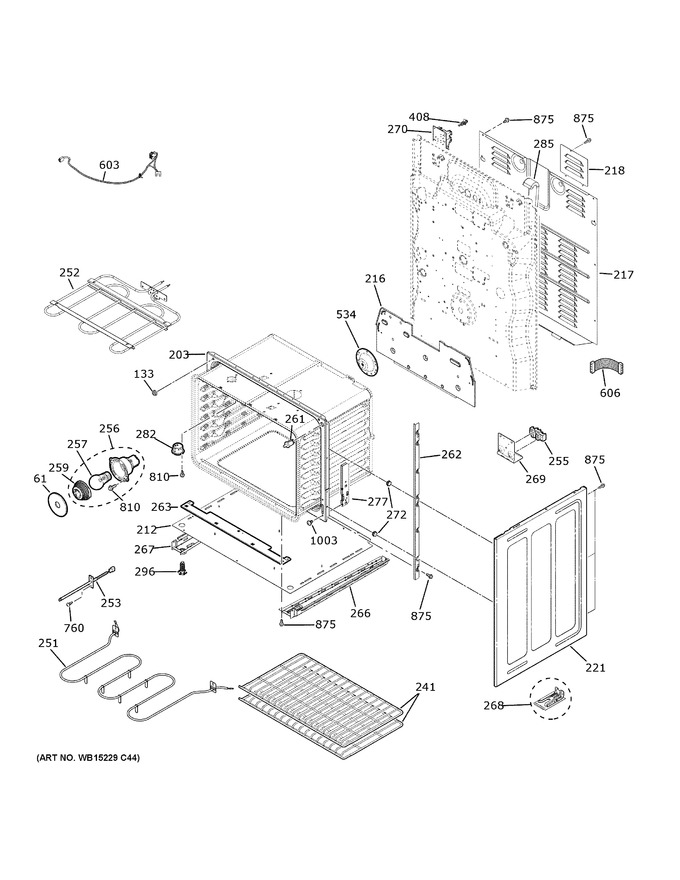

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
61	WB04T10021		Gasket Oven Light		Appelez-nous	-
133	WG02F03972		Door Bumper   (Replaces: WB01T10022)				$ 5.72
203	WB63X20864		Frame Front Lwr (bk)		Appelez-nous	-
212	WB63X25990		Base Dual Cavity		Appelez-nous	-
216	WB02X20855		Shield Heat Back		Appelez-nous	-
217	WB02T10575		Cover Wire Main		Appelez-nous	-
218	WB02T10564		Cover Terminal Block		Appelez-nous	-
221	WB63X28679		Side Panel Dg		Appelez-nous	-
241	WB48T10076		Rack Oven		Appelez-nous	-
251	WB44X45493		Unit Bake Asm (lwr)		Appelez-nous	-
251	WB44T10103		Unit Bake Asm (lwr)		Appelez-nous	-
252	WB44X21400		Shield Broil Asm		Appelez-nous	-
252	WB44X45490		Broil Shield		Appelez-nous	-
253	WS01F02431		Sensor Asm   (Replaces: WB21X22134)			Immediately	$ 27.18
255	WB17X38438		Block Terminal Asm		Appelez-nous	-
256	WG02F01227		Oven Lamp Holder Asm   (Replaces: WB08T10002)				$ 57.24
257	40A15		40watt 15amp			Immediately	$ 1.98
259	WG02F05612		Oven Bulb Lens   (Replaces: WB25T10002)			Immediately	$ 25.73
261	WG02F04509		Switch Spdt High Amp   (Replaces: WB24T10147)				$ 27.16
262	WB07T10621		Trim Vertical Sides		Appelez-nous	-
263	WB34X42993		Cover Front		Appelez-nous	-
266	WB02T10353		Base Rail		Appelez-nous	-
267	WB02T10352		Base Rail		Appelez-nous	-
268	WB02T10578		Anti-tip Bracket Asm		Appelez-nous	-
269	WB02T10542		Bracket Strain Relief		Appelez-nous	-
270	WB27X29201		Relay Daughter Board		Appelez-nous	-
272	WG02L01603		Side Panel Support   (Replaces: WB02T10034)				$ 4.20
277	WB10X30495		Hinge Receiver		Appelez-nous	-
282	WB34X25232		Tube Vnt Asm Lwr		Appelez-nous	-
285	WB34X25232		Tube Vnt Asm Lwr		Appelez-nous	-
296	WG02A00475		Leg Leveler   (Replaces: WB02X10521)			Immediately	$ 5.72
408	WB02T10477		Pcb Standoff		Appelez-nous	-
534	WB02X20947		Support Ovn Cav (bk)		Appelez-nous	-
603	WB18X32732		Plunger Switch Harness		Appelez-nous	-
603	WB18X46480		Plunger Switch Harness		Appelez-nous	-
606	WB18X32779		Bake Element Harness		Appelez-nous	-
760	WB1K5028		Screw		Appelez-nous	-
810	WB01M10002		Screw		Appelez-nous	-
875	WG04A00781		Screw 8-18 Ab Hxw 3/8   (Replaces: WH2X930)			Immediately	$ 3.57
1003	WS01A01018		Screw 10-32 Tr T   (Replaces: WB01T10008)			Immediately	$ 3.57
