Control Panel
Convection Fan
Cooktop
Lower Door
Lower Oven
Upper Door
Upper Oven
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|

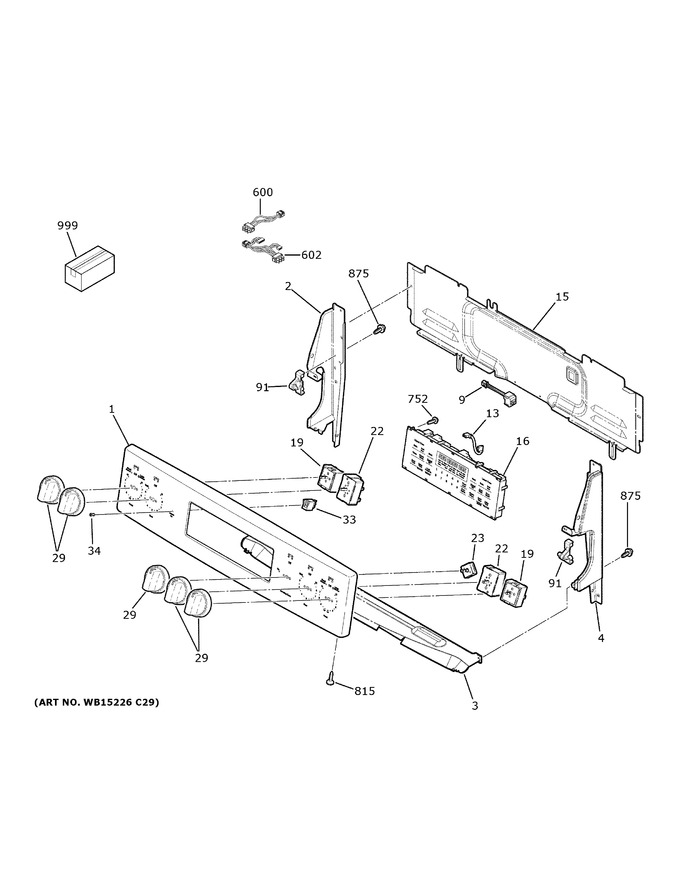

| 1 | WB07X37727 | Slate Control Panel Trim |
|
- | |||||
| 2 | WB07X29534 | End Plate Lh Dg |
|
- | |||||
| 3 | WB34X28565 | Backguard Shield Heat |
|
- | |||||
| 4 | WB07X29535 | End Plate Rh Dg |
|
- | |||||
| 9 | WB18X29523 | Rj45 Connector Harness |
|
- | |||||
| 9 | WB27X30706 | Rj45 Connector And Harness |
|
- | |||||
| 13 | WB18X30704 | Jumper |
|
- | |||||
| 15 | WB34X25565 | Cover Control |
|
- | |||||
| 16 | WB27X41655 | Oven Control & Faceplate |
|
- | |||||
| 19 | WB24X25013 | Switch Infinite Control |
|
- | |||||
| 22 | WB24T10022 | Inf Switch Control 1250w |
|
$ 48.75 | |||||
| 23 | WB24X40051 | Switch Rotary |
|
- | |||||
| 29 | WB03X24965 | Knob Infinite (ch) |
|
- | |||||
| 33 | WB25X20005 | Light Indicator Pilot |
|
- | |||||
| 34 | WB25X24023 | Lens |
|
- | |||||
| 91 | WB10T10116 | Pin Rangetop Hinge |
|
- | |||||
| 600 | WB18X32781 | Infinite Switch Harness |
|
- | |||||
| 602 | WB18X36314 | Harness Wire Ui Com |
|
- | |||||
| 752 | WG02A00488 | Screw (Replaces: WB1K5200) |
|
$ 4.20 | |||||
| 815 | WB01X26365 | Scr 8-18 Ab #60rh 1/2 Ni |
|
- | |||||
| 875 | WG04A00781 | Screw 8-18 Ab Hxw 3/8 (Replaces: WH2X930) |
|
Immediately | $ 3.57 | ||||
| 999 | 49-2000998 | Pm Owners Manual |
|
- | |||||
| 999 | 31-10816 | Pm Instructions Install |
|
- | |||||
| 999 | 31-10661 | Instruction Install |
|
- | |||||
| 999 | 31-10781 | Pm Install Instructions |
|
- | |||||
| 999 | 31-2000729 | Pm Mini Manual And Wiring |
|
- |
