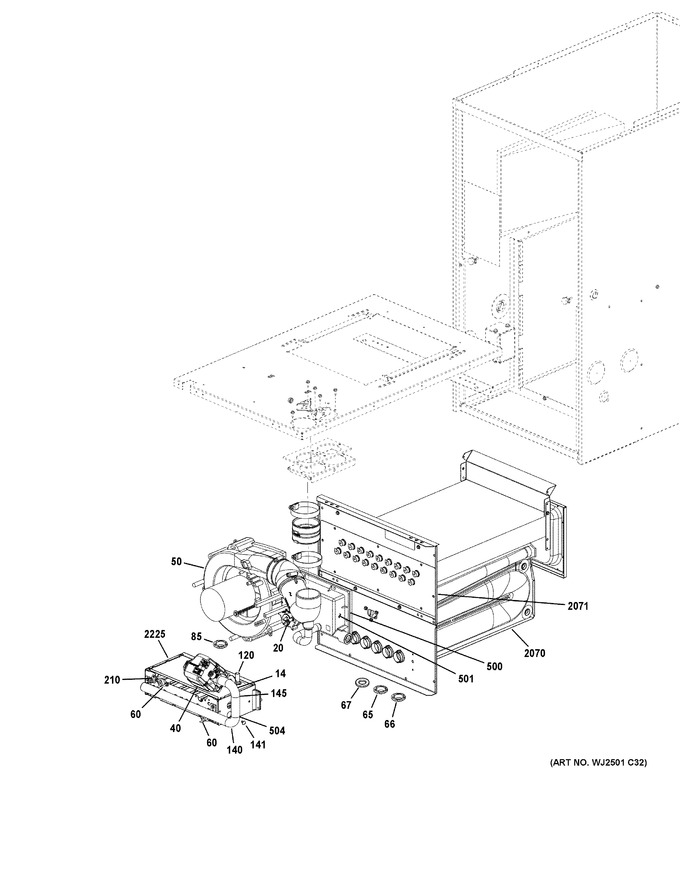

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 14 | 15P55 | Elbow - Gas/air-(cto) |
|
- | |||||
| 20 | 15P85 | 105078-01 Switch-pressure .55 |
|
- | |||||
| 40 | 15D34 | 103016-03 Valve-gas (modulating) |
|
- | |||||
| 50 | 20M31 | Cai Repl Kit (105035-03)-(cto) |
|
- | |||||
| 60 | 66J78 | 66j7801 Rollout Limit |
|
- | |||||
| 65 | 15V47 | Gkt-graphite Brnr/cc,040-060-(cto) |
|
- | |||||
| 66 | 15V48 | Gkt-graphite Brnr/plen 040/060-(cto) |
|
- | |||||
| 67 | 16A58 | 105165-01, Gasket-graphite, Igniter/sens |
|
- | |||||
| 85 | 15V93 | Gkt-brnr Box/vest Pnl,040/060-(cto) |
|
- | |||||
| 120 | 15K17 | 617498-01 Ignitor Assy |
|
- | |||||
| 140 | 105020-06 | Manifold Uln Nozzle Assy-(cto) |
|
- | |||||
| 141 | 19X30 | Uln Air Orifice 1.000" Dia-(cto) |
|
- | |||||
| 145 | 15V45 | O-ring,manifold/elbow-(cto) |
|
- | |||||
| 210 | 15K16 | Flame Sensor - Uln-(cto) |
|
- | |||||
| 500 | 15V90 | Gkt-collector Box,060-(cto) |
|
- | |||||
| 501 | 15P44 | Plenum -gas/air-(cto) |
|
- | |||||
| 504 | 15K20 | O-ring, Elbow/plenum-(cto) |
|
- | |||||
| 2070 | 15M01 | Hx Assy Kit Sl280nv-060a-(cto) |
|
- | |||||
| 2071 | 15P63 | Assy-heat Shield-(cto) |
|
- | |||||
| 2225 | 15P33 | Burner - Premix-(cto) |
|
- |
