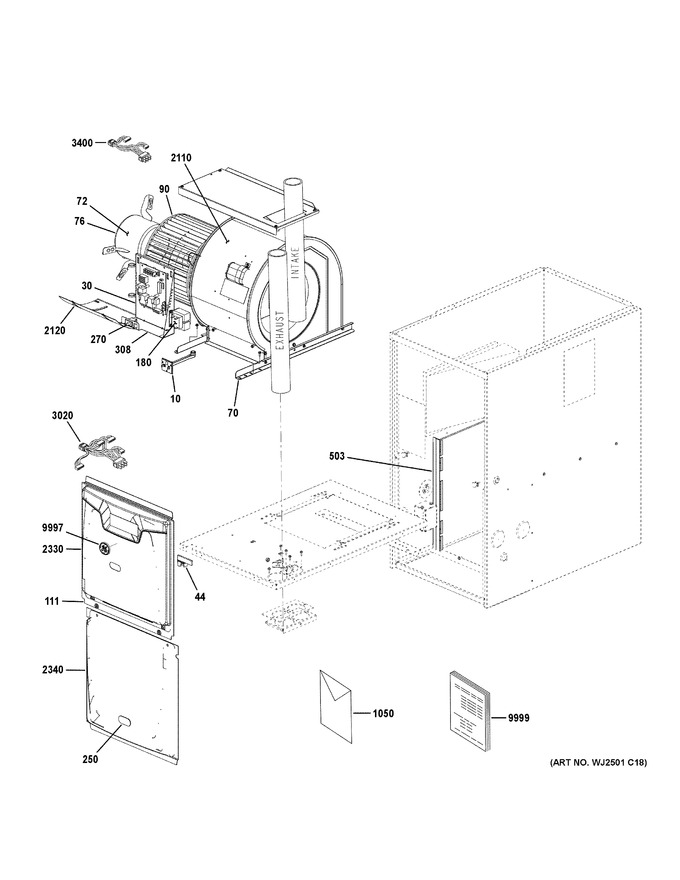

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 10 | 12P55 | Control-limit (190f) Main-(cto) |
|
- | |||||
| 30 | 15T95 | Kit-ign Cntrl (103131-06)-(cto) |
|
- | |||||
| 44 | 26W34 | Breaker Circuit-(cto) |
|
- | |||||
| 70 | 18M68 | Mount Motor-(cto) |
|
- | |||||
| 72 | 33W12 | Mtr 1/2hp Var Spd 120/240/60/1-(cto) |
|
$ 1,136.99 | |||||
| 76 | 10U25 | Motor Ctl Kit Var Spd-(cto) |
|
- | |||||
| 90 | 89J10 | Wheel-blower-(cto) |
|
- | |||||
| 111 | 74W13 | Pnl Filler Door Trim-(cto) |
|
- | |||||
| 180 | 42J32 | 42j3201 Transformer |
|
Immediately | $ 48.47 | ||||
| 250 | 27M47 | Sightglass Repl Kit-(cto) |
|
- | |||||
| 270 | 51W15 | Switch-interlock-(cto) |
|
Immediately | $ 33.78 | ||||
| 308 | 28W59 | Box-control-(cto) |
|
- | |||||
| 503 | 15P78 | Box - Flue Collector-(cto) |
|
- | |||||
| 1050 | 537870-02 | Wire Diagram Sticker-a80us2vx-(cto) |
|
- | |||||
| 2110 | 57M87 | Hsg-blwr 10x8 612256-02-(cto) |
|
- | |||||
| 2120 | 68W48 | Blwr Hsg Cutoff Plate-(cto) |
|
- | |||||
| 2330 | 73W63 | Panel-lower-(cto) |
|
- | |||||
| 2340 | 73W62 | Panel-upper-(cto) |
|
- | |||||
| 3020 | 15K19 | 105049-01 Harness, 2svs |
|
- | |||||
| 3400 | 15T91 | Harness Motor 3.0 Ecm-(cto) |
|
$ 59.99 | |||||
| 9997 | 107213-05 | Side Gea Badge |
|
- | |||||
| 9999 | 31-5000644 | Pm Service Instructions |
|
- |
