Cabinet

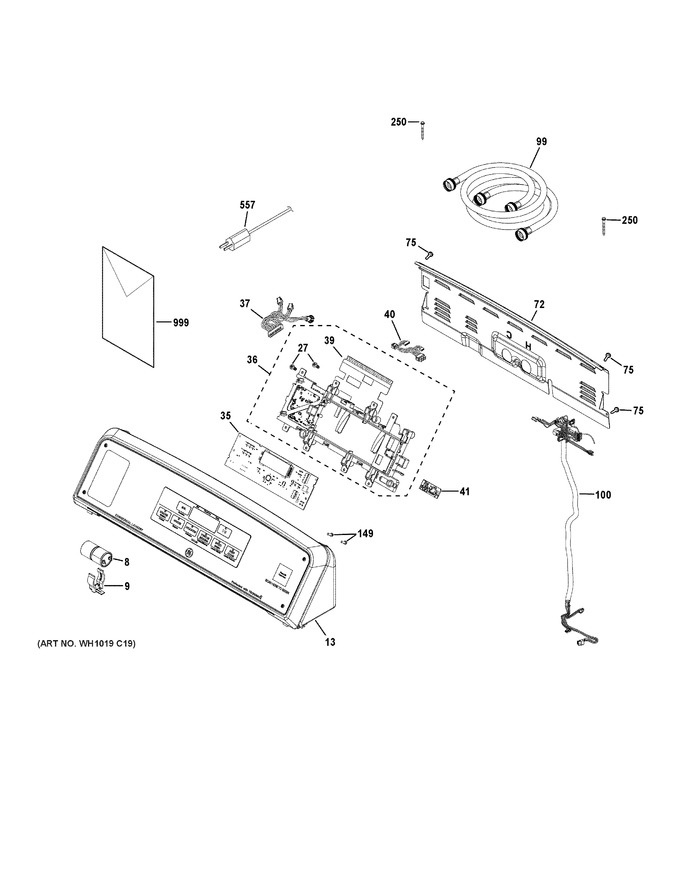

Controls & Backsplash
Optional Accessories
Top Panel & Lid
Tub & Motor
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 8 | WH12X24103 | Capacitor |
|
- | |||||
| 9 | WH16X24102 | Capacitor Bracket |
|
- | |||||
| 13 | WH13X36036 | Control Panel Tl Comm Washer White |
|
- | |||||
| 27 | WH02X10381 | Scr 4-16 H/l Pnt10 .315s |
|
- | |||||
| 35 | WH22X36079 | User Interface Board Tl Comm Washer |
|
- | |||||
| 36 | WH22X36077 | Main Control Board & Chassis W/instructi |
|
- | |||||
| 37 | WH08X36081 | Coin Box Jumper Harness |
|
- | |||||
| 39 | WH01X36082 | Control Board Shield |
|
- | |||||
| 40 | WH08X36080 | Ui To Wifi, Mc, Rj45 Jumper Harness |
|
- | |||||
| 41 | WH22X33297 | Wifi Board W/instructions |
|
- | |||||
| 72 | WH13X36037 | Real Panel |
|
- | |||||
| 75 | WE01X25535 | Scr 10-16 Gx Ihxw Q2 3/8 S Zn |
|
- | |||||
| 99 | WH41X26536 | Hose Intake & Bag Asm |
|
- | |||||
| 100 | WH08X36021 | Main Harness |
|
- | |||||
| 149 | WG03A00428 | Screw 8-18 Hi/lo 5/8 (Replaces: WR01X10196) |
|
$ 4.20 | |||||
| 250 | WR01X10634 | Scr 8-18 Ab 13/4 S Hxw |
|
- | |||||
| 557 | WH08X36038 | Power Cord |
|
- | |||||
| 999 | 49-3000301 | Pm Owners Manual |
|
- | |||||
| 999 | 31-3000303 | Pm Mini Manual And Wiring |
|
- |
