SELECT A DIAGRAM

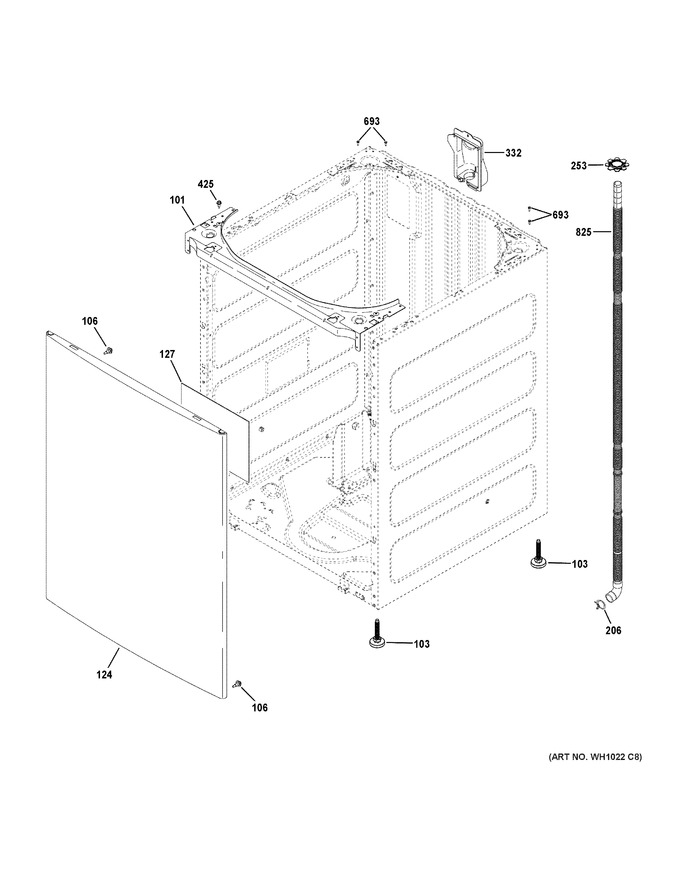

Cabinet
Controls & Backsplash
Optional Accessories
Top Panel & Lid
Tub & Motor
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 101 | WH13X30220 | Brace Front Upper 27" |
|
- | |||||
| 103 | WW03L00038 | Leg Leveling (Replaces: WH01X10594) |
|
Immediately | $ 11.25 | ||||
| 106 | WW03A00028 | Pin Alignment (Replaces: WH01X10596) |
|
$ 3.97 | |||||
| 124 | WH13X36035 | Front Panel Tl Comm Washer White |
|
- | |||||
| 127 | WH01X10630 | Damper Pad |
|
- | |||||
| 206 | WH01X10599 | Clamp |
|
- | |||||
| 253 | WH41X10282 | Stop - Drain Hose |
|
- | |||||
| 332 | WH01X36020 | Drain Hose Cover |
|
- | |||||
| 425 | WW01A00097 | Screw (Replaces: WH2X1217) |
|
$ 3.97 | |||||
| 693 | WH02X36029 | Scr 10-32 Gx 1.309 Hwx S |
|
- | |||||
| 825 | WH41X36022 | Drain Hose |
|
- |
