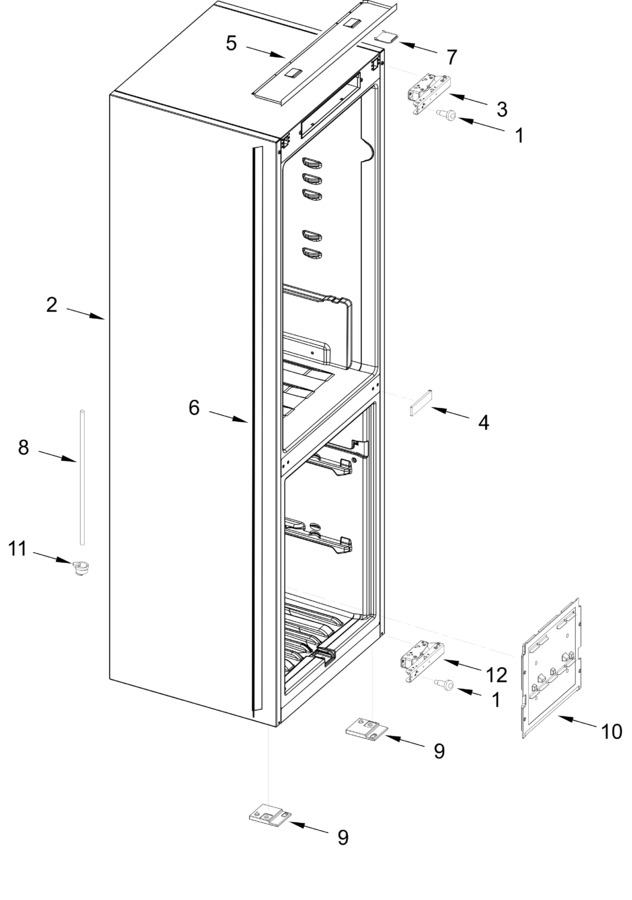

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | ARI4741983F61CAC445F12C0C1FD1B613C1 | Literature Parts |
|
- | |||||
| 2 | ARIA1BE6BF358E039F0039560B85D40D2C4 | Cabinet (not A Serviceable Part) |
|
- | |||||
| 3 | W10804396 | Hinge, Top |
|
$ 135.74 | |||||
| 4 | W10804387 | Cover, Hinge |
|
$ 27.61 | |||||
| 5 | W10508414 | Fastener, Upper |
|
- | |||||
| 6 | W11553482 | Trim, Side Panel (Replaces: W10804395) |
|
Immediately | $ 74.84 | ||||
| 7 | W10804407 | Cover, Screw |
|
$ 27.14 | |||||
| 8 | W10804414 | Tube, Drain |
|
$ 20.96 | |||||
| 9 | ARI129E74DDE7B475C8848310E16754C965 | Foot |
|
- | |||||
| 10 | W10751012 | Plenum Assembly (includes Fc Evaporator Fan) |
|
$ 340.28 | |||||
| 11 | W10804411 | Diaphram |
|
$ 29.44 | |||||
| 12 | W10804397 | Hinge, Bottom |
|
Immediately | $ 170.11 | ||||
| 13 | W11622534 | Screw (Replaces: W11023246) |
|
- | |||||
| W10642999 | Foot, Left Hand |
|
$ 29.15 | ||||||
| W11107107 | Installation Instructions |
|
- | ||||||
| W11107109 | Use And Care Guide |
|
- | ||||||
| W10642997 | Foot, Right Hand |
|
$ 28.95 |
