Cabinet Parts


Freezer Door Parts


Freezer Shelf Parts


Liner Parts


Refrigerator Door Parts


Refrigerator Shelf Parts


Unit Parts

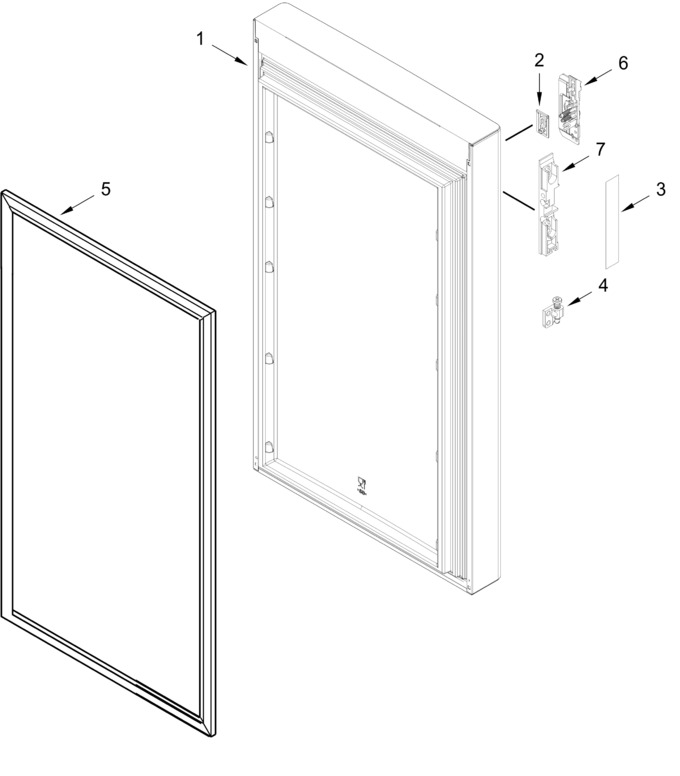

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10753516		Door, Refrigerator				$ 770.58
2	W10556651		Spacer, Door Panel				$ 27.32
3	W11727835		Cover   (Replaces: W10804389)				$ 23.28
4	ARIDB5EB84117D06047C97C9A0191B5FFFE		Support		Appelez-nous	-
5	W11625078		Gasket, Door   (Replaces: W10804398)				$ 245.67
6	ARID98FF84505108205858018C7012E2C4E		Bracket, Door Panel Mounting		Appelez-nous	-
7	ARIC270FC3FFFE599220096C94040227458		Bracket, Door Panel Adjusting		Appelez-nous	-
	ARI7C4B781E09F4C135E8A56A812FBF5A4D		Following Parts Not Illustrated		Appelez-nous	-
	W10775677		Hardware, Installation				$ 84.55
	W11416744		Bracket, Door Panel Mounting (left Hand)   (Replaces: W10748071)				$ 87.08
	W10748078		Bracket, Door Panel Mounting (right Hand)				$ 70.57
	W10748034		Support (left Hand)				$ 70.08
	W10748042		Support (right Hand)				$ 70.58
	W11416054		Bracket, Door Panel Adjusting (left Hand)   (Replaces: W10747767)			Immediately	$ 87.08
	W11254157		Bracket, Door Panel Adjusting (right Hand)   (Replaces: W10747766)				$ 72.01

    View Diagram in Separate Window       Print Part List
