Cabinet Parts


Freezer Door Parts


Freezer Shelf Parts


Liner Parts


Refrigerator Door Parts


Refrigerator Shelf Parts


Unit Parts

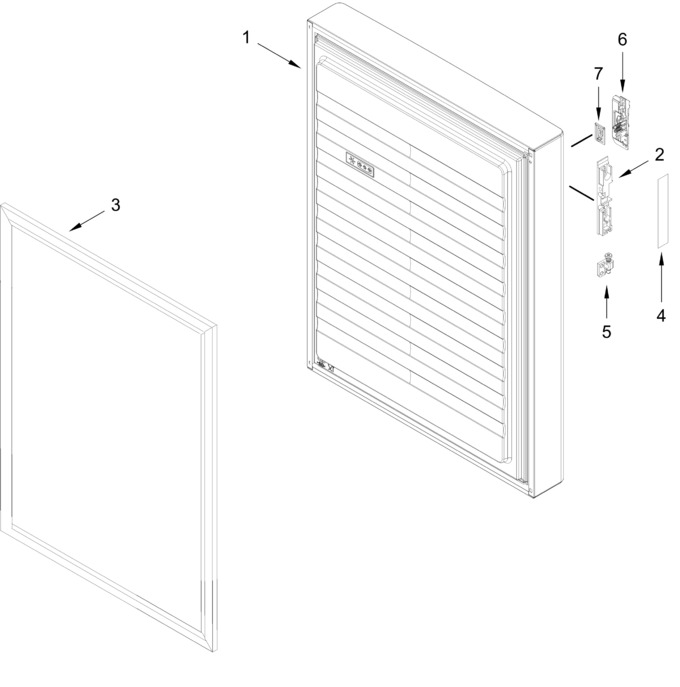

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W11489499		Door, Freezer				$ 286.86
2	ARIC270FC3FFFE599220096C94040227458		Bracket, Door Panel Adjusting		Appelez-nous	-
3	W11675691		Gasket, Door   (Replaces: W11403780)		Appelez-nous	-
4	W11727835		Cover   (Replaces: W10804389)				$ 20.95
5	ARIDB5EB84117D06047C97C9A0191B5FFFE		Support		Appelez-nous	-
6	ARID98FF84505108205858018C7012E2C4E		Bracket, Door Panel Mounting		Appelez-nous	-
7	W10556651		Spacer, Door Panel				$ 24.59
	W11416054		Bracket, Door Panel Adjusting (left Hand)   (Replaces: W10747767)			Immediately	$ 78.37
	W11416744		Bracket, Door Panel Mounting (left Hand)   (Replaces: W10748071)				$ 78.37
	W10748078		Bracket, Door Panel Mounting (right Hand)				$ 63.51
	W10748034		Support (left Hand)				$ 63.07
	W10748042		Support (right Hand)				$ 63.52
	W11254157		Bracket, Door Panel Adjusting (right Hand)   (Replaces: W10747766)				$ 64.81

    View Diagram in Separate Window       Print Part List
