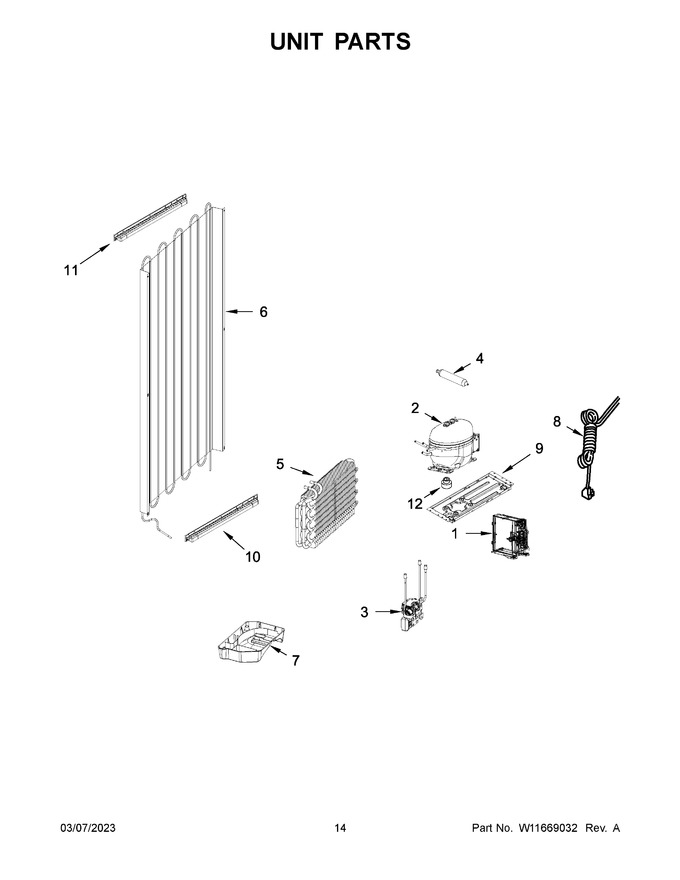

Cabinet Parts


Freezer Door Parts


Freezer Shelf Parts


Liner Parts


Refrigerator Door Parts


Refrigerator Shelf Parts


Unit Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10729632		Inverter			Immediately	$ 348.89
2	W11381806		Compressor   (Replaces: W11382792)			Immediately	$ 650.12
3	W11381660		Valve, Refrigerant			Immediately	$ 129.10
4	W11109499		Drier (service Drier Without Dye) (also Order The Following Lokring Parts)   (Replaces: W10805035)			Immediately	$ 35.21
5	W11382107		Evaporator   (Replaces: W11381658)			Immediately	$ 353.59
6	W11675693		Condenser   (Replaces: W11135268)		Appelez-nous	-
7	W10756248		Tray, Evaporation				$ 74.79
8	W10732868		Cord, Power			Immediately	$ 97.77
9	W11361031		Mounting Plate, Compressor		Appelez-nous	-
10	W11373098		Bottom Protection, Condenser		Appelez-nous	-
11	W11367732		Top Protection, Condenser		Appelez-nous	-
12	W11668736		Grommet, Compressor		Appelez-nous	-
NI	W10720016		Thermofuse And Bimetal				$ 174.95
NI	NP		Following Parts Not Illustrated		Appelez-nous	-
