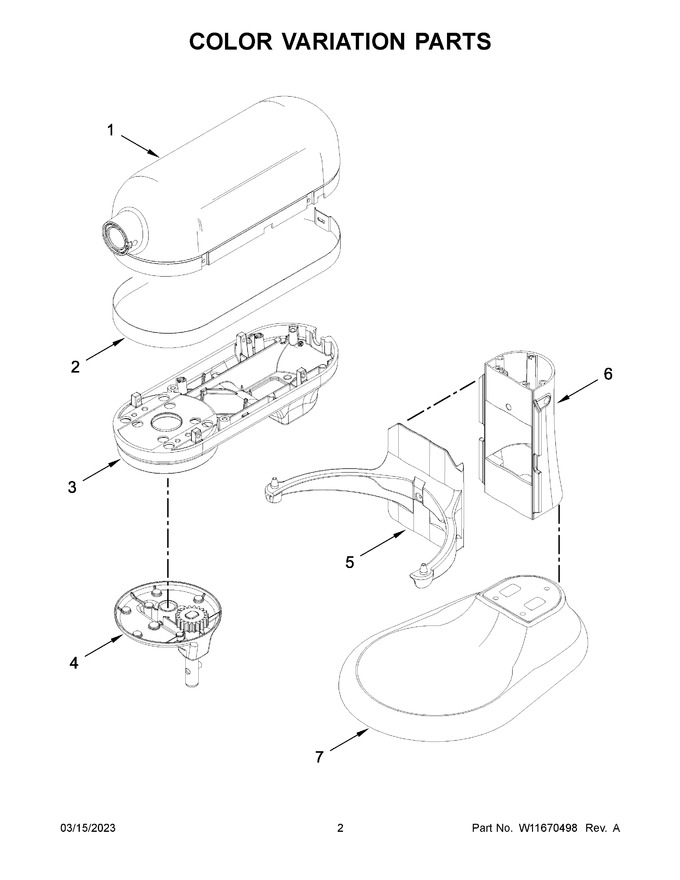

02 - Color Variation Parts
03 - Case, Gearing And Planetary Unit Parts
04 - Base And Pedestal Unit Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W11123176 | Motor Housing (black Matte) |
|
- | |||||
| 2 | W11755731 | Trim Band (bright Aluminum) (Replaces: W11420346) |
|
- | |||||
| 3 | W11520136 | Lower Gearcase (black Matte) |
|
- | |||||
| 4 | W11513622 | Planetary (black Matte) |
|
- | |||||
| 5 | W11328664 | Bowl Support And Pins (black Matte) |
|
- | |||||
| 6 | W11123140 | Column And Pins (black Matte) |
|
- | |||||
| 7 | W11123131 | Base And Foot Assembly (black Matte) |
|
- | |||||
| 1A | W11255425 | Motor Housing (blue Velvet) |
|
- | |||||
| 1B | W10327951 | Motor Housing (contour Silver) |
|
$ 71.00 | |||||
| 1C | 9705300 | Motor Housing (empire Red) |
|
$ 88.20 | |||||
| 1D | W11520729 | Motor Housing (mineral Water Blue) |
|
- | |||||
| 3A | W11520141 | Lower Gearcase (blue Velvet) |
|
- | |||||
| 3B | W11520143 | Lower Gearcase (contour Silver) |
|
- | |||||
| 3C | W11520142 | Lower Gearcase (empire Red) |
|
- | |||||
| 3D | W11520127 | Lower Gearcase (mineral Water Blue) |
|
- | |||||
| 4A | W11513618 | Planetary (blue Velvet) |
|
- | |||||
| 4B | W11513269 | Planetary (contour Silver) |
|
$ 75.33 | |||||
| 4C | W11513270 | Planetary (empire Red) |
|
$ 77.95 | |||||
| 4D | W11513631 | Planetary (mineral Water Blue) |
|
- | |||||
| 5A | W11255416 | Bowl Support And Pins (blue Velvet) |
|
- | |||||
| 5B | W10327966 | Bowl Support And Pins (contour Silver) |
|
- | |||||
| 5C | 9705360 | Bowl Support And Pins (empire Red) |
|
- | |||||
| 5D | W11520075 | Bowl Support And Pins (mineral Water Blue) |
|
- | |||||
| 6A | W11255413 | Column And Pins (blue Velvet) |
|
- | |||||
| 6B | W10328003 | Column And Pins (contour Silver) |
|
- | |||||
| 6C | 9705324 | Column And Pins (empire Red) |
|
- | |||||
| 6D | W11520107 | Column And Pins (mineral Water Blue) |
|
- | |||||
| 7A | W11255409 | Base And Foot Assembly (blue Velvet) |
|
- | |||||
| 7B | W10328017 | Base & Foot Assembly (contour Silver) |
|
- | |||||
| 7C | 9705348 | Base & Foot Assembly (empire Red) |
|
- | |||||
| 7D | W11520052 | Base And Foot Assembly (mineral Water Blue) |
|
- |
