SELECT A DIAGRAM

01 - Cover Sheet


02 - Color Variation Parts

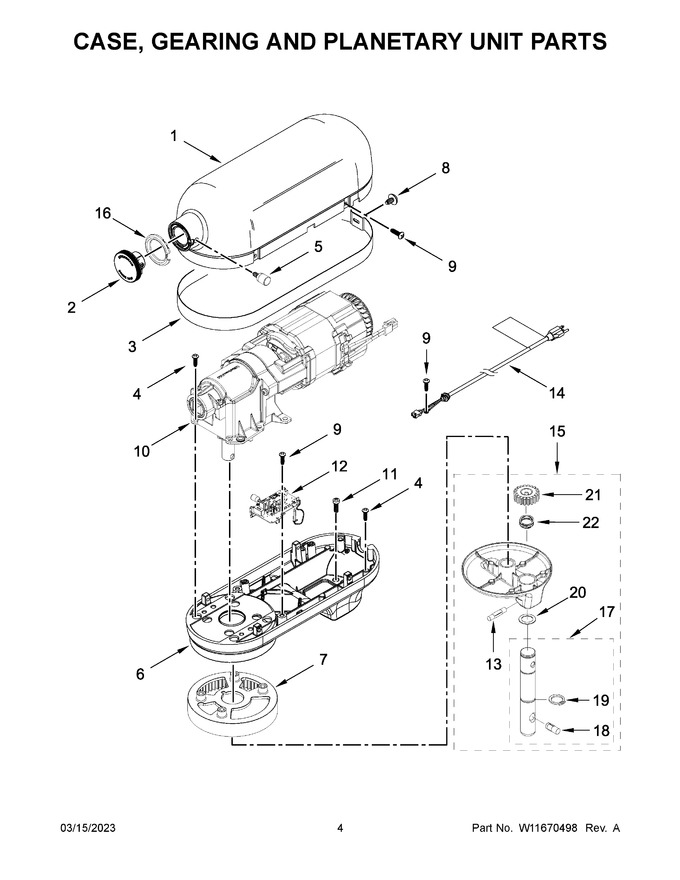

03 - Case, Gearing And Planetary Unit Parts


04 - Base And Pedestal Unit Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	NP		Following Parts Not Illustrated		Appelez-nous	-
2	W11677160		Cap, Attachment Hub   (Replaces: W11618094)		Appelez-nous	-
3	NP		Following Parts Not Illustrated		Appelez-nous	-
4	W10914506		Screw   (Replaces: W10351843)				$ 4.59
5	W11677196		Thumb Screw (black)   (Replaces: W11521861)		Appelez-nous	-
6	NP		Following Parts Not Illustrated		Appelez-nous	-
7	W11647948		Gear, Ring And Plate Assembly   (Replaces: W11454895)		Appelez-nous	-
8	WP3196170		Screw   (Replaces: 3400617)				$ 7.55
9	WP3400814		Screw   (Replaces: 3400814)				$ 4.62
10	W11647949		Motor,120 Volt Assembly   (Replaces: W11523176)			Immediately	$ 220.57
11	W10913677		Screw   (Replaces: 3400200)				$ 4.64
12	W11672012		Control Assembly, 120 Volt   (Replaces: W11503693)				$ 88.75
13	WPW10234531		Pin, Groove   (Replaces: W10234531)			Immediately	$ 5.29
14	W11677162		Cord, Power (black)   (Replaces: W11459236)				$ 29.38
15	NP		Following Parts Not Illustrated		Appelez-nous	-
16	W11123129		Ring, Attachment Hub   (Replaces: 9706141)				$ 19.69
17	W11647951		Shaft, Agitator   (Replaces: W11531546)		Appelez-nous	-
18	W11664709		Pin, Groove   (Replaces: W11533778)			Immediately	$ 6.75
19	WP9703680		Clip, Retaining   (Replaces: 9703680)			Immediately	$ 4.99
20	W10854966		Washer   (Replaces: 8533910)				$ 4.94
21	W11647950		Gear, Pinion   (Replaces: W11553110)		Appelez-nous	-
22	W11649170		Spring, Wave   (Replaces: W11537260)		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
